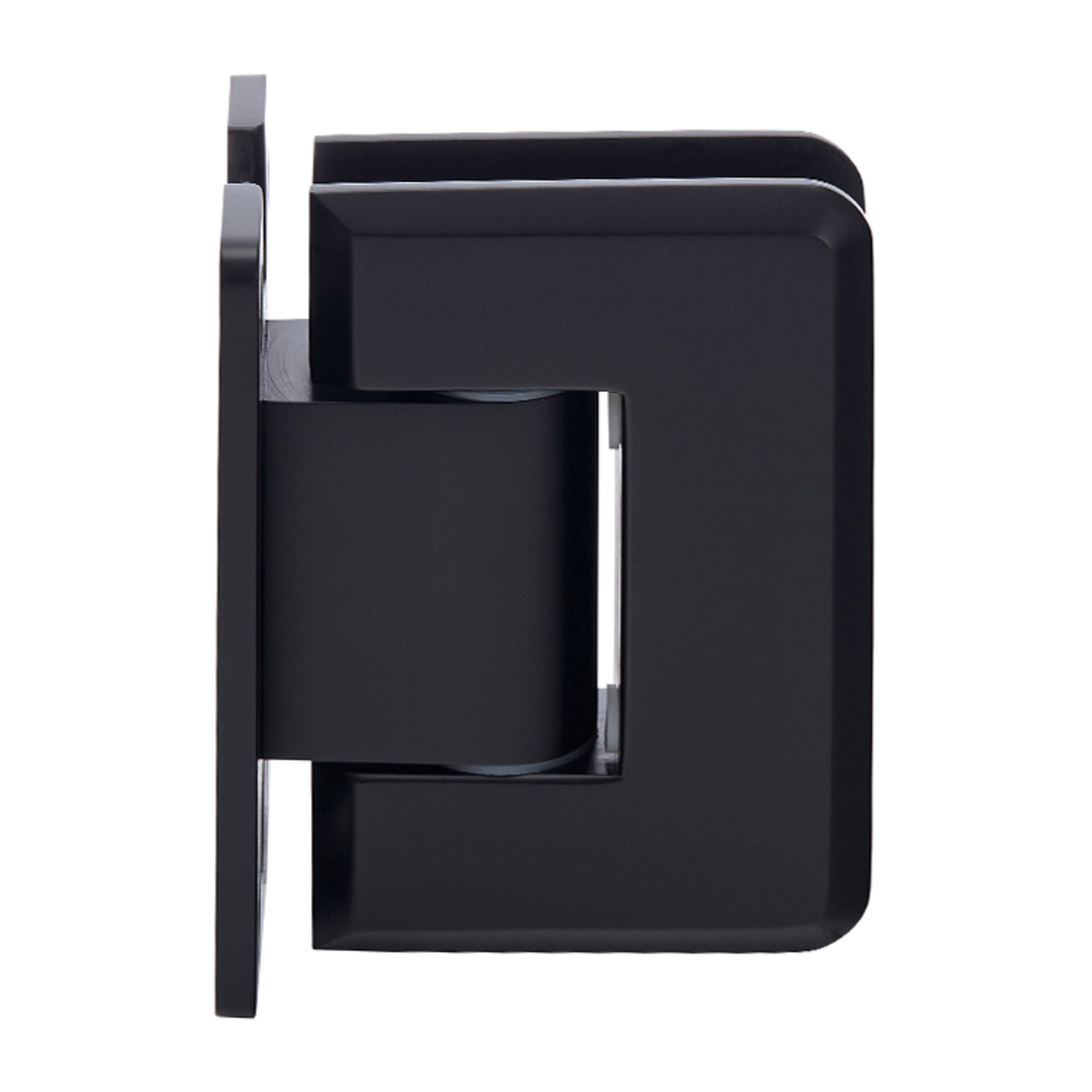

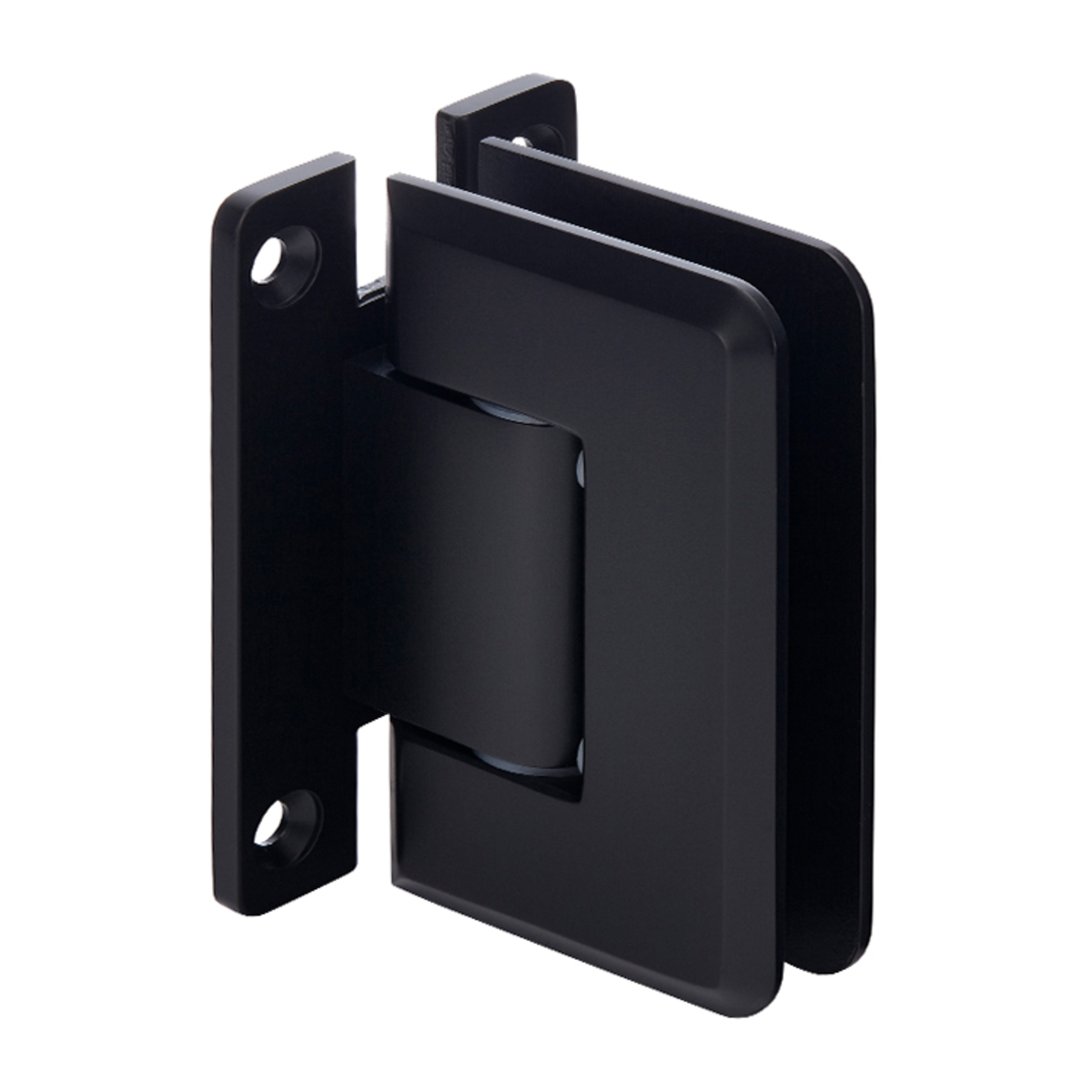

CRL P1N337MBL Matte Black Pinnacle 337 Adjustable Wall Mount 'H' Hinge Back PlateC.R. Laurence P1N337MBL Matte Black Pinnacle 337 Series Adjustable Wall Mount 'H' Back Plate Hinge delivers an innovative solution for modern shower door installations. This hinge is designed for versatility, allowing for adjustment to any angle up to 90 degrees without the need to remove the door. Once installed, simply loosen the Allen set screws to achieve the desired closed position, ensuring a precise fit every time. Crafted from solid brass and available in a stunning matte black finish, the Pinnacle hinge not only enhances aesthetic appeal but also provides robust functionality. It accommodates 5/16" to 1/2" tempered glass and supports a maximum door weight of up to 120 lbs. when using three hinges, making it ideal for various shower door applications. The self-centering feature ensures that the door returns to the desired position within 15 degrees of closure, while the adjustable wall mount 'H' back plate offers added convenience. Each hinge comes complete with gaskets, screws, and glass fabrication dimensions. Backed by a three-year warranty, the C.R. Laurence Pinnacle hinge is a reliable choice for both residential and hotel shower setups, combining style and durability with effortless installation and adjustment.
Matte Black Pinnacle 337 Series Adjustable Wall Mount 'H' Back Plate Hinge
- Adjustable to Any Angle Up To 90 Degree Without Removing Door
- Available in Several Beautiful Finishes
- Three Year Warranty

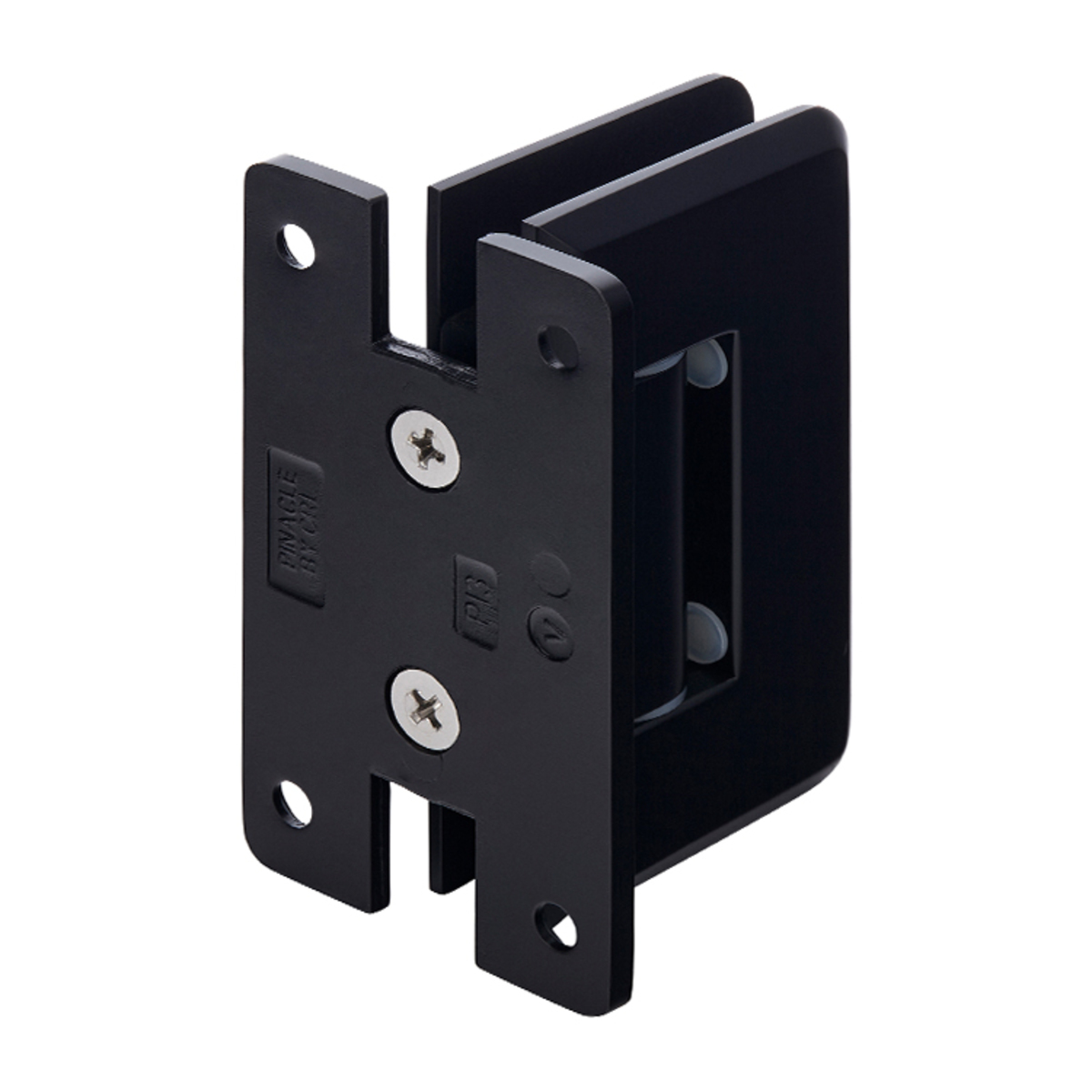

- Adjustable Wall Mount 'H' Back Plate
- Use Monolithic Tempered Glass
CRL Adjustable Pinnacle Series Hinges take our popular Pinnacle Hinge to a new level. Adjustment to accommodate the desired angle (up to 90 degree) is done after the door is installed. Once the door is hung, simply loosen the Allen set screws and turn the door to the desired closed position. By merely tightening the Allen screws your door will self-center to the desired closed position. The door can swing 90 degree inward and also 90 degree outward (adjusting angle from factory set position will reduce 90 degree swing in that direction). For doors pulling outwards only (using a clear door jamb), you can adjust the hinge to close 5 degree inside the shower area, thus having the door close snugly against the jamb.
Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).
Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Adjustable to any angle up to 90 degree without having to take door down.
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree out (at factory set position).
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions. Cat. No. P1N13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.
Replacement Hardware:
P102** - Wall plate replacement screws
P615** - Cover plate replacement screws
NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details.
Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
5 Degree Pre- Set: No
Adjustable: Yes
Back Plate: 'H'
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Edge Profile: Beveled
Finish/ Color:: Matte Black
Glazing Thickness: 5/16 in. To 1/2 in. (8 mm To 12 mm)
Height: 3-1/2 in. (89 mm)
Material: Brass
Maximum Clamping Screw Torque: 60-70 lbf.in (677.9-791 cN.m)
Maximum Door Weight - 2 Hinges: 80 lbs. (36.3 kg)
Maximum Door Weight - 3 Hinges: 120 lbs. (54.4 kg)
Maximum Door Width - 2 Hinges: 28
Maximum Door Width - 3 Hinges: 32
Mounting Type: Wall Mount
Self- Centering: Yes
Series: Pinnacle
Shipping Limitations: None
Width: 2-3/16 in. (56 mm)
