CRL P4BS12S Frameless Glass 3' P-Style Brushed Stainless Single Door Kit - No LockC.R. Laurence P4BS12S Dry Glazed Frameless Glass 3'-0" P-Style Brushed Stainless Single Door Only Kit offers a sleek and modern solution for your entrance needs. Designed for use with 1/2" (12 mm) tempered glass, this door kit features patented dry glaze rails that simplify installation while ensuring a secure fit. The brushed stainless steel finish elevates the aesthetic, available also in polished stainless or anodized options in clear, black, or bronze. This kit includes all the essential components, such as two DR4S Series dry glaze rails, a Jackson® overhead concealed door closer, a pull handle, and a bottom pivot assembly. With a net door width of 35-3/4" (908 mm), it is perfect for a variety of commercial and residential applications. The door operates smoothly, holding open at a 90-degree angle for convenience. For maximum flexibility, complete entrance kits are available, which include a header prepped for the door closer. While thresholds must be ordered separately, this kit is designed to meet GANA guidelines for maximum door sizes, ensuring compliance and reliability. Note that periodic maintenance is recommended to maintain the finish of the stainless steel components. Enhance your space with the durability and elegance of C.R. Laurence products.
Dry Glazed Frameless Glass 3'-0" P-Style Brushed Stainless Single Door Only Kit - without Lock
- Door Only or Complete Entrance Kits Available
- 3'-0" Single Door or 6'-0" Double Door Kits for Use with 1/2" (12 mm) Tempered Glass
- Brushed or Polished Stainless Steel, Clear or Black/Bronze Anodized Finishes Net Door Width is 35-3/4" (908 mm)
CRL offers Dry Glazed Frameless Glass Door Kits for single or double door entrances in door only or complete entrance kits. All you supply is the 1/2" (12 mm) tempered glass.
This kit utilizes our patented dry glaze rails. It is a

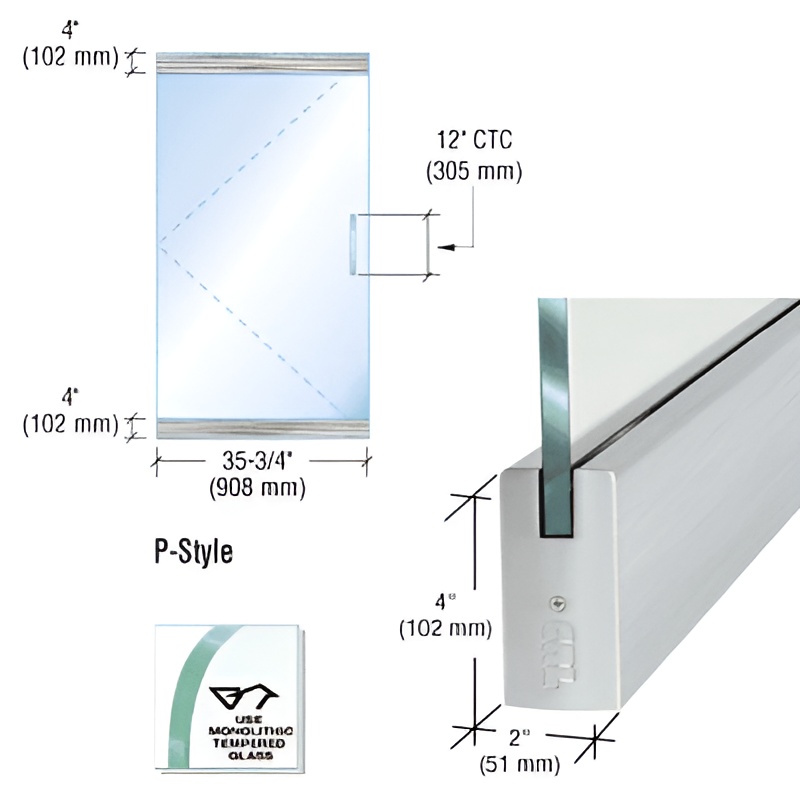

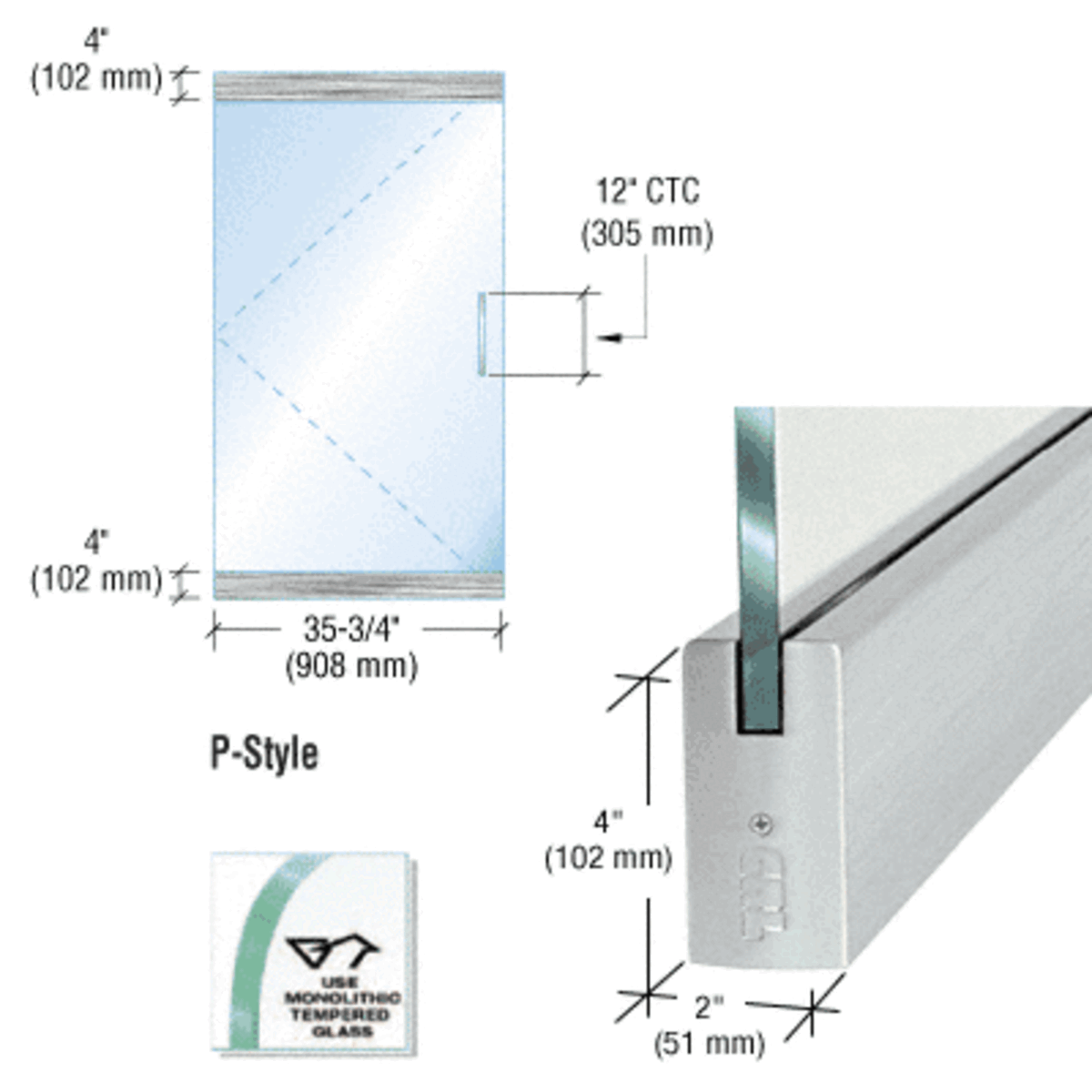

'P' Style Door Type in brushed or polished stainless steel, clear or black/bronze anodized finishes. It works with 1/2" (12 mm) clear fully tempered glass, and requires only two 5/8" (16 mm) holes at 12" (305 mm) on center for the pull handle. Net door width is 35-3/4" (908 mm).
Door Only Kits include Rails, Jackson® Overhead Concealed Door Closer with Bottom Pivot, and a Pull Handle. Complete Entrance Kits also include a 1-3/4" x 4" (45 x 102 mm) Header prepped for a Jackson® Overhead Concealed Door Closer. All Kits are also available with locks in the bottom rails. Thresholds are also available, but must be ordered separately.
NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.
Without Lock Kits Include:
Two DR4S Series Dry Glaze Rails
One Model 20104M20 Jackson® Overhead Door Closer
One CRL8010AS Closer Arm
One CRL8010DP Bottom Pivot
One CRL8010FS Mounting Clip
One Model CM12X12 Pull Handle
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Configuration: Single
Door Type: P Style Glass Door
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 1/2 in. (12 mm)
Hold Open: 90
Material: Aluminum
Pivot Setback: 2 3/4
Shipping Limitations: None
