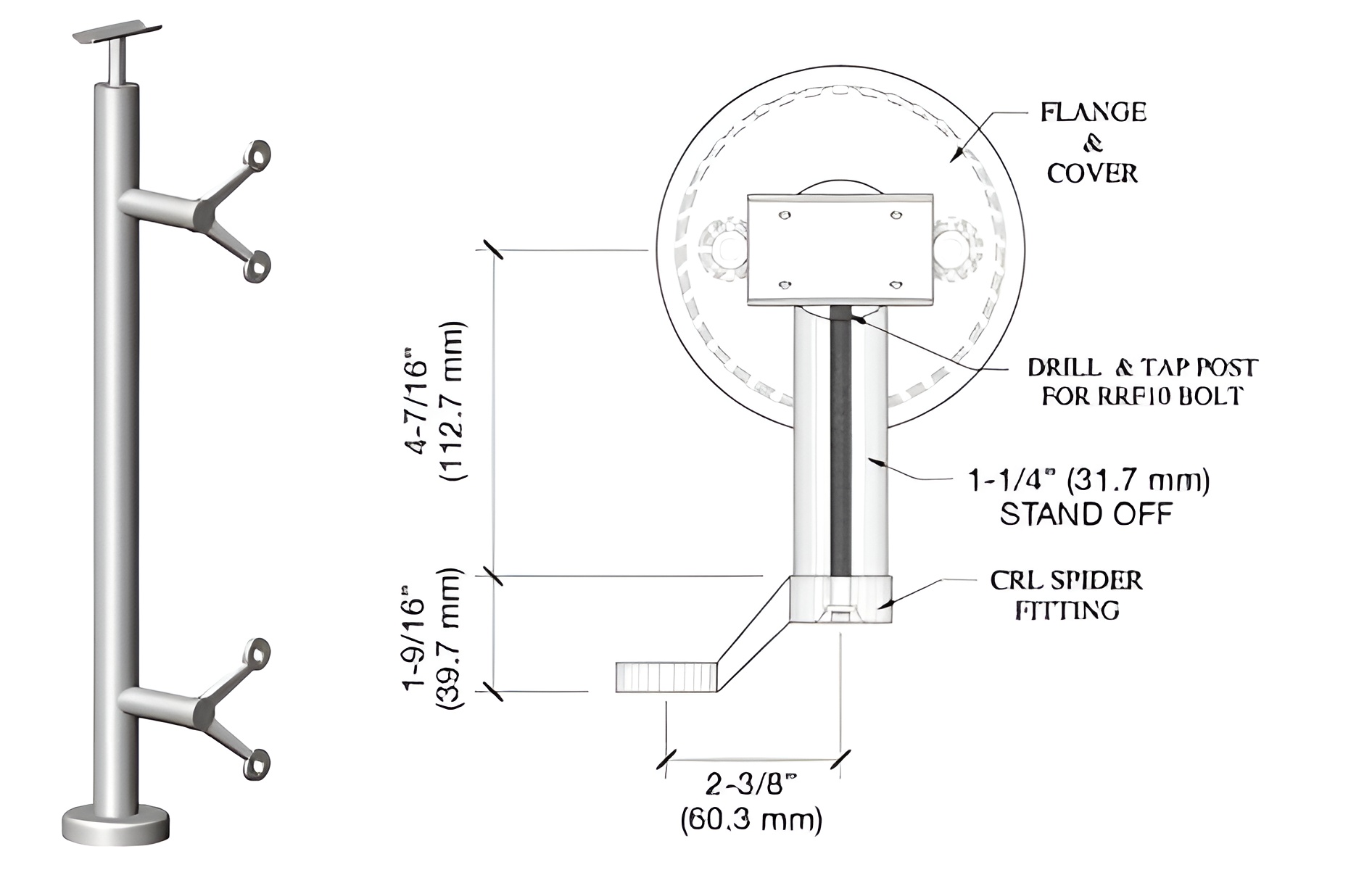

C.R. Laurence P642EBS Brushed Stainless 42" P6 Series Spider End Post Railing Kit provides a robust and stylish solution for guard rail and hand rail applications. Crafted from durable Schedule 40 1.9" (48 mm) diameter stainless steel tubing, this railing kit is designed to support horizontal tubing of either 1-1/4" (32 mm) or 1-1/2" (38 mm) in diameter. Accommodating glass panels ranging from 1/2" (12 mm) to 1" (25 mm) thick, it is essential to note that glass attachments are sold separately, ensuring you can customize your setup according to project needs. The kit includes a base plate, welded top saddle, and factory-mounted fixed glass spider fittings, offering everything needed for a secure installation. Standard post heights of 36" (914 mm) and 42" (1.07 m) provide versatility, with custom heights available upon special order. The brushed stainless steel finish not only enhances durability but also complements a variety of architectural styles. For ease of installation, remember to specify Cat. No. PRS1032 for the screws required to attach the top rail to the saddle. With its combination of strength and aesthetic appeal, the C.R. Laurence P642EBS is an excellent choice for modern railing systems.

Brushed Stainless 42" P6 Series Spider End Post Railing Kit

• For Use with 1/2" (12 mm) to 1" (25 mm) Thick Panels
• Glass Attachments Sold Separately
• Two Standard Stainless Finishes, with Custom Powder Paint Finishes Also Available
• Standard Post Heights are 36" (914 mm) and 42" (1.07 m)
• Custom Post Heights Available on Special Order

Stainless Steel Advisory:

Resources

• Architectural Glass Railing Systems and Hardware Catalog
• CRL Stainless Steel Disclaimer
• P-Series Post Railing Installation Instructions
• P-Series Post Railing Specification
• P-Series Post Railing System Quote Request Form
• P-Series Post Railing Systems Engineering Report 01-21-2025
• P-Series Post Railing Systems Engineering Report 04-03-2019
• P6 Series Post Railing System CAD Drawings.dwg
• P6 Series Post Railing System CAD Drawings.pdf
• Windscreen and Pool Fencing Systems Product Information
• Windscreen and Pool Fencing Systems Product Information
