CRL P7933 1" Screen Table Jig Clips - Set of 4

Your Price: $34.07

Retail Price:$40.78

Your Savings:$6.71(16%)

CRL P7933 1" Screen Table Jig Clips securely hold screen frames, ensuring precision and preventing bowing during installation. Set of four.

Part Number : CRL_P7933

Availability: 14 In Stock

Quantity

Description

CRL P7933 1" Screen Table Jig Clips - Set of 4

C.R. Laurence P7933 1" Screen Table Jig Clips - 4 provide an essential solution for fabricating window screens with precision and ease. This set includes four 1" (25 mm) jig clips designed to hold the screen frame firmly and squarely in place during the screen wire installation process. By keeping the frame secure, these clips effectively prevent common issues such as "hourglass" bow-in, ensuring a professional finish every time. The CRL Screen Table Jig Set features six extruded aluminum jig bars-three stationary and three floating-to accommodate various screen sizes. The included bars are tailored to fit a standard table setup, with a short 42" (1.06 m) bar and two longer bars that can span up to 96" (2.44 m) when connected with a steel splice, which is also provided. To maximize effectiveness, the kit includes 12 additional 3/4" (19 mm) jig clips, allowing for versatile application based on screen dimensions. This innovative system simplifies the process of screen fabrication, making it an indispensable tool for both building professionals and dedicated DIYers. Plus, the jig clips can be shipped via UPS, ensuring convenient delivery.

1" Screen Table Jig Clips - 4

Set of Four 1" (25 mm) Jig Clips
Allows Screen Frame to be Held Firmly and Squarely in Place While Installing Screen Wire

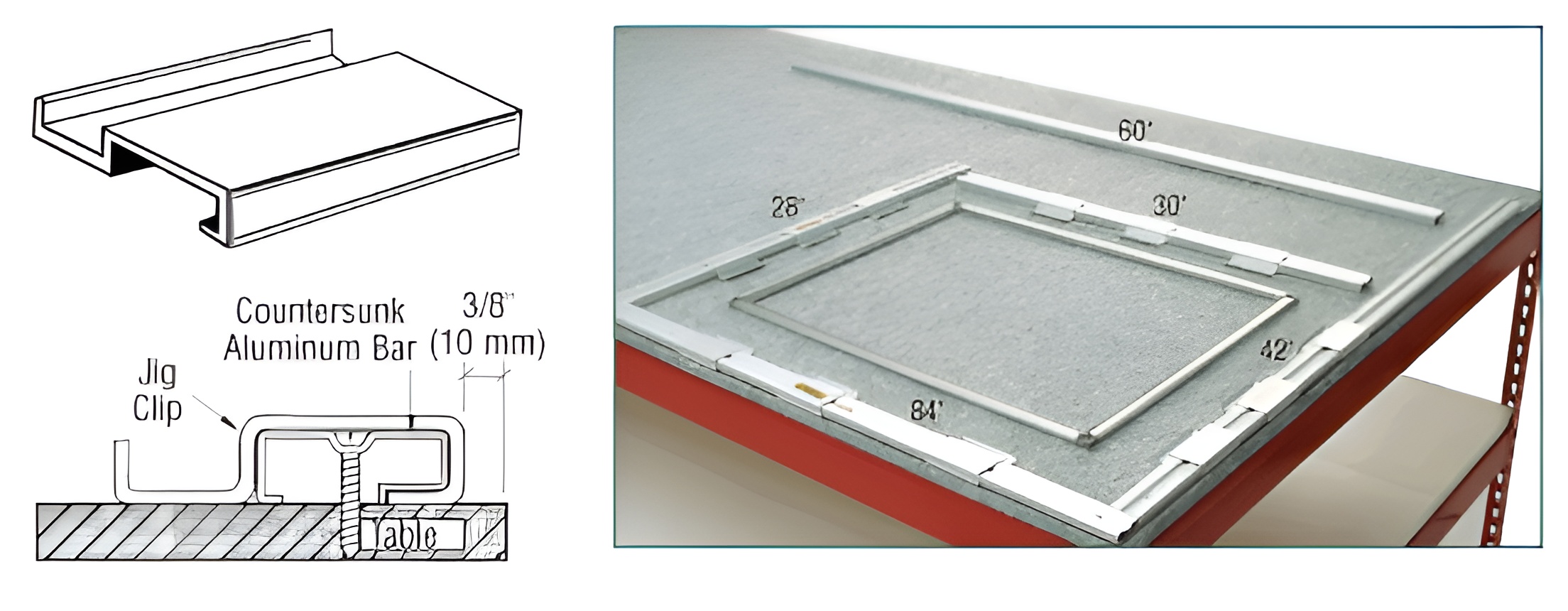

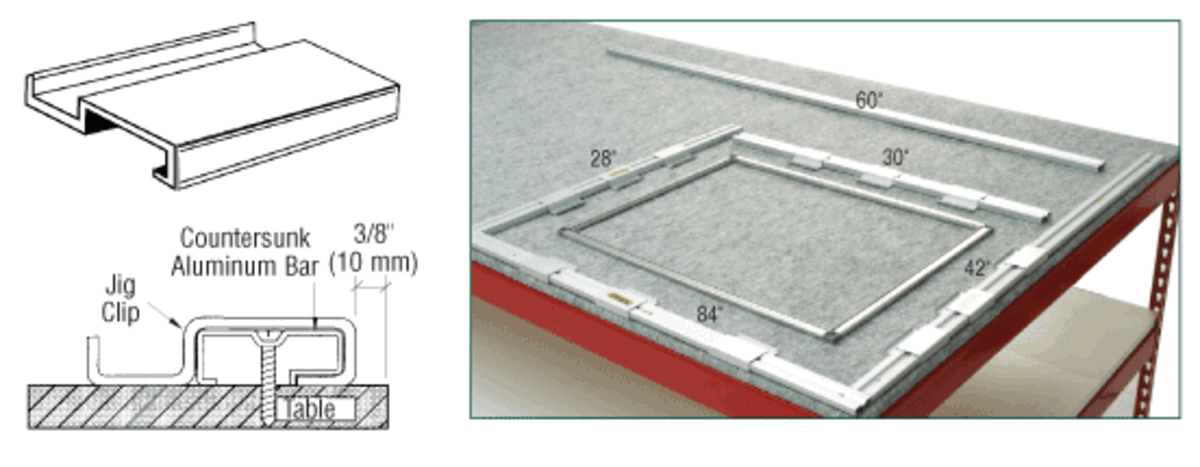

The CRL Screen Table Jig Set makes fabricating window screens easier because it keeps the screen frame square and prevents "Hour Glass" bow-in. The Set has six extruded aluminum Jig Bars. Three Bars are floaters, and three are stationary. One is 42" (1.06 m) for the short end of the table, and two are to be mounted end to end with a steel splice (included) for the 96" (2.44 m) long side of the table. This allows the Jig Set to ship standard U.P.S.

The Kit also includes 12 each 3/4" (19 mm) Jig Clips. Once the two Stationary Bars are mounted to the table, slip three Clips onto each side. Pick the appropriate floater bar lengths (depending on screen size), and slip three Clips onto each. Lay the frame onto the table so that the frame engages all 12 Clips. Arrange the Clips on each Bar so that one Clip is at the far ends of the screen frame, and one Clip is in the middle of the frame. This center Clip does the work by holding the frame as straight as the Jig Bar and preventing bow in. Extra Jig Clips are available for either 3/4" (19 mm) or 1" (25 mm) frame.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Attributes

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Jig Clip Size: 1"

Pack Quantity: 4

Shipping Limitations: None
