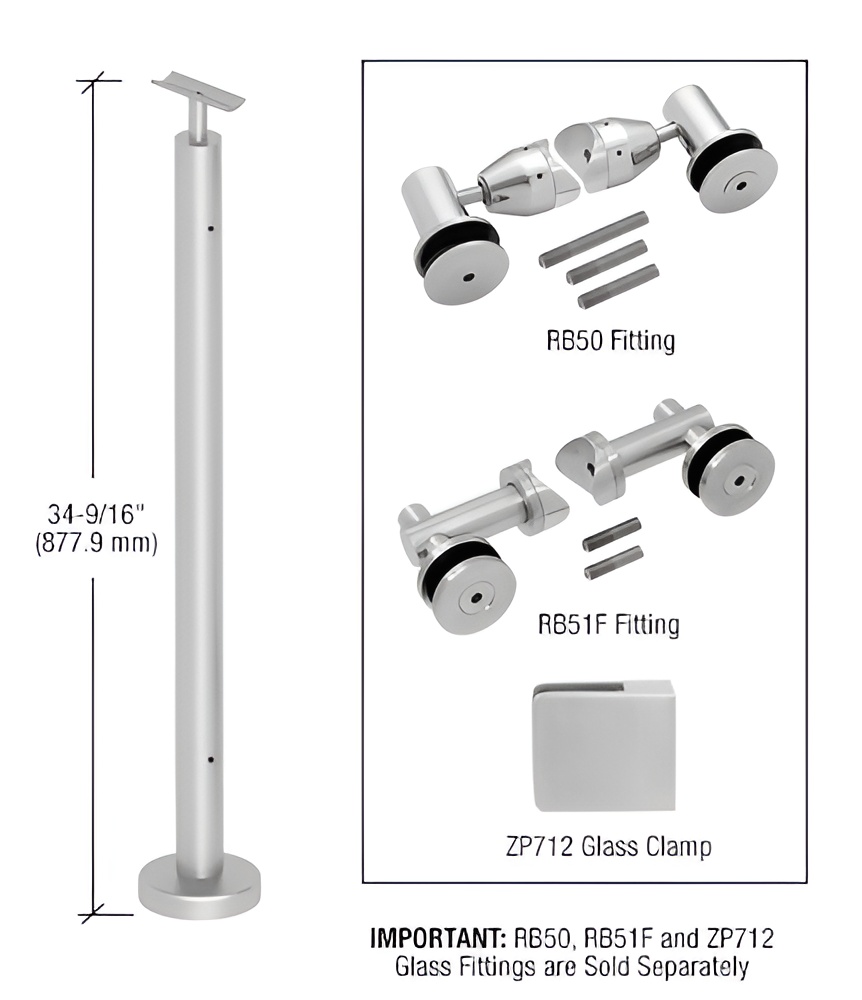

C.R. Laurence P7F36CBS Brushed Stainless 36" P7 Series 180 Degree Center Post Railing Kit No Fittings is designed to elevate both safety and aesthetics in guard rail and hand rail applications. Constructed from durable Schedule 40 1.9" (48 mm) diameter stainless steel tubing, this railing kit provides robust support for 1/2" (12 mm) to 1" (25 mm) thick glass panels, ensuring a secure installation. The P7 Series features standard post heights of 36" (914 mm) and 42" (1.07 m), with custom heights available to fit specific project requirements. Each kit includes a base plate, base cover flange, and a welded top saddle, creating a seamless integration into various architectural environments. The brushed stainless steel finish adds a contemporary touch, while custom powder paint finishes offer versatility for unique design preferences. For complete functionality, please note that glass attachment fittings are sold separately. Additionally, the base plate has a diameter of 4-3/4" (121 mm) and includes two mounting holes for easy installation. The P7F36CBS is not only designed for aesthetic appeal but also emphasizes maintenance, urging periodic upkeep to retain its factory finish. Overall, this railing kit is an excellent choice for professionals seeking reliability and style in their architectural projects.

Brushed Stainless 36" P7 Series 180 Degree Center Post Railing Kit No Fittings

• For Use with 1/2" (12 mm) to 1" (25 mm) Thick Panels
• Glass Attachment Fittings Sold Separately
• Standard Post Heights are 36" (914 mm) and 42" (1.07 m)
• Custom Post Heights Also Available
• Two Standard Stainless Finishes, with Custom Powder Paint Finishes Also Available

Stainless Steel Advisory:

Resources

• Architectural Glass Railing Systems and Hardware Catalog
• CRL Stainless Steel Disclaimer
• P-Series Post Railing Installation Instructions
• P-Series Post Railing Specification
• P-Series Post Railing System Quote Request Form
• P-Series Post Railing Systems Engineering Report 01-21-2025
• P-Series Post Railing Systems Engineering Report 04-03-2019
• P7 Series Post Railing System CAD Drawings.dwg
• P7 Series Post Railing System CAD Drawings.pdf
• Windscreen and Pool Fencing Systems Product Information
