CRL P7F42CBS Brushed Stainless 42" P7 Series 180 Center Post Railing Kit

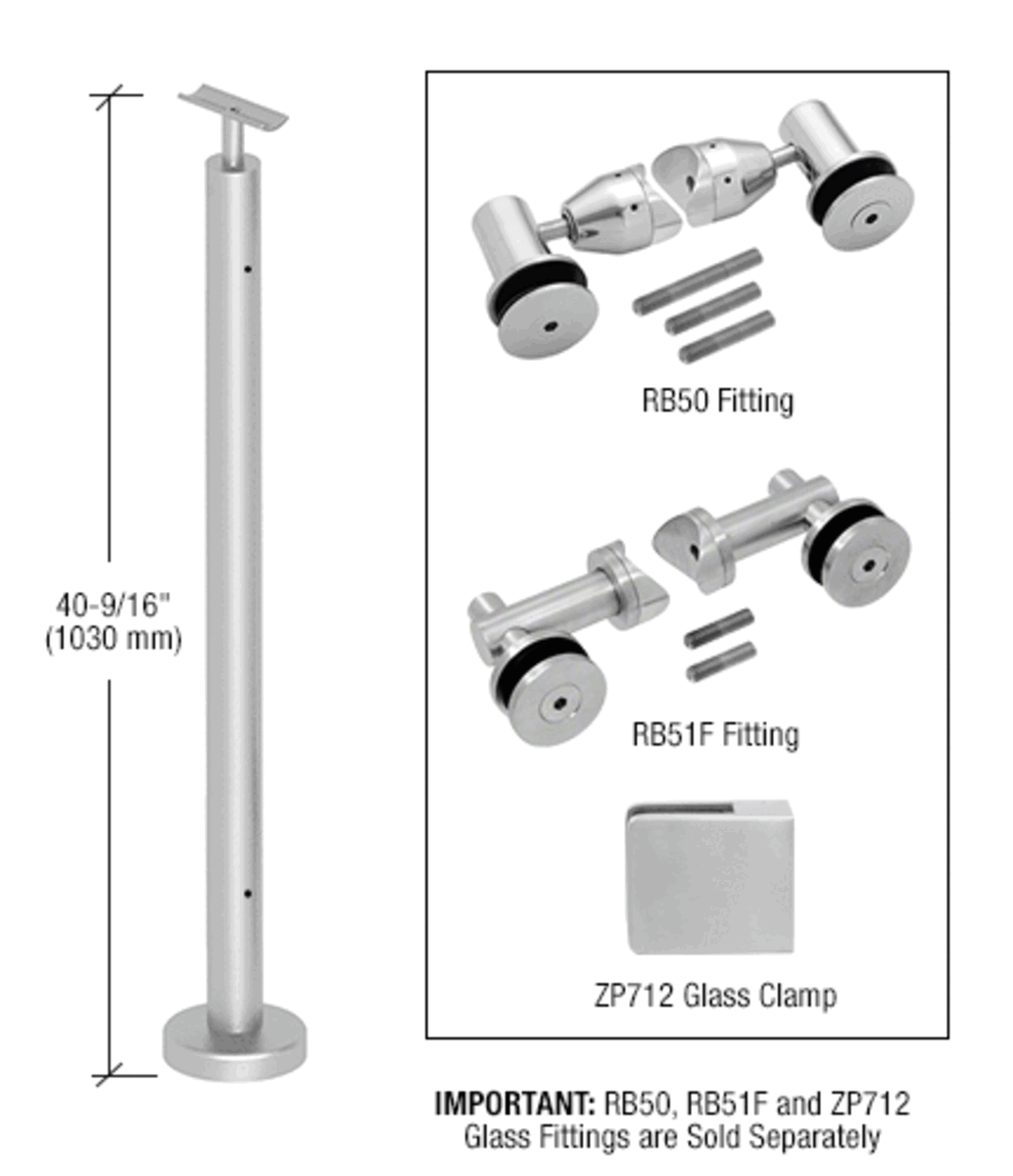

C.R. Laurence P7F42CBS Brushed Stainless 42" P7 Series 180 Degree Center Post Railing Kit No Fittings offers a robust solution for both guard rail and hand rail applications. Constructed from durable Schedule 40 1.9" (48 mm) diameter stainless steel tubing, this railing kit ensures stability and longevity. It accommodates glass panels ranging from 1/2" (12 mm) to 1" (25 mm) thick, providing flexibility for various design needs. Designed for ease of installation, the kit includes a base plate, base cover flange, and a welded top saddle, streamlining the assembly process. With standard post heights available at 36" (914 mm) and 42" (1.07 m), custom post heights can also be requested to fit specific architectural requirements. The brushed stainless steel finish not only enhances the aesthetic appeal but also allows for custom powder paint options, catering to diverse design preferences. It’s important to note that glass attachment fittings are sold separately, allowing you to select the ideal components for your project. For maintenance, periodic care is recommended to preserve the factory finish of the stainless steel. Elevate your design with C.R. Laurence's premium railing solution, combining functionality and style in one package.

Brushed Stainless 42" P7 Series 180 Degree Center Post Railing Kit No Fittings

• For Use with 1/2" (12 mm) to 1" (25 mm) Thick Panels
• Glass Attachment Fittings Sold Separately
• Standard Post Heights are 36" (914 mm) and 42" (1.07 m)
• Custom Post Heights Also Available
• Two Standard Stainless Finishes, with Custom Powder Paint Finishes Also Available

Stainless Steel Advisory:

Resources

• Architectural Glass Railing Systems and Hardware Catalog
• Architectural Glass Railing Systems and Hardware Catalog
• CRL Stainless Steel Disclaimer
• P-Series Post Railing Installation Instructions
• P-Series Post Railing Specification
• P-Series Post Railing System Quote Request Form
• P-Series Post Railing Systems Engineering Report 01-21-2025
• P-Series Post Railing Systems Engineering Report 04-03-2019
• P7 Series Post Railing System CAD Drawings.dwg
• P7 Series Post Railing System CAD Drawings.pdf
• Windscreen and Pool Fencing Systems Product Information
