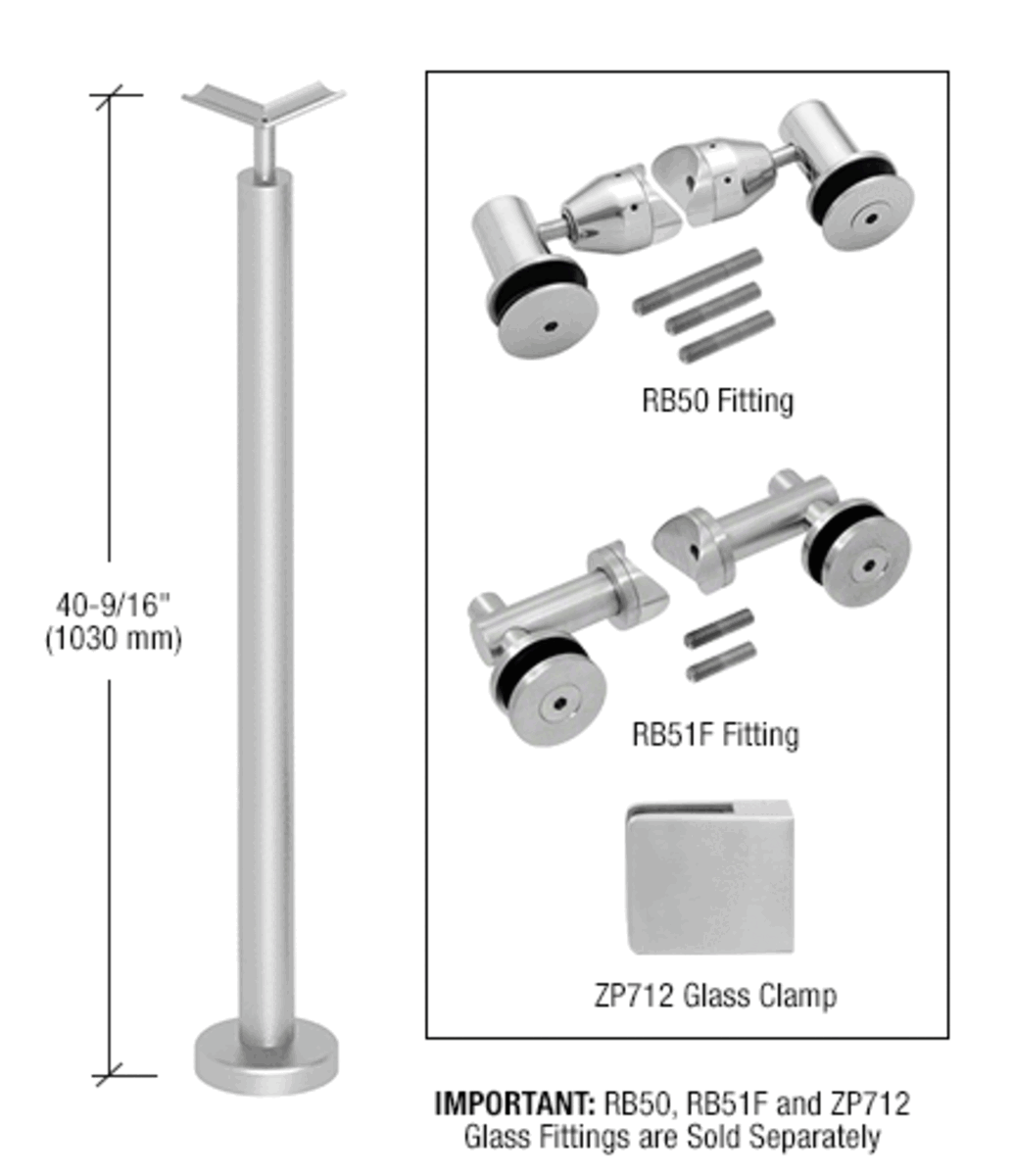

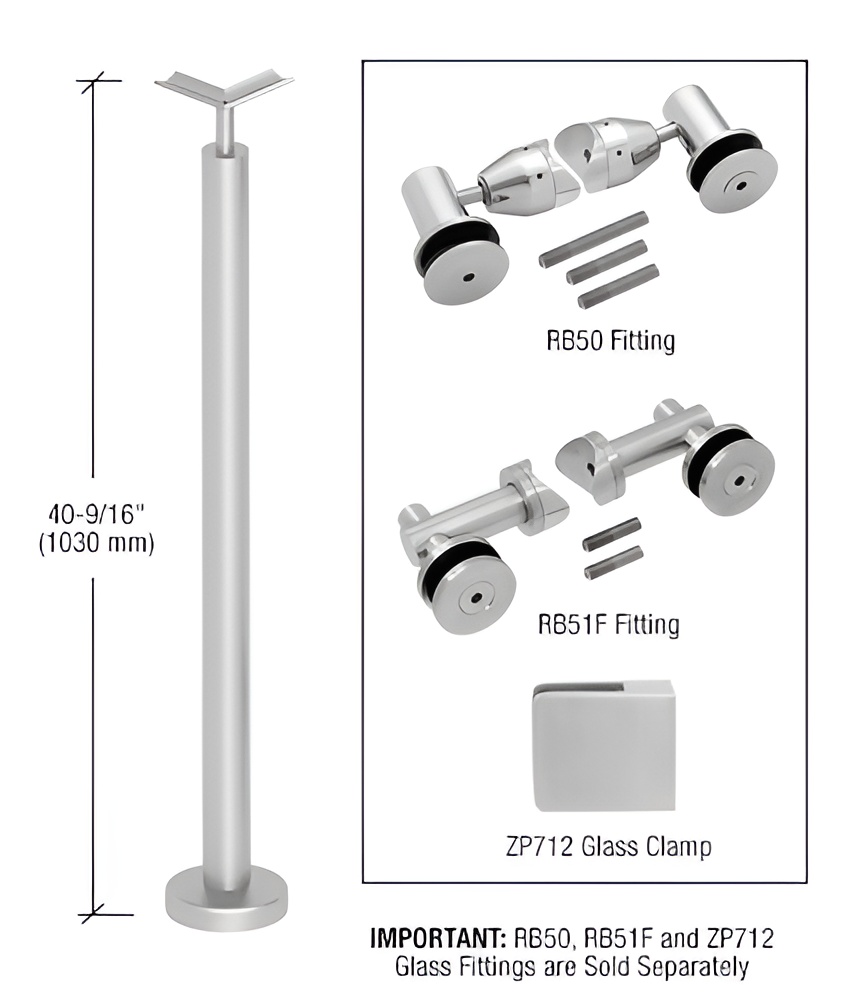

CRL P7F42LBS Brushed Stainless 42" P7 Corner Post Railing Kit, No Fittings

C.R. Laurence P7F42LBS Brushed Stainless 42" P7 Series Corner Post Railing Kit No Fittings offers a robust solution for guard rail and hand rail applications. Crafted from Schedule 40 1.9" (48 mm) diameter stainless steel tubing, this railing kit is built to last while providing a sleek, modern aesthetic. Designed for use with 1/2" (12 mm) to 1" (25 mm) thick panels, the kit includes essential components such as a base plate, base cover flange, and a welded top saddle. For added versatility, standard post heights of 36" (914 mm) and 42" (1.07 m) are available, with custom heights also offered to meet specific project requirements. The brushed stainless steel finish not only enhances durability but also complements various architectural styles. It's important to note that glass attachment fittings are sold separately, allowing you to customize your installation to fit your needs. Each kit comes with a base plate that features a diameter of 4-3/4 in. (121 mm) and includes two mounting holes for secure installation. To complete the assembly, stainless steel screws (Cat. No. PRS1032) are available for purchase. Regular maintenance is recommended to keep the stainless steel finish looking its best, ensuring long-lasting performance and beauty.

Brushed Stainless 42" P7 Series Corner Post Railing Kit No Fittings

• For Use with 1/2" (12 mm) to 1" (25 mm) Thick Panels
• Glass Attachment Fittings Sold Separately
• Standard Post Heights are 36" (914 mm) and 42" (1.07 m)
• Custom Post Heights Also Available
• Two Standard Stainless Finishes, with Custom Powder Paint Finishes Also Available
• RB509BS Required When Ordering RB50BS Glass Fittings

Stainless Steel Advisory:

Resources

• Architectural Glass Railing Systems and Hardware Catalog
• Architectural Glass Railing Systems and Hardware Catalog
• CRL Stainless Steel Disclaimer
• P-Series Post Railing Installation Instructions
• P-Series Post Railing Specification
• P-Series Post Railing System Quote Request Form
• P-Series Post Railing Systems Engineering Report 01-21-2025
• P-Series Post Railing Systems Engineering Report 04-03-2019
• P7 Series Post Railing System CAD Drawings.dwg
• P7 Series Post Railing System CAD Drawings.pdf
• Windscreen and Pool Fencing Systems Product Information
