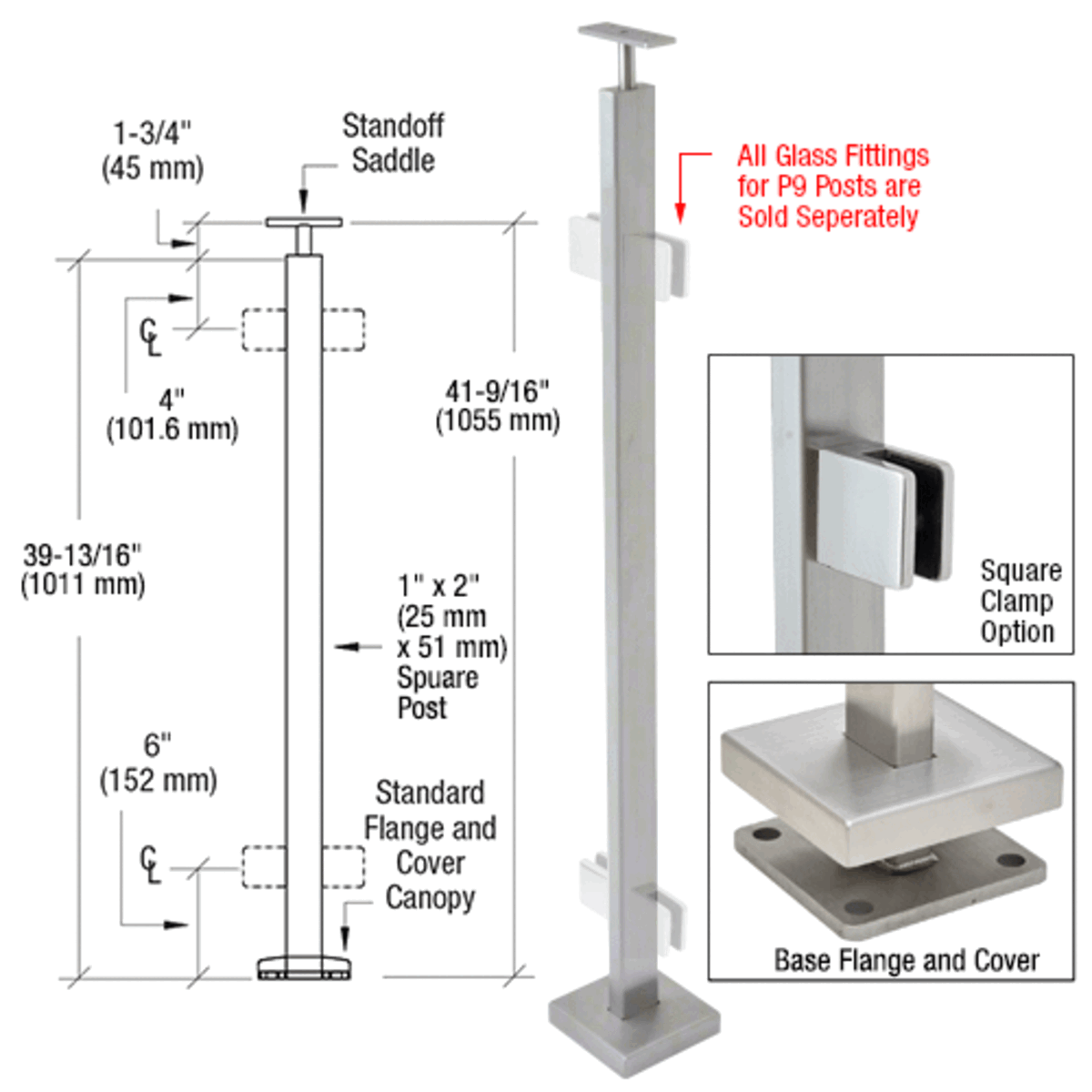

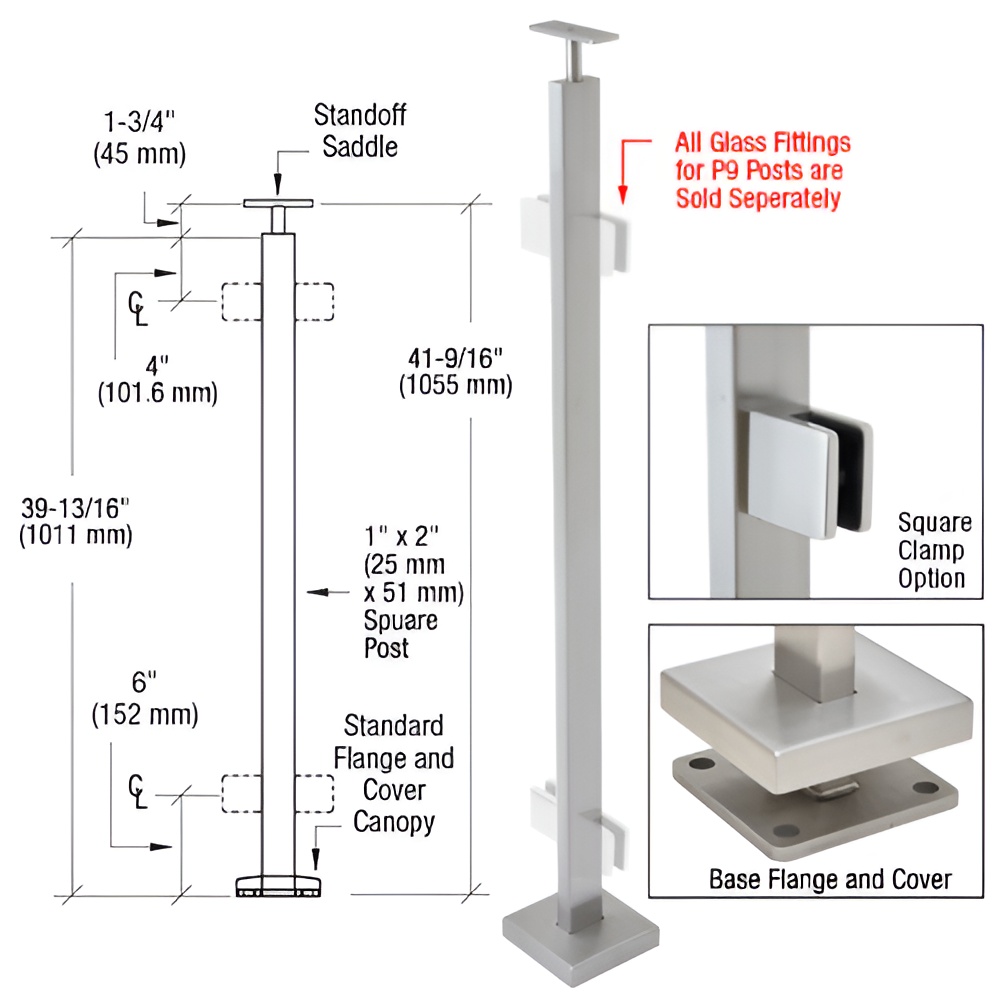

CRL P942CBS Brushed Stainless 42" P9 Series 180 Center Post Railing Kit

C.R. Laurence P942CBS Brushed Stainless 42" P9 Series 180 Degree Center Post Railing Kit offers an exceptional solution for guardrail or handrail applications. Constructed from robust 1" x 2" stainless steel rectangular tubing, this railing kit is designed to accommodate glass panels ranging from 1/2" (12 mm) to 1" (25 mm) thick, ensuring versatility in various architectural designs. The standard post height of 42" (1.07 m) provides a reliable safety measure, while custom post heights are also available to meet specific project needs. This comprehensive kit includes a base plate, base cover flange, and a welded top saddle with vertical adjustment capabilities, enhancing installation flexibility. The brushed stainless steel finish not only adds an elegant touch but also emphasizes durability. For those looking for a personalized aesthetic, custom powder paint finishes can be arranged. Please note that glass attachment fittings are sold separately, allowing for tailored configurations. To secure the top rail to the saddle, specify Cat. No. PRS1032 for the necessary stainless steel screws, sold in packs of 50. It's advisable to conduct periodic maintenance on the stainless steel to preserve its factory finish. Elevate your design with the reliability and style of C.R. Laurence’s P9 Series Railing Kit.

Brushed Stainless 42" P9 Series 180 Degree Center Post Railing Kit

• For Use with 1/2" (12 mm) to 1" (25 mm) Thick Panels
• Glass Attachment Fittings Sold Separately
• Standard Post Height is 42" (1.07 m)
• Custom Post Heights Also Available
• Two Standard Stainless Finishes with Custom Powder Paint Finishes Also Available

Stainless Steel Advisory:

Resources

• Architectural Glass Railing Systems and Hardware Catalog
• Architectural Glass Railing Systems and Hardware Catalog
• CRL Stainless Steel Disclaimer
• P-Series Post Railing Installation Instructions
• P-Series Post Railing Specification
• P-Series Post Railing System Quote Request Form
• P-Series Post Railing Systems Engineering Report 01-21-2025
• P-Series Post Railing Systems Engineering Report 04-03-2019
• P9 Series Post Railing System CAD Drawings.dwg
• P9 Series Post Railing System CAD Drawings.pdf
• Windscreen and Pool Fencing Systems Product Information
