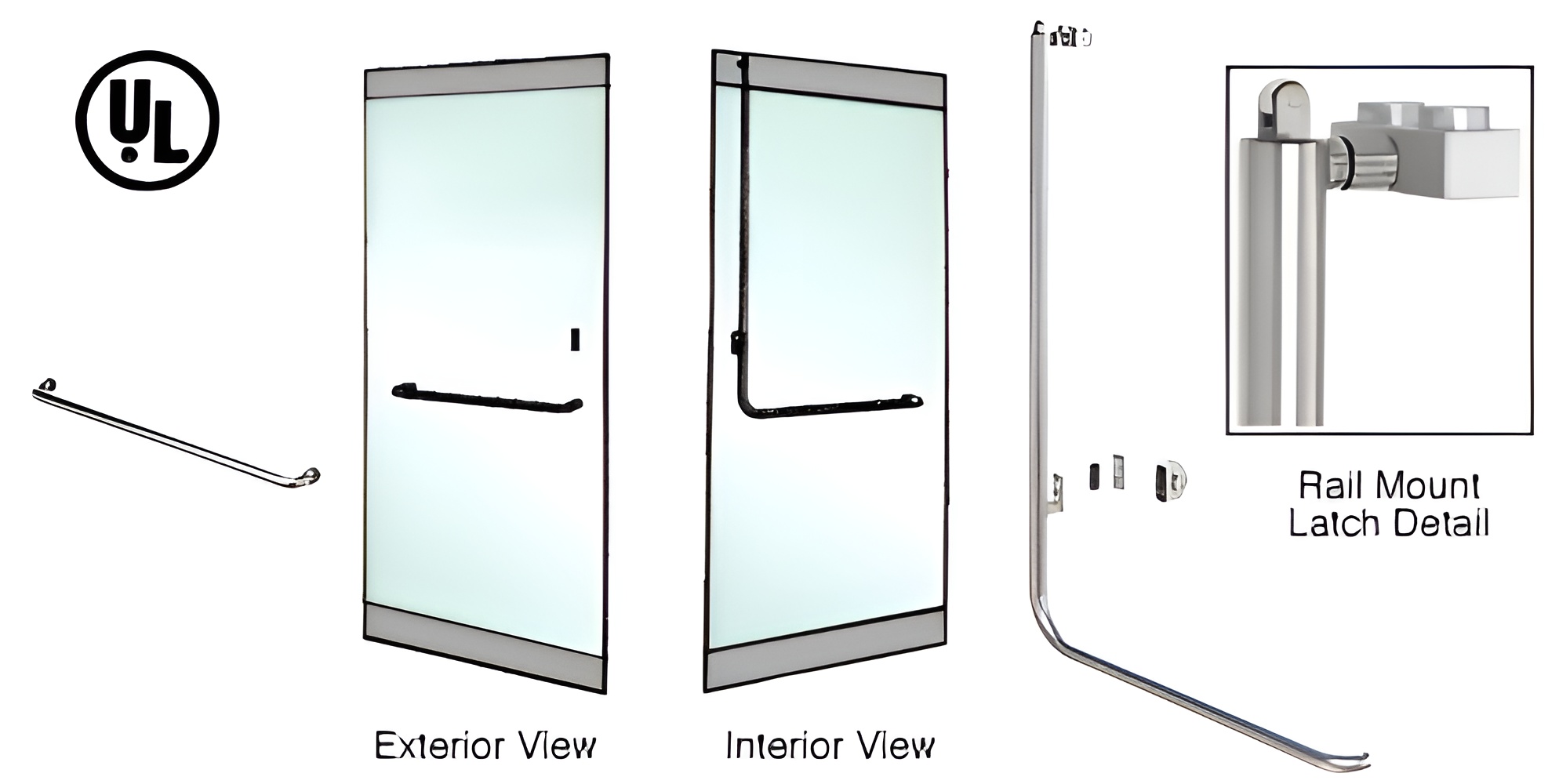

CRL PA100A4RKBS Blumcraft Brushed Stainless Left Hand Panic Handle with Keyed Access

CRL PA100A4RKBS Blumcraft Brushed Stainless Left Hand Panic Handle with Keyed Access

C.R. Laurence PA100A4RKBS Blumcraft Brushed Stainless Left Hand Reverse Rail Mount Keyed Access "A" Exterior, Top Securing Panic Handle offers a sophisticated solution for your all-glass door needs. This panic handle is UL, ULC, and ANSI/BHMA certified, ensuring compliance with safety standards while its elegant tubular design enhances the aesthetic of any entryway. Crafted from durable Alloy 304 stainless steel, the handle is available in a range of finishes including brushed stainless, polished brass, and oil-rubbed bronze, with custom finishes available upon request. Designed for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors, this model features a slender 1-1/4" (32 mm) diameter tube that maximizes viewing area while adhering to ADA requirements. The PA100A4RKBS includes a top latching mechanism and an optional keyed access device for secure entry. Its dogging feature allows the door to remain unlocked during business hours, providing ease of access. For added functionality, it can be paired with electric strikes for keyless entry solutions. With custom sizes available and shipping within one to two weeks, this panic handle seamlessly integrates safety and style for any commercial application.

Blumcraft Brushed Stainless Left Hand Reverse Rail Mount Keyed Access "A" Exterior, Top Securing Panic Handle

• UL, ULC, and ANSI/BHMA Certified
• Elegant Tubular Design
• Wide Selection of Exterior Fixed Handles For 1/2" (12 mm) or 3/4" (19 mm) Tempered Glass Doors
• Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
• Custom Finishes Available By Special Order
• Custom Sizes Ship Within One to Two Weeks

CRL-Blumcraft® manufactures a complete line of Access Control Handles for your 'all-glass' door needs. We have Panic Devices, Deadbolt Handles, and Electronic Egress Control Handles in a wide variety of configurations. We can also supply you with Dummy Handles to match these devices, allowing you to maintain the same appearance throughout the project, but without the added costs.


The operating mechanism concealed within the vertical tubing of our Panic Handles retracts the latch bolt when the interior actuation bar is pushed. An optional exterior Keyed Access Device can be installed to allow entry, and a special dogging feature allows the doors to remain unlocked during business hours. Electronic Strikes are also available, providing a variety of secured entry options.

CRL manufactures a complete line of Panic Handles designed with the 'all-glass' door in mind. These elegant tubular devices give you maximum viewing area and a contemporary look when used on 1/2" or 3/4" (12 or 19 mm) tempered glass doors.

The most popular of these Panics is our PA100 Series. They provide a solution to the strict Americans With Disabilities Act (A.D.A.) Codes that confront every manufacturer and installer of 'all-glass' doors.

The interior portion of the device is a slender 1-1/4" (32 mm) tube stretching across the door and then gently turning upwards to the top of the door, eliminating any interference at the lower half of the door, which must remain clear of obstructions to pass A.D.A. demands.

All PA100 Series Panic Handles come with a 'dogging' feature that allows you to lock the device in the open position by simply sliding a lever, giving free access during business hours. They also can be used in conjunction with an Electric Strike, allowing for remote keyless entry. For your convenience, Custom Headers are available with all strike hardware installed.

For additional information, contact CRL Technical Sales from the home page by clicking on Contact Us, and then click on Technical Sales for Commercial Products. The latest catalog pages with complete details on our CRL-Blumcraft® Access Handle product line can be found here." target="_blank">https://catalogs.crlaurence.com/AH18-Glass-Entrance-Systems/254/">here.

Stainless Steel Advisory:

Resources

• Blumcraft Access Control Handles Specifications
• Blumcraft Access Control Handles Specifications.doc
• Blumcraft Panic Handles System CAD Drawings.dwg
• Blumcraft Panic Handles System CAD Drawings.pdf
• Blumcraft Security Latch Product Information
• CRL Stainless Steel Disclaimer
• Handle Warranty
• Installation Instructions AVDB3118 PA100A Panic Handle.pdf
• LEED Statement
• PA100A Series Panic Handle Installation Instructions
• Panic Handles - Hollow Metal Doors Installation Instructions
• Panic Hardware Certificate of Compliance
• Panic and Deadbolt Handle - 100 and 110 Series Quote Request Form
• Quote and Ordering Form panic.pdf
• Specifications specdrs.doc
