CRL PA110C3GKBS Blumcraft Brushed Stainless Right Hand Reverse Glass Panic Handle, Keyed Access

CRL PA110C3GKBS Blumcraft Brushed Stainless Right Hand Reverse Glass Panic Handle, Keyed Access

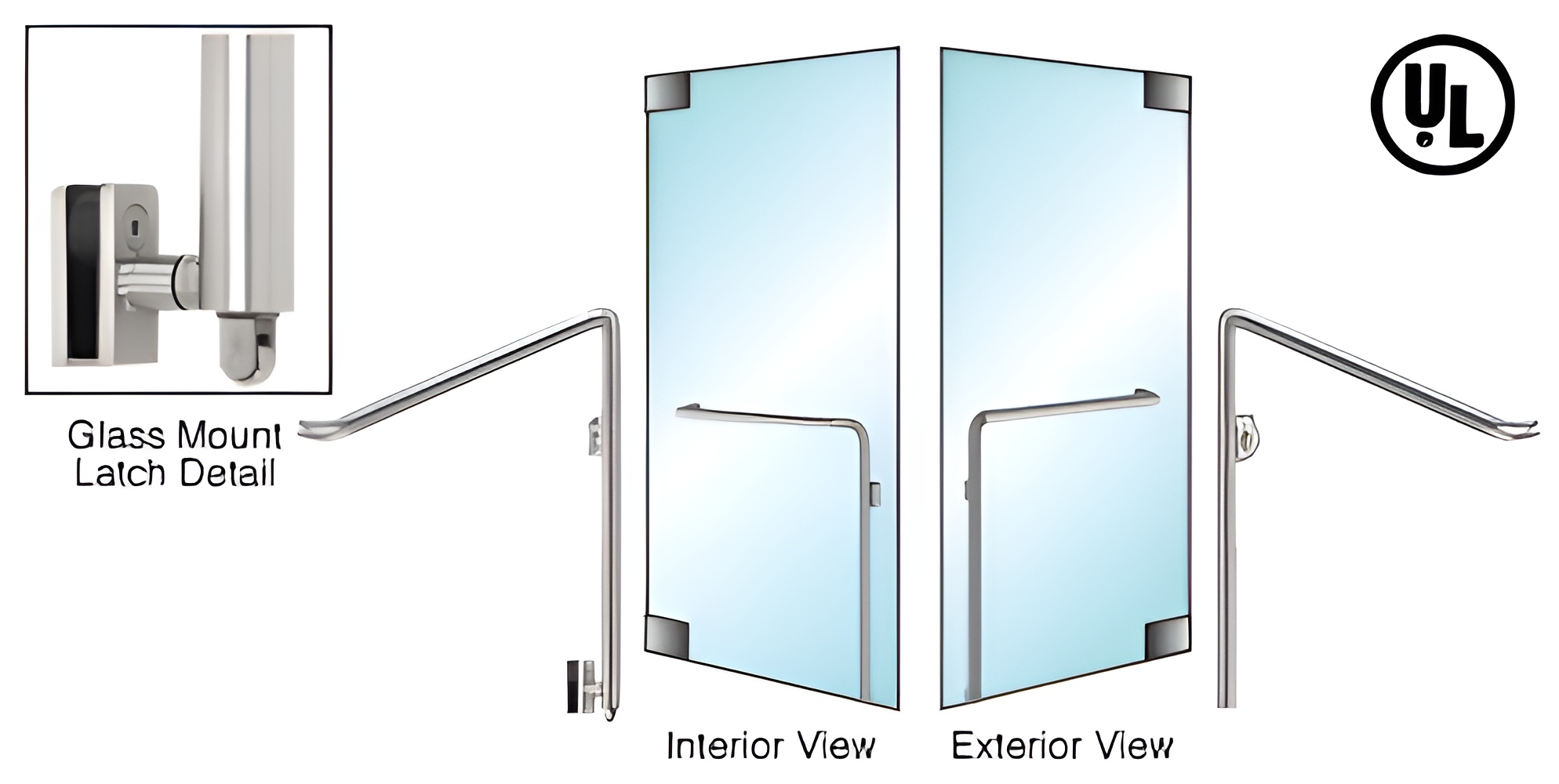

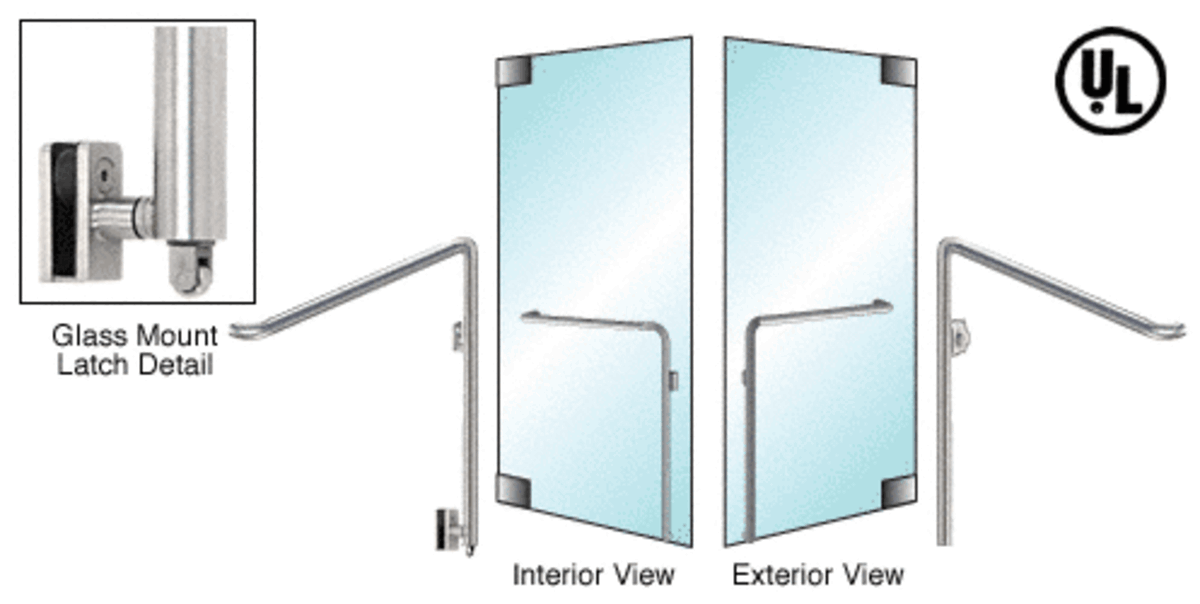

CRL PA110C3GKBS Blumcraft Brushed Stainless Right Hand Reverse Glass Mount Keyed Access 'C' Exterior Bottom Securing Panic Handle combines elegant design with exceptional functionality. This panic handle features a sleek tubular design, ensuring it complements modern all-glass door systems seamlessly. Certified by UL, ULC, and ANSI/BHMA, this handle guarantees reliability and safety in commercial environments. Designed for use with ½" (12 mm) or ¾" (19 mm) tempered glass doors, it is available in a variety of finishes, including polished and brushed stainless steel, satin and polished brass, and oil-rubbed bronze. Custom finishes and sizes can be ordered to fit specific project needs, with quicker shipping available for custom sizes. The innovative operating mechanism is concealed within the handle's vertical tubing, allowing for easy actuation with a push of the interior bar to retract the latch bolt. An optional exterior keyed access device enhances security, while the special dogging feature keeps doors unlocked during business hours. This product is ideal for applications where ADA compliance is not a concern, providing secure and accurate latching for both threshold and no-threshold installations. Invest in the CRL PA110C3GKBS to ensure a stylish yet secure entry solution for your architectural glass projects.

Blumcraft Brushed Stainless Right Hand Reverse Glass Mount Keyed Access 'C' Exterior Bottom Securing Panic Handle

• UL, ULC, and ANSI/BHMA Certified
• Elegant Tubular Design
• Wide Selection of Exterior Fixed Handles For 1/2" (12 mm) or 3/4" (19 mm) Tempered Glass Doors
• Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
• Custom Finishes Available By Special Order
• Custom Sizes Ship Within One to Two Weeks

CRL-Blumcraft® manufactures a complete line of Access Control Handles for your 'all-glass' door needs. We have Panic Devices, Deadbolt Handles, and Electronic Egress Control Handles in a wide variety of configurations. We can also supply you with Dummy Handles to match these devices, allowing you to maintain the same appearance throughout the project, but without the added costs.


The operating mechanism concealed within the vertical tubing of our Panic Handles retracts the latch bolt when the interior actuation bar is pushed. An optional exterior Keyed Access Device can be installed to allow entry, and a special dogging feature allows the doors to remain unlocked during business hours. Electronic Strikes are also available, providing a variety of secured entry options.

When A.D.A. Codes are not a concern, we also offer our PA110 Series Panic Handles. These Panics are of the same sleek design as the PA100 Series, except they stretch across the door and then bend downward to the bottom of the door, latching at the floor or threshold.

They operate just like the PA100 Series Panics, and have the same 'dogging' feature. Strikes are available for either threshold or no threshold applications providing secure, accurate latching every time.

All of our PA100 and PA110 Panic Handles go through rigorous testing before they leave our manufacturing facility, ensuring that a high quality, dependable Panic will serve your customer for years to come.

Most importantly, they are all UL305, ULC/5132-93, and ANSI/BHMA A156.3-2001, Grade 1 Certified. No other Panic of this type can make this claim, and that puts CRL Panic Handles a step ahead of all the rest.

For additional information, contact CRL Technical Sales from the home page by clicking on Contact Us, and then click on Technical Sales for Commercial Products. The latest catalog pages with complete details on our CRL-Blumcraft® Access Handle product line can be found here." target="_blank">https://catalogs.crlaurence.com/AH18-Glass-Entrance-Systems/254/">here.

Stainless Steel Advisory:

Resources

• Blumcraft Access Control Handles Specifications
• Blumcraft Access Control Handles Specifications.doc
• Blumcraft Panic Handles System CAD Drawings.dwg
• Blumcraft Panic Handles System CAD Drawings.pdf
• Blumcraft Security Latch Product Information
• CRL Stainless Steel Disclaimer
• Handle Warranty
• Installation Instructions AVDB3318 PA110C Panic Handle.pdf
• PA110C Series Panic Handle Installation Instructions
• Panic Handles - Hollow Metal Doors Installation Instructions
• Panic and Deadbolt Handle - 100 and 110 Series Quote Request Form
• Quote and Ordering Form panic.pdf
