CRL PA110F4RKPS Blumcraft Polished Stainless Left Hand Panic Handle, Keyed Access "F"

CRL PA110F4RKPS Blumcraft Polished Stainless Left Hand Panic Handle, Keyed Access "F"

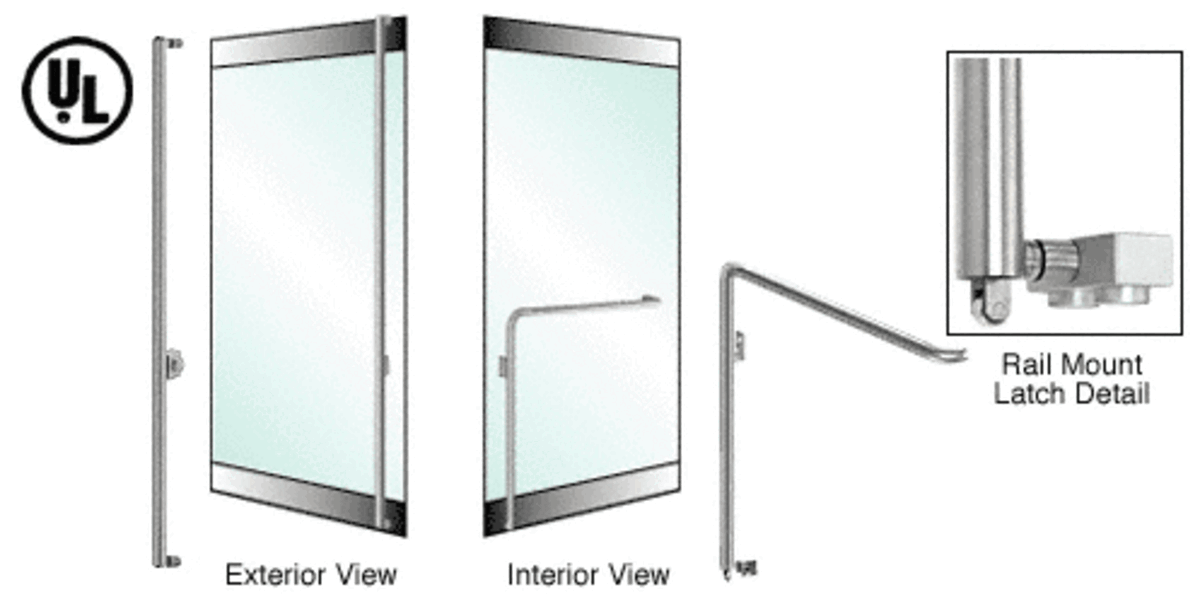

C.R. Laurence PA110F4RKPS Blumcraft Polished Stainless Left Hand Reverse Rail Mount Keyed Access "F" Exterior Bottom Securing Panic Handle offers a combination of elegance and functionality, making it an essential addition to your all-glass door systems. Certified by UL, ULC, and ANSI/BHMA, this panic handle ensures superior safety and reliability. Designed with a sleek tubular profile, it is compatible with both 1/2" (12 mm) and 3/4" (19 mm) tempered glass doors. Available in various finishes including Polished and Brushed Stainless, Satin and Polished Brass, as well as Oil Rubbed Bronze, it seamlessly integrates into any architectural style. Custom finishes and sizes are also available by special order, shipping within one to two weeks. The handle features an innovative operating mechanism that retracts the latch bolt when the interior actuation bar is pushed, enhancing ease of use. An optional exterior keyed access device provides added security, along with a dogging feature that allows the doors to remain unlocked during business hours. Constructed from durable Alloy 304 stainless steel, the PA110F4RKPS is designed for long-lasting performance. It meets rigorous testing standards, ensuring that it will serve your needs reliably for years to come.

Blumcraft Polished Stainless Left Hand Reverse Rail Mount Keyed Access "F" Exterior Bottom Securing Panic Handle

• UL, ULC, and ANSI/BHMA Certified
• Elegant Tubular Design
• Wide Selection of Exterior Fixed Handles For 1/2" (12 mm) or 3/4" (19 mm) Tempered Glass Doors
• Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
• Custom Finishes Available By Special Order
• Custom Sizes Ship Within One to Two Weeks

CRL-Blumcraft® manufactures a complete line of Access Control Handles for your 'all-glass' door needs. We have Panic Devices, Deadbolt Handles, and Electronic Egress Control Handles in a wide variety of configurations. We can also supply you with Dummy Handles to match these devices, allowing you to maintain the same appearance throughout the project, but without the added costs.


The operating mechanism concealed within the vertical tubing of our Panic Handles retracts the latch bolt when the interior actuation bar is pushed. An optional exterior Keyed Access Device can be installed to allow entry, and a special dogging feature allows the doors to remain unlocked during business hours. Electronic Strikes are also available, providing a variety of secured entry options.

When A.D.A. Codes are not a concern, we also offer our PA110 Series Panic Handles. These Panics are of the same sleek design as the PA100 Series, except they stretch across the door and then bend downward to the bottom of the door, latching at the floor or threshold.

They operate just like the PA100 Series Panics, and have the same 'dogging' feature. Strikes are available for either threshold or no threshold applications providing secure, accurate latching every time.

All of our PA100 and PA110 Panic Handles go through rigorous testing before they leave our manufacturing facility, ensuring that a high quality, dependable Panic will serve your customer for years to come.

Most importantly, they are all UL305, ULC/5132-93, and ANSI/BHMA A156.3-2001, Grade 1 Certified. No other Panic of this type can make this claim, and that puts CRL Panic Handles a step ahead of all the rest.

For additional information, contact CRL Technical Sales from the home page by clicking on Contact Us, and then click on Technical Sales for Commercial Products. The latest catalog pages with complete details on our CRL-Blumcraft® Access Handle product line can be found here." target="_blank">https://catalogs.crlaurence.com/AH18-Glass-Entrance-Systems/254/">here.

Stainless Steel Advisory:

Resources

• Blumcraft Access Control Handles Specifications
• Blumcraft Access Control Handles Specifications.doc
• Blumcraft Panic Handles System CAD Drawings.dwg
• Blumcraft Panic Handles System CAD Drawings.pdf
• Blumcraft Security Latch Product Information
• CRL Stainless Steel Disclaimer
• Handle Warranty
• Installation Instructions AVDB3118 PA110F Panic Handle.pdf
• PA110F Series Panic Handle Installation Instructions
• Panic Handles - Hollow Metal Doors Installation Instructions
• Panic and Deadbolt Handle - 100 and 110 Series Quote Request Form
• Quote and Ordering Form panic.pdf
