CRL PA110Z4GKBS Blumcraft Brushed Stainless Left Hand Reverse Panic Handle for Glass Mount

CRL PA110Z4GKBS Blumcraft Brushed Stainless Left Hand Reverse Panic Handle for Glass Mount

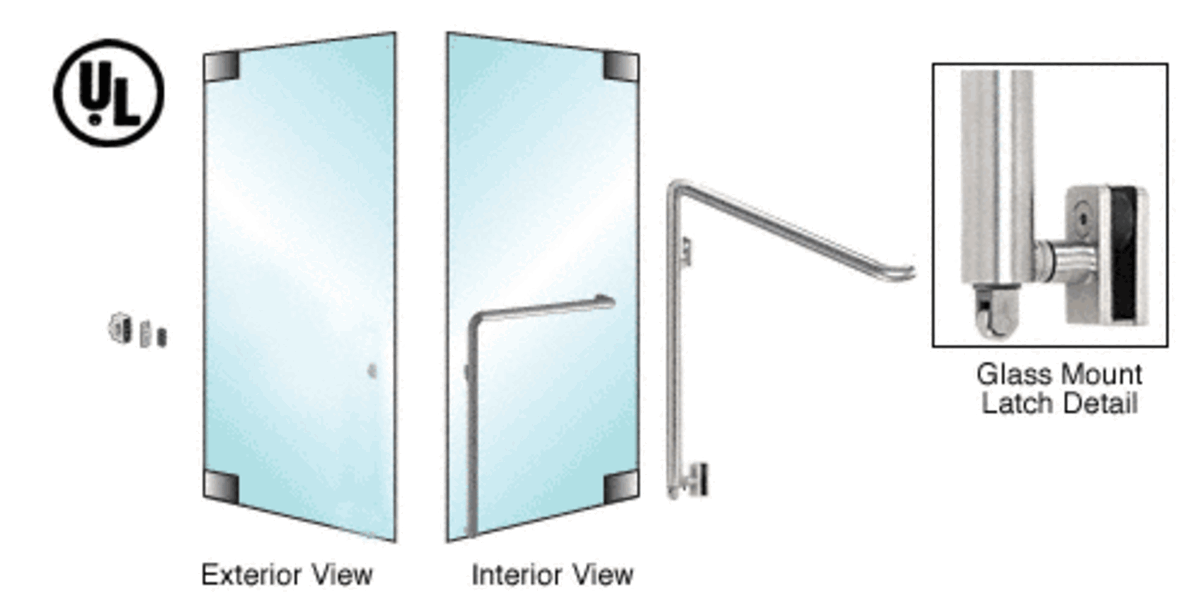

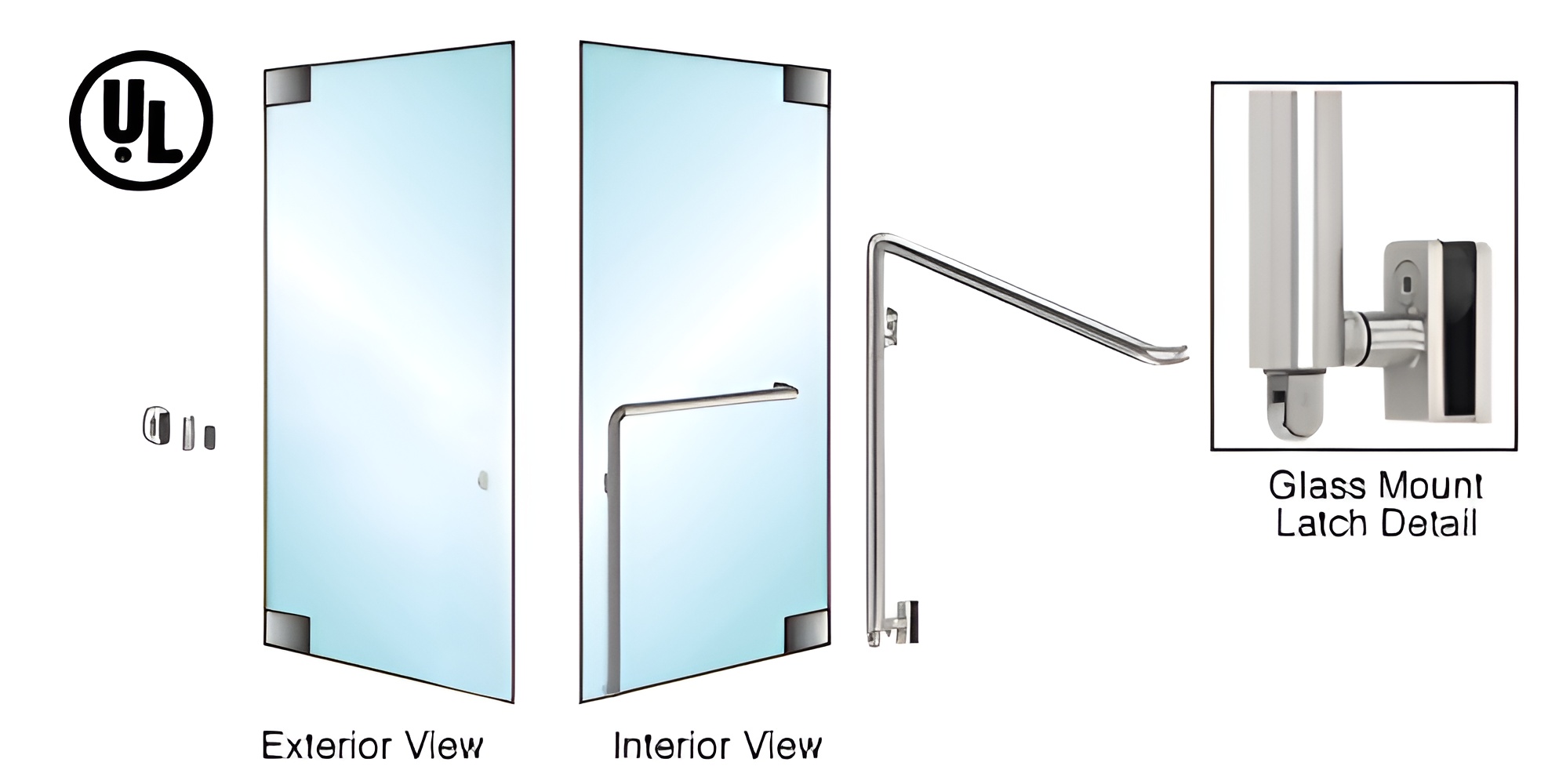

C.R. Laurence PA110Z4GKBS Blumcraft Brushed Stainless Left Hand Reverse Glass Mount Keyed Access "Z" Exterior Bottom Securing Panic Handle combines elegance with functionality, making it an ideal choice for all-glass door applications. This panic handle features a sophisticated tubular design and is UL, ULC, and ANSI/BHMA certified, ensuring top-tier performance and safety standards. Designed for compatibility with 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors, this handle is available in various finishes, including polished and brushed stainless steel, satin and polished brass, and oil rubbed bronze. For customized projects, special order finishes and sizes can be arranged, shipping within one to two weeks. The PA110Z4GKBS operates effortlessly with a concealed mechanism that retracts the latch bolt upon activation of the interior bar. An optional exterior keyed access device enhances security and convenience, while a dogging feature allows doors to remain unlocked during business hours. This handle is also designed to accommodate electronic strikes for added entry control. Constructed from durable stainless steel (Alloy 304), this panic handle is built to withstand the test of time, delivering dependable use for years to come. Ensure your projects have the best in access control with C.R. Laurence's PA110Z4GKBS handle.

Blumcraft Brushed Stainless Left Hand Reverse Glass Mount Keyed Access "Z" Exterior Bottom Securing Panic Handle

• UL, ULC, and ANSI/BHMA Certified
• Elegant Tubular Design
• Wide Selection of Exterior Fixed Handles For 1/2" (12 mm) or 3/4" (19 mm) Tempered Glass Doors
• Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
• Custom Finishes Available By Special Order
• Custom Sizes Ship Within One to Two Weeks

CRL-Blumcraft® manufactures a complete line of Access Control Handles for your 'all-glass' door needs. We have Panic Devices, Deadbolt Handles, and Electronic Egress Control Handles in a wide variety of configurations. We can also supply you with Dummy Handles to match these devices, allowing you to maintain the same appearance throughout the project, but without the added costs.


The operating mechanism concealed within the vertical tubing of our Panic Handles retracts the latch bolt when the interior actuation bar is pushed. An optional exterior Keyed Access Device can be installed to allow entry, and a special dogging feature allows the doors to remain unlocked during business hours. Electronic Strikes are also available, providing a variety of secured entry options.

When A.D.A. Codes are not a concern, we also offer our PA110 Series Panic Handles. These Panics are of the same sleek design as the PA100 Series, except they stretch across the door and then bend downward to the bottom of the door, latching at the floor or threshold.

They operate just like the PA100 Series Panics, and have the same 'dogging' feature. Strikes are available for either threshold or no threshold applications providing secure, accurate latching every time.

All of our PA100 and PA110 Panic Handles go through rigorous testing before they leave our manufacturing facility, ensuring that a high quality, dependable Panic will serve your customer for years to come.

Most importantly, they are all UL305, ULC/5132-93, and ANSI/BHMA A156.3-2001, Grade 1 Certified. No other Panic of this type can make this claim, and that puts CRL Panic Handles a step ahead of all the rest.

For additional information, contact CRL Technical Sales from the home page by clicking on Contact Us, and then click on Technical Sales for Commercial Products. The latest catalog pages with complete details on our CRL-Blumcraft® Access Handle product line can be found here." target="_blank">https://catalogs.crlaurence.com/AH18-Glass-Entrance-Systems/254/">here.
