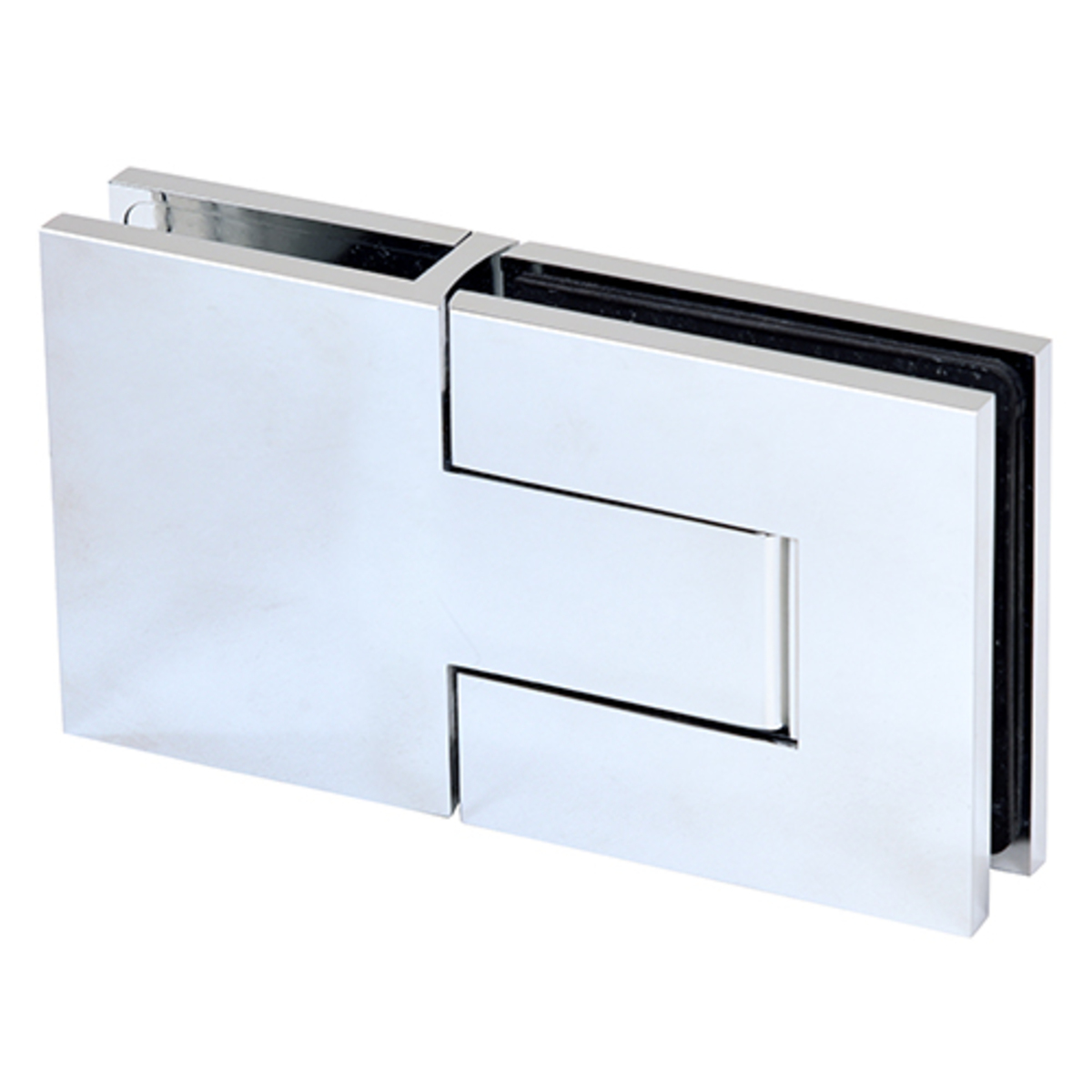

CRL PAL180CH Chrome Palermo 180 Glass-to-Glass Hinge

C.R. Laurence PAL180CH Chrome Palermo Glass-to-Glass 180 Degree Hinge offers a sleek and modern solution for your glass door installations. Designed to accommodate 3/8" to 1/2" (10 mm to 12 mm) glass, this hinge features precision lines that enhance its aesthetic appeal while ensuring robust functionality. With its elegant polished chrome finish, it seamlessly integrates into contemporary spaces. One of the standout features of the Palermo hinge is its adjustable closing position, allowing for easy modifications even when the door is hung. It supports a maximum door width of 39" (1 m) and a maximum weight of 110 lb (50 kg) when using two hinges, making it ideal for both residential and commercial applications. The hinge also self-centers within 30° of the closed position, ensuring smooth operation and reliability. Constructed from durable brass, the PAL180CH hinge is designed for glass-to-glass mounting and boasts a square edge profile. At a height of 3-1/8" (79 mm) and a width of 5-11/16", it offers a compact yet sturdy solution for your glazing needs. The concealed fasteners contribute to a clean look, enhancing the overall design of any glass structure.

Chrome Palermo Glass-to-Glass 180 Degree Hinge

• Sleek New Design
• Works with 3/8" and 1/2" (10 mm and 12 mm) glass
• Adjustable closing position with the door in place
• Handles up to a 39" (1 m) wide door using two hinges

Resources

• Frameless Shower Door Glass and Hardware Cleaning Instructions
• Frameless Shower Door Glass and Hardware Cleaning Instructions
• Frameless Shower Door Hardware Catalog
• Frameless Shower Door Hardware Catalog
• Frameless Shower Door Quote Request Form
• Hardware Finish Cross-Reference Guide
• Hardware Finish Cross-Reference Guide
• Hardware Finish Cross-Reference Guide
• PAL180 Template
