CRL PB001BS Brushed Stainless Bullet-Resistant Barrier U-Clamp SystemC.R. Laurence PB001BS Brushed Stainless Bullet Resistant Protective Barrier System U-Clamp is designed to create a robust and secure barrier system in high-security applications. This U-Clamp is specifically engineered to accommodate bullet-resistant 1-1/4" (32 mm) acrylic or polycarbonate materials, ensuring reliable protection without compromising aesthetics. Crafted from high-quality 11 gauge stainless steel, this clamp guarantees durability and security, making it ideal for demanding environments. Available in a variety of finishes, including brushed stainless, polished stainless, and satin chrome, it offers an attractive design that seamlessly integrates into any installation. The U-Clamp mounts directly to walls, ceilings, or counters, utilizing a straightforward attachment method. One screw secures the glazing material, while two screws anchor the clamp to the surface. It provides two mounting options: one that requires a notch for a flush fit and another that allows for a slight gap, ensuring flexibility based on your installation needs. Included with the U-Clamp are mounting screws and detailed instructions, ensuring a straightforward setup. For custom requirements, special order clamps for 3/4" (19 mm) thick glazing are also available. For optimal performance, periodic maintenance of the stainless steel finish is recommended to preserve its integrity over time.
Brushed Stainless Bullet Resistant Protective Barrier System U-Clamp
- Create Your Own Complete Barrier System with CRL Components
- Made to Secure Bullet Resistant 1-1/4" (32 mm) Acrylic or Polycarbonate Barrier Systems in High-Security Applications
- Made of High Quality Stainless Steel to Provide Reliable Security
- Available in Several Finishes
CRL Protective Barrier Clamps are made to secure bullet resistant barrier systems in high - security applications. All clamps are made of high quality stainless steel to provide reliable security, are available in a variety of finishes, and provide an attractive design to your installation. Custom Clamps are available on special order for 3/4" (19 mm) thick glazing material.
This
U-Clamp is made to secure bullet resistant acrylic or polycarbonate. U-Clamps are made to mount directly to the wall, ceiling or counter. One screw secures the glazing material, and two screws secure the clamp to the surface.

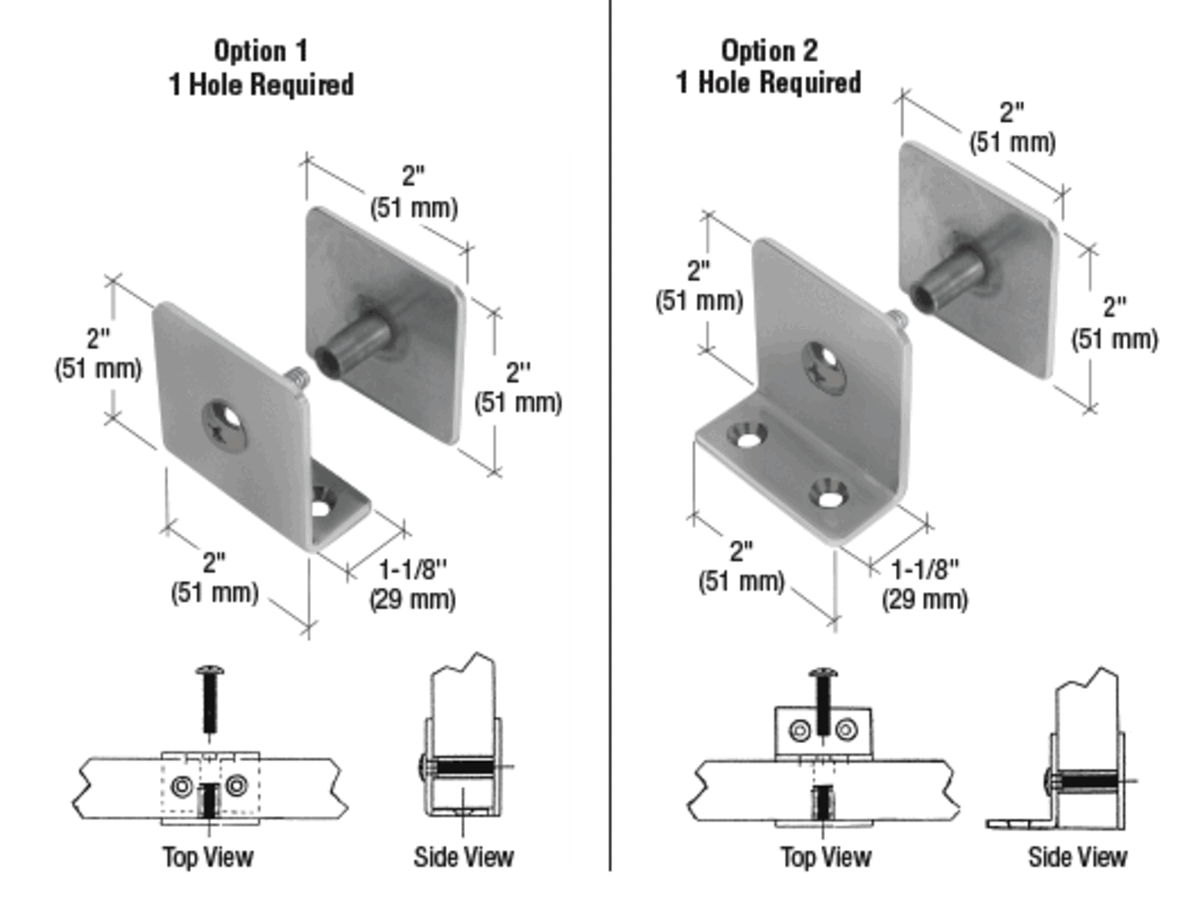

Two different mounting options are available. Option 1 requires a notch for the base mounting plate if the glazing material is to sit flush on the surface. If glazing material is not notched for the base mounting plate an 1/8" (3 mm) gap will be created. Option 2 does not require notch to have the glazing material sit flush on the surface.
SPECIFICATIONS:
Material: 11 Gauge Stainless Steel
Finishes: Brushed Stainless, Polished Stainless, Satin Chrome
Glazing: Use with 1-1/4" (32 mm) Acrylic or 1-1/4" (32 mm) Polycarbonate
Includes: Mounting Screws, Instructions
Glass Fabrication: 3/4" (19 mm) hole required.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 1-1/4 in. (32 mm)
Material: Stainless Steel
Shipping Limitations: None
