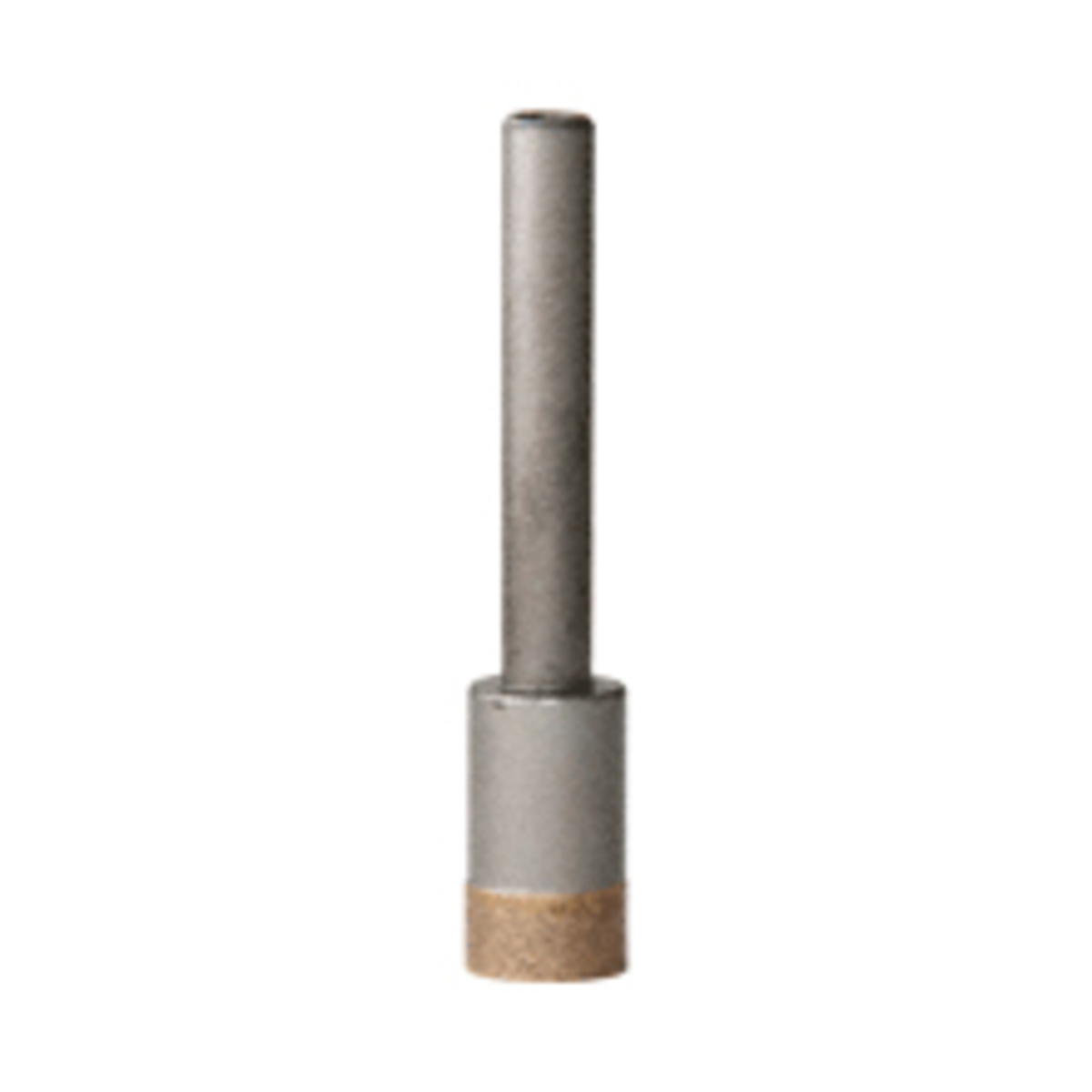

CRL PD1116 11/16" PD Straight Metal Bond Diamond Drill

CRL PD1116 11/16" PD Straight Metal Bond Diamond Drill

C.R. Laurence PD1116 11/16" PD Straight Series Metal Bond Diamond Drill is engineered for high-volume glass fabrication, making it an essential tool for professionals in the industry. With a robust 3/8" diamond matrix depth, this drill ensures a superior performance that stands out in the market. Designed for longevity, it can achieve between 1,000 to 2,000 holes in 1/4" (6.4 mm) glass when properly maintained and paired with a wet sharpening stone to keep the diamonds exposed. These Italian-made multi-layer diamond drills not only cut faster but also run cooler than competitors, enhancing work efficiency. The drill features a generous 1-3/8" by 3/8" (35 by 10 mm) diameter shank for a secure grip, while two mounting styles-Straight Shank or Belgian Thread-provide versatility to suit various drilling machines. It’s important to note that these drills should be used on flat glass surfaces and in true running machines to maximize their effectiveness. Safety gear, including gloves and eye protection, is necessary while operating this drill. With the C.R. Laurence PD1116, you can expect reliability and precision for all your glass drilling needs.

11/16" PD Straight Series Metal Bond Diamond Drill

• Designed for High-Volume Glass Fabrication
• 3/8" Diamond Matrix Depth
• Two Mounting Styles to Choose From, Straight Shank or Belgian Thread

CRL PD and PDT Series Metal Bond Diamond Drills use a special diamond and brass bond for maximum performance in glass. Metal Bond Drills offer the longest life of any type of diamond drill; 1,000 to 2,000 holes in 1/4" (6.4 mm) glass with proper maintenance and the use of a wet Sharpening Stone to expose fresh diamonds. These Italian made multi-layer drills cut faster and run cooler than any other drill on the market. They have a full 3/8" (10 mm) deep cutting surface filled with diamonds and bronze bond, which allows for extended drill life, but also makes this style of drill more fragile. They should always be used in true running machines on flat glass surfaces. The CRL PD Series features an extra long 1-3/8" by 3/8" (35 by 10 mm) diameter shank for a positive grip on the drill. The CRL PDT Series features Belgian style mounting threads (also known as 1/2" (12.7 mm) gas thread), which are popular among all U.S. and European glass drilling machines. They can be used in portable drill machines such as the CRL AMZ1, but they are especially suited for production equipment.


NOTE: Always wear the proper safety gear including gloves and eye protection when drilling glass. Work should be performed on a flat, horizontal surface. A Ground Fault Circuit Interrupt Device (Cat. No. GF1) must be used when using any type of electric tool in conjunction with water or coolant. Failure to follow any of these precautions can result in operator injury.
