CRL PD12 1/2" PD Straight Series Metal Bond Diamond Drill

CRL PD12 1/2" PD Straight Series Metal Bond Diamond Drill

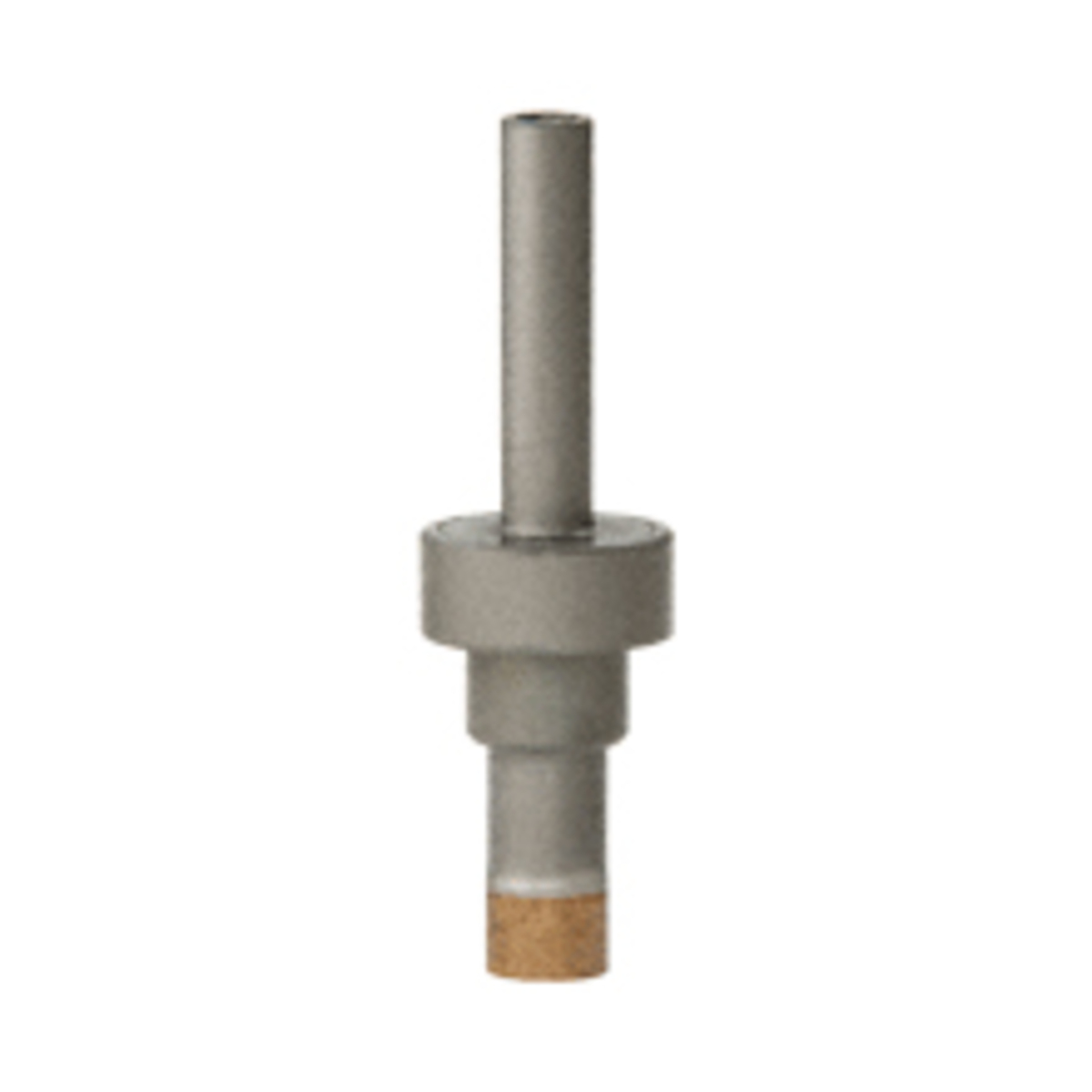

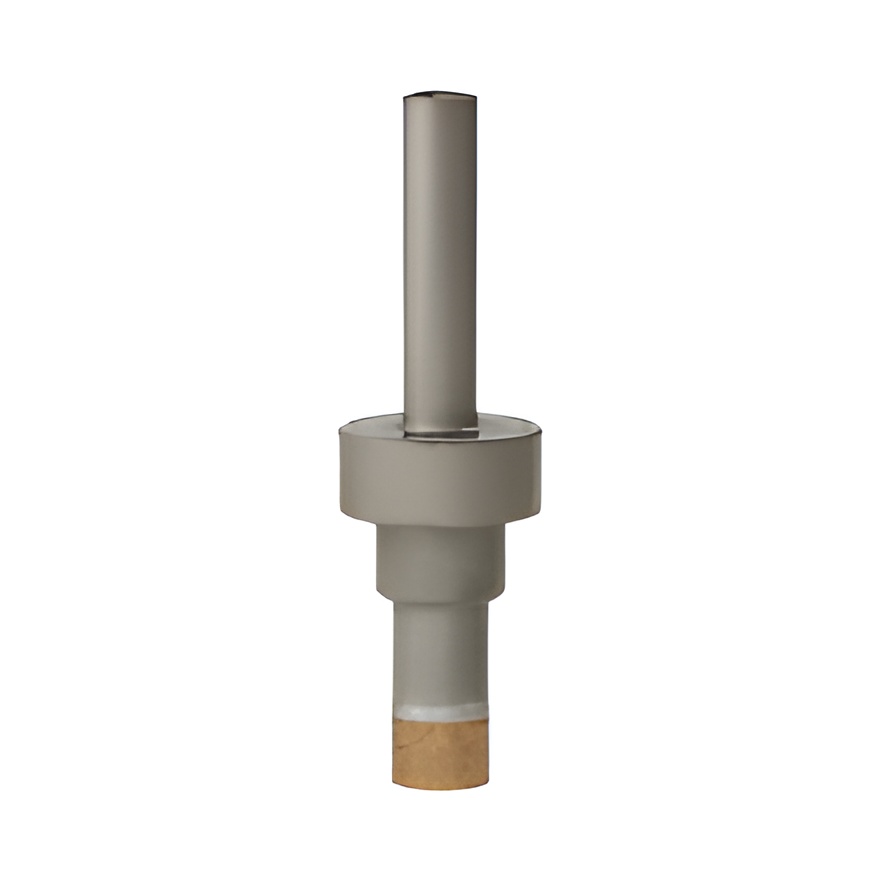

C.R. Laurence PD12 1/2" PD Straight Series Metal Bond Diamond Drill is engineered for high-volume glass fabrication, making it an essential tool for professionals in the industry. This drill features a robust 3/8" diamond matrix depth, delivering exceptional performance while cutting through glass with precision and speed. Designed with versatility in mind, the PD12 offers two mounting styles: a straight shank or Belgian thread, accommodating various drilling machines. The drill’s shaft measures 3/8" x 1-3/8" (10 x 35 mm), ensuring a secure and positive grip during operation. Crafted in Italy, these multi-layer drills are known for their longevity, capable of producing 1,000 to 2,000 holes in 1/4" (6.4 mm) glass with proper maintenance. The unique diamond and brass bond construction not only enhances cutting efficiency but also allows for cooler operation, minimizing the risk of overheating. It's essential to note that while this drill boasts impressive durability, it should be used with care on flat glass surfaces in true running machines to prevent breakage. For optimal safety, always wear the appropriate protective gear, and adhere to operational guidelines. The PD12 is a reliable choice that combines advanced technology with practical design, making it indispensable for glass fabricators.

1/2" PD Straight Series Metal Bond Diamond Drill

• Designed for High-Volume Glass Fabrication
• 3/8" Diamond Matrix Depth
• Two Mounting Styles to Choose From: Straight Shank or Belgian Thread
• PD Features 3/8" x 1-3/8" (10 x 35 mm) Shaft

CRL PD and PDT Series Metal Bond Diamond Drills use a special diamond and brass bond for maximum performance in glass. Metal Bond Drills offer the longest life of any type of diamond drill; 1,000 to 2,000 holes in 1/4" (6.4 mm) glass with proper maintenance and the use of a wet Sharpening Stone to expose fresh diamonds. These Italian made multi-layer drills cut faster and run cooler than any other drill on the market. They have a full 3/8" (10 mm) deep cutting surface filled with diamonds and bronze bond, which allows for extended drill life, but also makes this style of drill more fragile. They should always be used in true running machines on flat glass surfaces. The CRL PD Series features an extra long 1-3/8" by 3/8" (35 by 10 mm) diameter shank for a positive grip on the drill. The CRL PDT Series features Belgian style mounting threads (also known as 1/2" (12.7 mm) gas thread), which are popular among all U.S. and European glass drilling machines. They can be used in portable drill machines such as the CRL AMZ1,but they are especially suited for production equipment.


NOTE: Always wear the proper safety gear including gloves and eye protection when drilling glass. Work should be performed on a flat, horizontal surface. A Ground Fault Circuit Interrupt Device (Cat. No. GF1) must be used when using any type of electric tool in conjunction with water or coolant. Failure to follow any of these precautions can result in operator injury.
