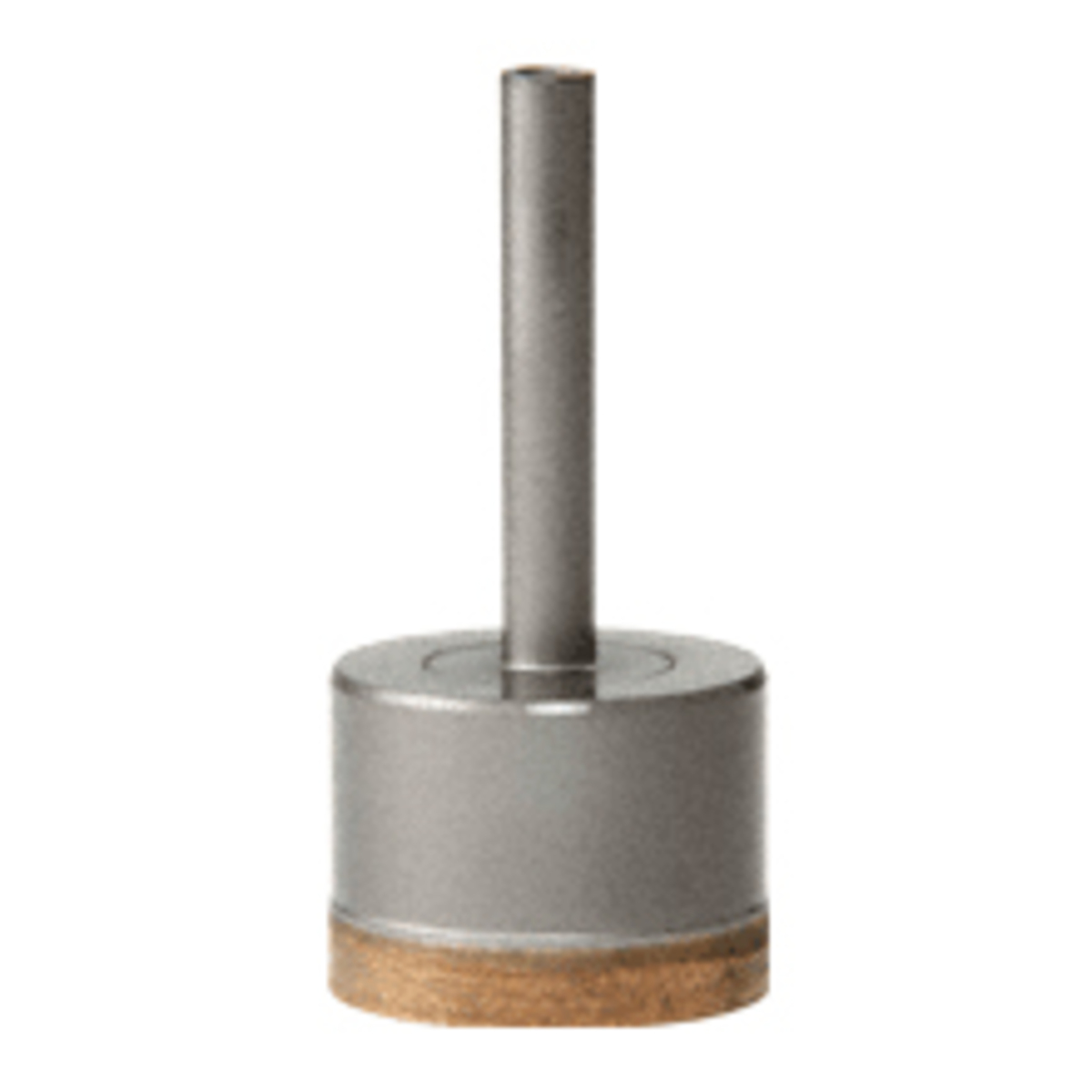

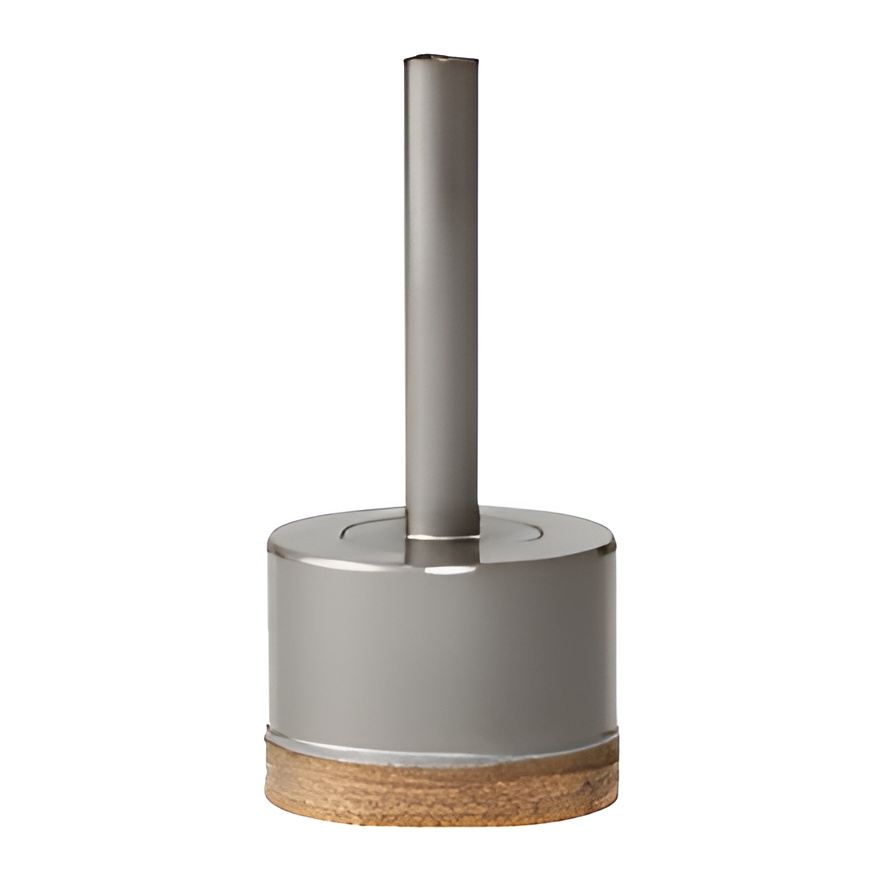

CRL PD134 1-3/4" PD Straight Series Metal Bond Diamond Drill

CRL PD134 1-3/4" PD Straight Series Metal Bond Diamond Drill

C.R. Laurence PD134 1-3/4" PD Straight Series Metal Bond Diamond Drill is expertly crafted for high-volume glass fabrication, delivering unparalleled efficiency and longevity. This drill features a robust 3/8" diamond matrix depth, ensuring maximum performance while cutting through glass. Designed with versatility in mind, it offers two mounting styles: a straight shank for a secure grip or Belgian thread, which is compatible with a wide range of U.S. and European glass drilling machines. Engineered with a special diamond and brass bond, the PD134 excels in producing 1,000 to 2,000 holes in 1/4" (6.4 mm) glass when properly maintained. Its Italian-made, multi-layer design cuts faster and runs cooler than other options available, making it an essential tool for any glass fabrication professional. With a shank length of 1-3/8" and a diameter of 3/8" (35 by 10 mm), it provides a positive grip, promoting stability during operation. Safety is paramount; always wear appropriate protective gear and work on flat, horizontal surfaces. The use of a Ground Fault Circuit Interrupt Device is also recommended when utilizing electric tools with water or coolant. The C.R. Laurence PD134 is your reliable partner in achieving precision and efficiency in your glass drilling tasks.

1-3/4" PD Straight Series Metal Bond Diamond Drill

• Designed for High-Volume Glass Fabrication
• 3/8" Diamond Matrix Depth
• Two Mounting Styles to Choose From, Straight Shank or Belgian Thread

CRL PD and PDT Series Metal Bond Diamond Drills use a special diamond and brass bond for maximum performance in glass. Metal Bond Drills offer the longest life of any type of diamond drill; 1,000 to 2,000 holes in 1/4" (6.4 mm) glass with proper maintenance and the use of a wet Sharpening Stone to expose fresh diamonds. These Italian made multi-layer drills cut faster and run cooler than any other drill on the market. They have a full 3/8" (10 mm) deep cutting surface filled with diamonds and bronze bond, which allows for extended drill life, but also makes this style of drill more fragile. They should always be used in true running machines on flat glass surfaces. The CRL PD Series features an extra long 1-3/8" by 3/8" (35 by 10 mm) diameter shank for a positive grip on the drill. The CRL PDT Series features Belgian style mounting threads (also known as 1/2" (12.7 mm) gas thread), which are popular among all U.S. and European glass drilling machines. They can be used in portable drill machines such as the CRL AMZ1, but they are especially suited for production equipment.


NOTE: Always wear the proper safety gear including gloves and eye protection when drilling glass. Work should be performed on a flat, horizontal surface. A Ground Fault Circuit Interrupt Device (Cat. No. GF1) must be used when using any type of electric tool in conjunction with water or coolant. Failure to follow any of these precautions can result in operator injury.
