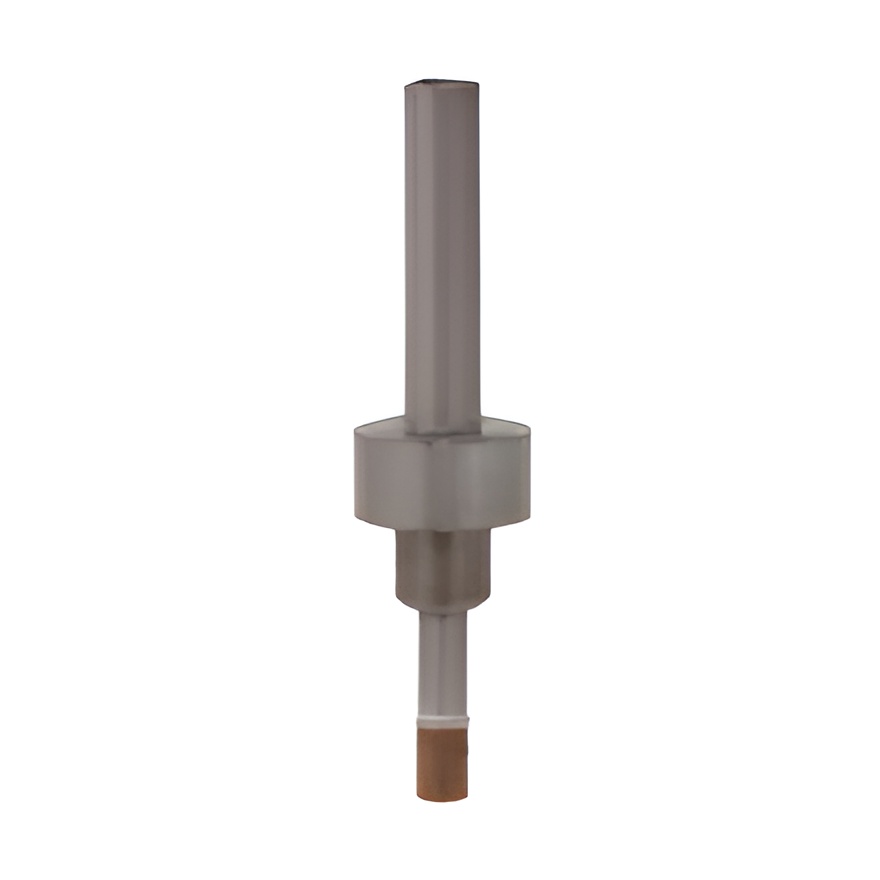

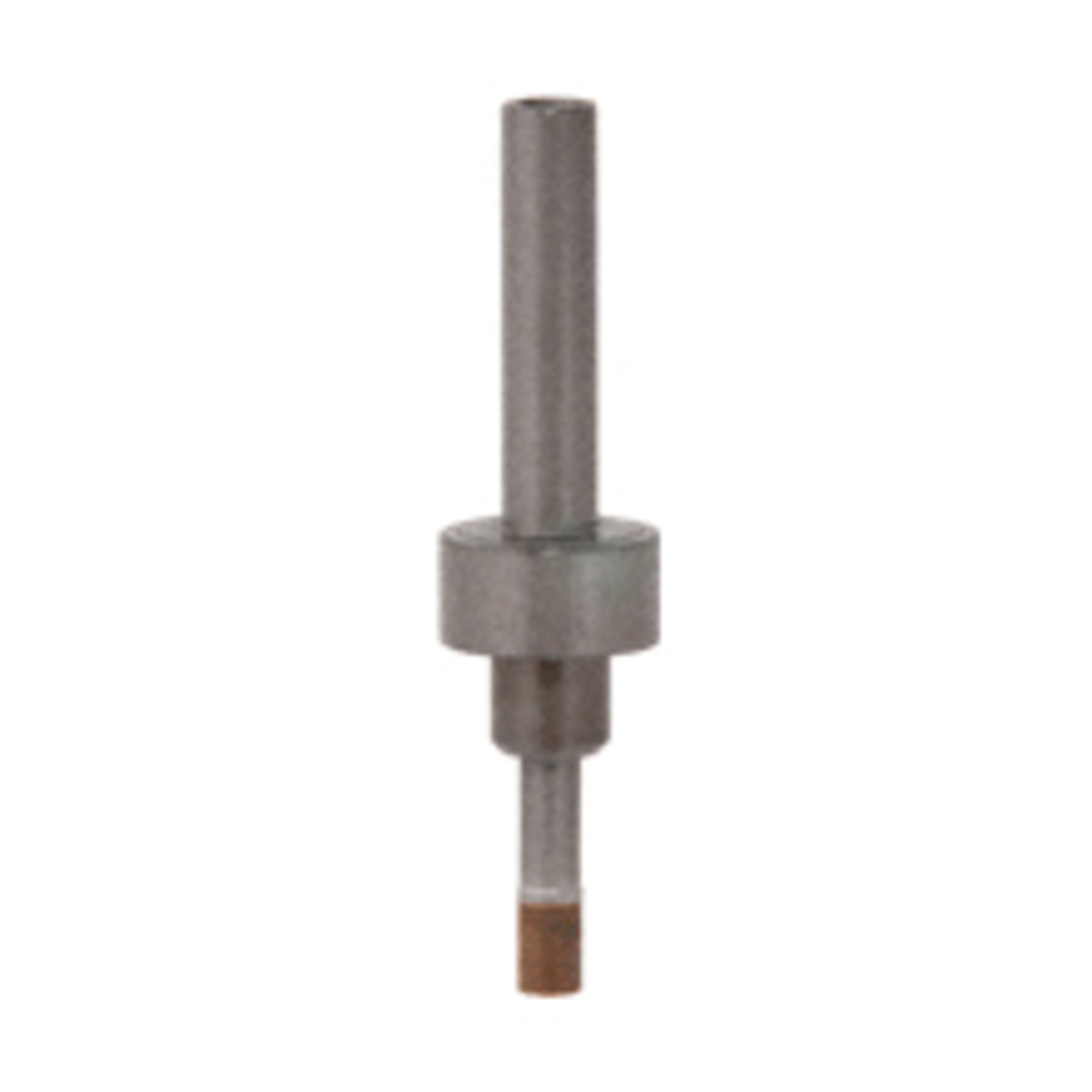

CRL PD14 1/4" PD Series Straight Metal Bond Diamond Drill

CRL PD14 1/4" PD Series Straight Metal Bond Diamond Drill

C.R. Laurence PD14 1/4" PD Series Straight Metal Bond Diamond Drill is engineered for high-volume glass fabrication, delivering unparalleled performance and longevity. With a robust 3/8" diamond matrix depth, this drill is designed to make quick work of tough glass materials, capable of drilling 1,000 to 2,000 holes in 1/4" (6.4 mm) glass when properly maintained. This Italian-made drill boasts a unique diamond and brass bond, ensuring it cuts faster and runs cooler than competitors. The PD14 features a 3/8" x 1-3/8" (10 x 35 mm) shaft that provides a secure grip, making it ideal for use in both portable and production equipment. Choose between two mounting styles-straight shank or Belgian thread-to suit your specific drilling needs. Safety is paramount; always use appropriate safety gear, including gloves and eye protection, when handling. The drill should be utilized on flat, horizontal surfaces, and a Ground Fault Circuit Interrupt Device is recommended for electric tools used with water or coolant. Experience efficiency and durability with the C.R. Laurence PD14, a reliable addition to any glass fabrication toolkit.

1/4" PD Series Straight Metal Bond Diamond Drill

• Designed for High-Volume Glass Fabrication
• 3/8" Diamond Matrix Depth
• Two Mounting Styles to Choose From: Straight Shank or Belgian Thread
• PD Features 3/8" x 1-3/8" (10 x 35 mm) Shaft

CRL PD and PDT Series Metal Bond Diamond Drills use a special diamond and brass bond for maximum performance in glass. Metal Bond Drills offer the longest life of any type of diamond drill; 1,000 to 2,000 holes in 1/4" (6.4 mm) glass with proper maintenance and the use of a wet Sharpening Stone to expose fresh diamonds. These Italian made multi-layer drills cut faster and run cooler than any other drill on the market. They have a full 3/8" (10 mm) deep cutting surface filled with diamonds and bronze bond, which allows for extended drill life, but also makes this style of drill more fragile. They should always be used in true running machines on flat glass surfaces. The CRL PD Series features an extra long 1-3/8" by 3/8" (35 by 10 mm) diameter shank for a positive grip on the drill. The CRL PDT Series features Belgian style mounting threads (also known as 1/2" (12.7 mm) gas thread), which are popular among all U.S. and European glass drilling machines. They can be used in portable drill machines such as the CRL AMZ1,but they are especially suited for production equipment.


NOTE: Always wear the proper safety gear including gloves and eye protection when drilling glass. Work should be performed on a flat, horizontal surface. A Ground Fault Circuit Interrupt Device (Cat. No. GF1) must be used when using any type of electric tool in conjunction with water or coolant. Failure to follow any of these precautions can result in operator injury.
