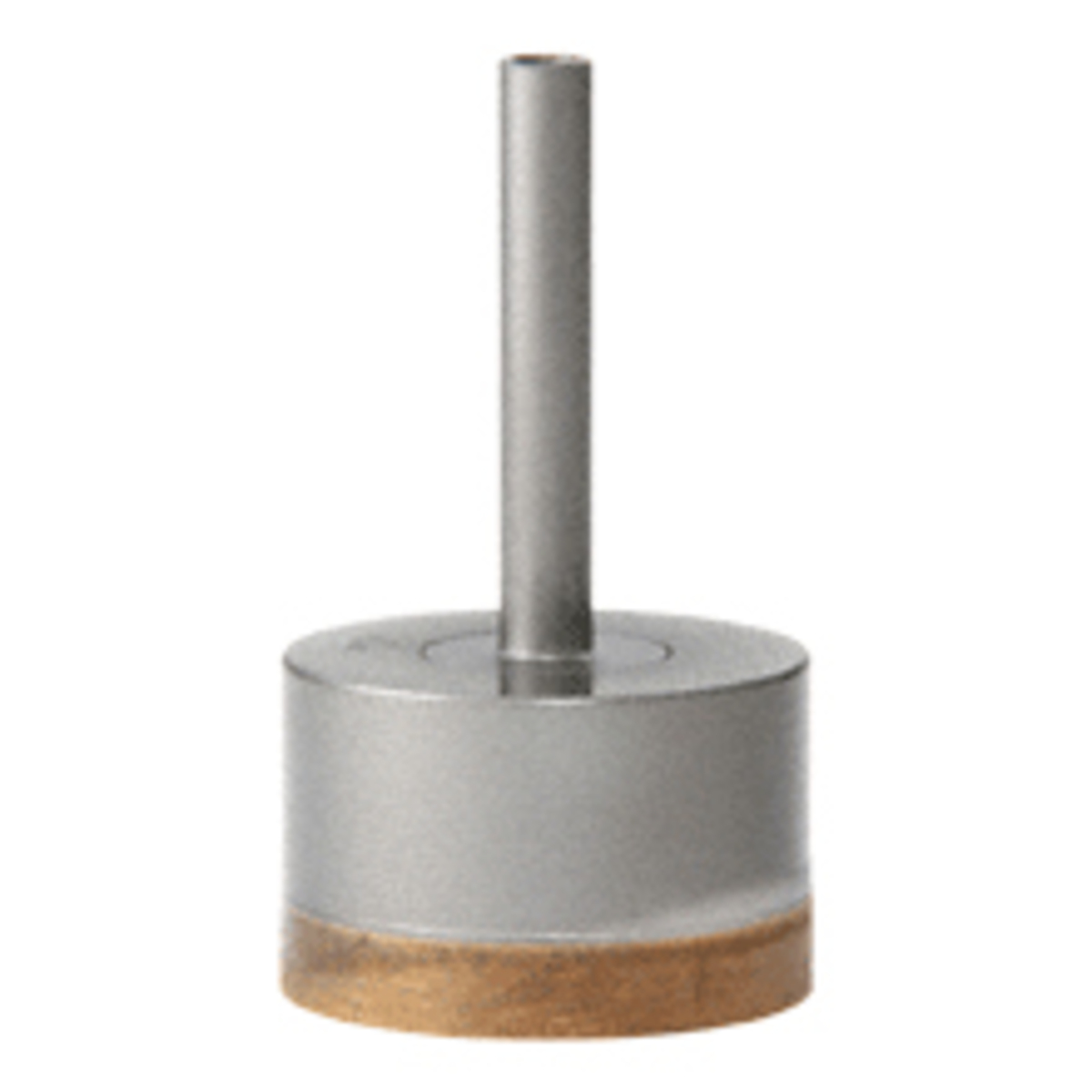

CRL PD218 2-1/8" PD Straight Series Metal Bond Diamond Drill

CRL PD218 2-1/8" PD Straight Series Metal Bond Diamond Drill

C.R. Laurence PD218 2-1/8" PD Straight Series Metal Bond Diamond Drill is expertly designed for high-volume glass fabrication, making it an invaluable tool for professionals in the industry. This drill features a robust 3/8" diamond matrix depth, which ensures exceptional cutting performance and longevity. With the capability to drill between 1,000 to 2,000 holes in 1/4" (6.4 mm) glass, the PD218 stands out for its durability when properly maintained. Crafted in Italy, this multi-layer drill operates cooler and cuts faster than its competitors, thanks to its unique diamond and brass bond. It’s available in two mounting styles: a straight shank for standard use and a Belgian thread option for compatibility with various European and U.S. glass drilling machines. The extra-long shank measures 1-3/8" by 3/8" (35 by 10 mm), providing a secure grip and stability during operation. For optimal safety, always wear gloves and eye protection while drilling, and ensure the work surface is flat and horizontal. Remember to use a Ground Fault Circuit Interrupt Device when using electric tools with water. The C.R. Laurence PD218 is a reliable choice for achieving precision and efficiency in glass drilling applications.

2-1/8" PD Straight Series Metal Bond Diamond Drill

• Designed for High-Volume Glass Fabrication
• 3/8" Diamond Matrix Depth
• Two Mounting Styles to Choose From, Straight Shank or Belgian Thread

CRL PD and PDT Series Metal Bond Diamond Drills use a special diamond and brass bond for maximum performance in glass. Metal Bond Drills offer the longest life of any type of diamond drill; 1,000 to 2,000 holes in 1/4" (6.4 mm) glass with proper maintenance and the use of a wet Sharpening Stone to expose fresh diamonds. These Italian made multi-layer drills cut faster and run cooler than any other drill on the market. They have a full 3/8" (10 mm) deep cutting surface filled with diamonds and bronze bond, which allows for extended drill life, but also makes this style of drill more fragile. They should always be used in true running machines on flat glass surfaces. The CRL PD Series features an extra long 1-3/8" by 3/8" (35 by 10 mm) diameter shank for a positive grip on the drill. The CRL PDT Series features Belgian style mounting threads (also known as 1/2" (12.7 mm) gas thread), which are popular among all U.S. and European glass drilling machines. They can be used in portable drill machines such as the CRL AMZ1, but they are especially suited for production equipment.


NOTE: Always wear the proper safety gear including gloves and eye protection when drilling glass. Work should be performed on a flat, horizontal surface. A Ground Fault Circuit Interrupt Device (Cat. No. GF1) must be used when using any type of electric tool in conjunction with water or coolant. Failure to follow any of these precautions can result in operator injury.
