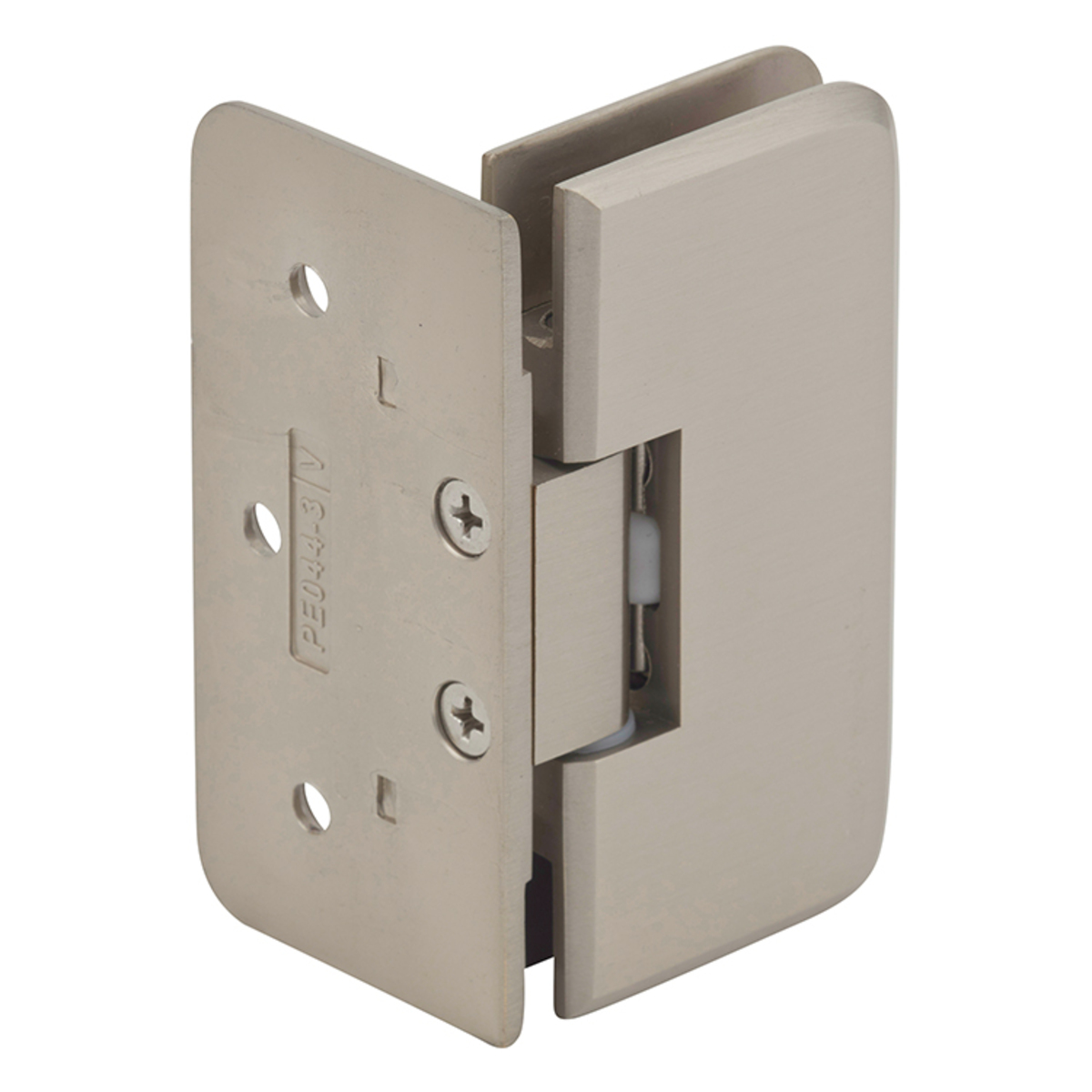

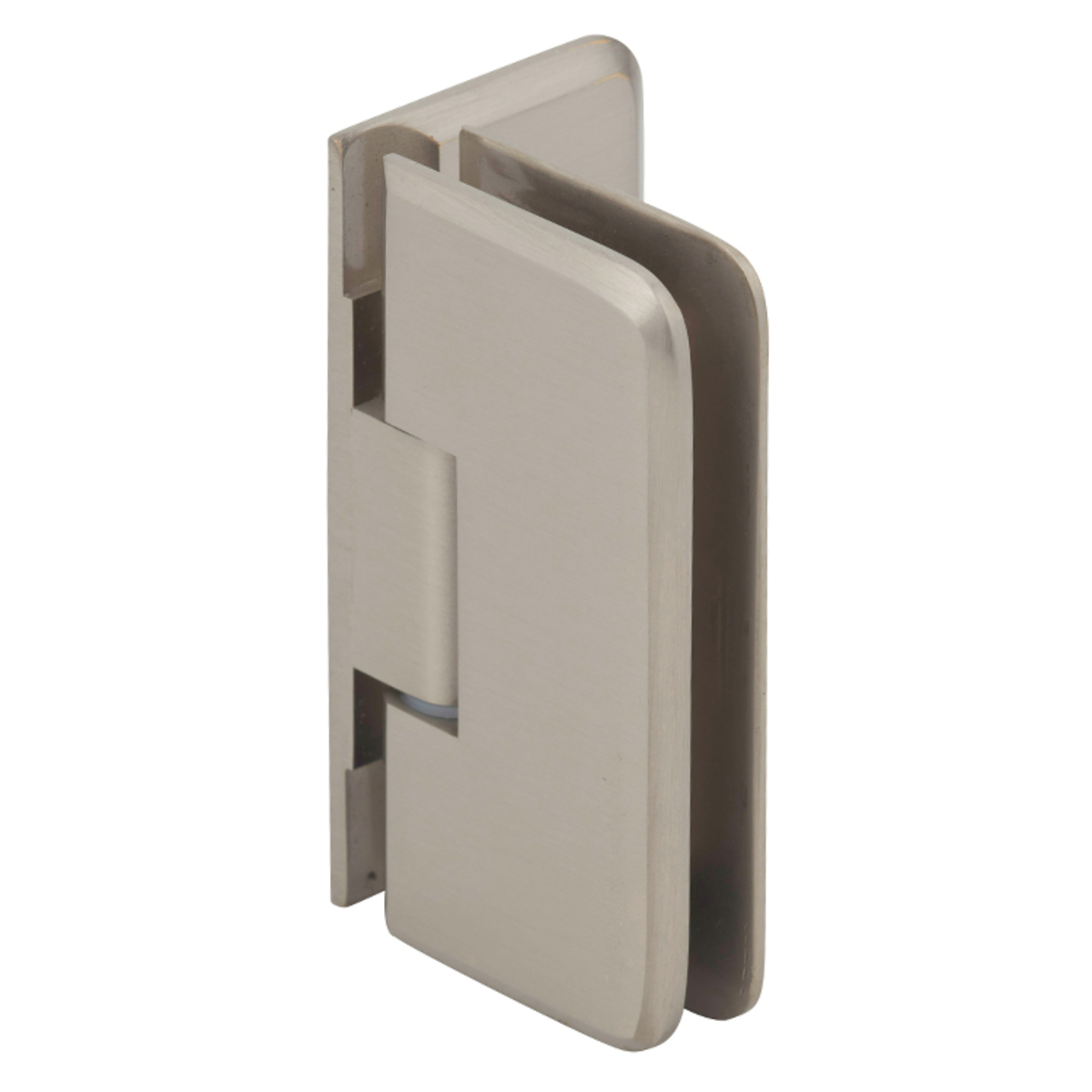

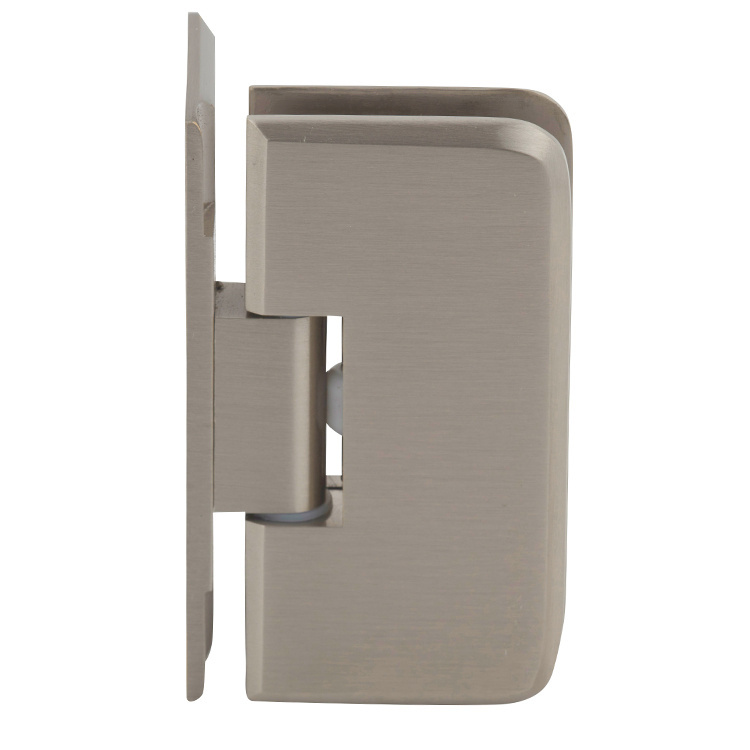

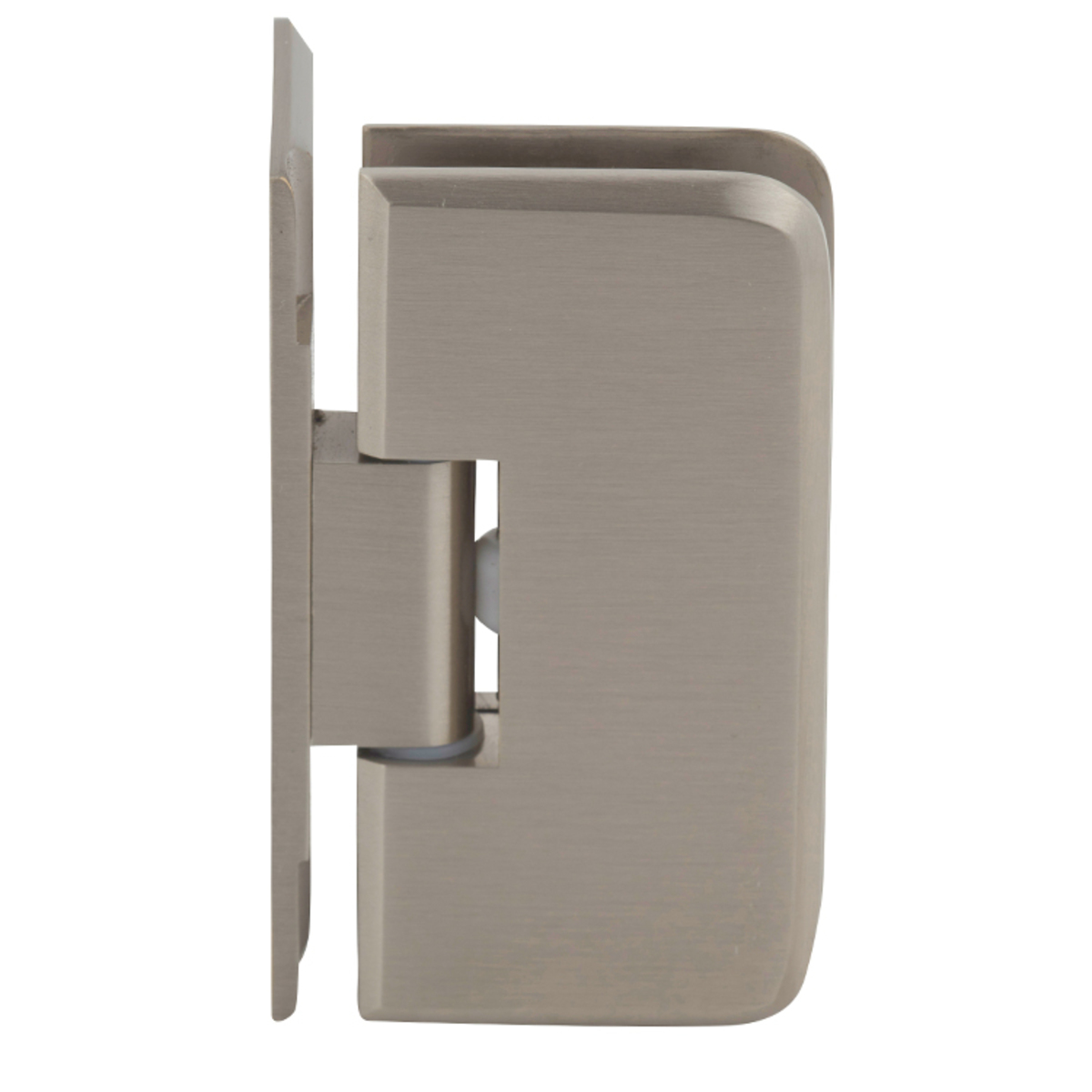

CRL PET044BN Brushed Nickel 044 Series Wall Mount Offset Back Plate Hinge

CRL PET044BN Brushed Nickel 044 Series Wall Mount Offset Back Plate Hinge

C.R. Laurence PET044BN Brushed Nickel Petite 044 Series Wall Mount Offset Back Plate Hinge offers a sophisticated solution for frameless shower door installations. This hinge is designed for use with 1/4" (6 mm) to 5/16" (8 mm) tempered safety glass, ensuring both safety and style. The wall mount offset back plate allows for a clean sight line from the exterior of the shower, enhancing the overall aesthetic of your bathroom. Engineered for precision, the PET044BN hinge features a closing mechanism that allows the door to close seamlessly to zero degrees, making it both functional and elegant. Its solid brass construction guarantees durability, while the hinge plates are 25% thicker than competitive options, reducing deflection and providing superior holding power. This hinge supports a maximum door weight of 55 lbs. (25 kg) with two hinges and 82 lbs. (37 kg) when using three hinges, accommodating door widths of 31" (787 mm) and 34" (864 mm) respectively. Available in beautiful brushed nickel and other finishes, the PET044BN is backed by a 3-year warranty, ensuring peace of mind. For a polished finish to your shower design, trust the quality and craftsmanship of C.R. Laurence.

Brushed Nickel Petite 044 Series Wall Mount Offset Back Plate Hinge

• Wall Mount Offset Back Plate (Allows Clean Sight Line From Shower Exterior)
• Precise Closing Feature to Zero Degrees
• Available in Several Beautiful Finishes
• 3 Year Warranty
• Use Monolithic Tempered Glass

The CRL Petite Series provides a complete spectrum of Hinges for frameless shower doors using 1/4" (6 mm) to 5/16" (8 mm) tempered safety glass. Developed to allow virtually every application configuration, they deliver design freedom. The Petite Series includes three unique types: The PET044 Wall Mount Flush Back Plate Hinge allows for a clean exterior sight line by having all mounting screws inside the shower; the PET181 Glass-to-Glass Hinge is used to mount a door to a fixed panel in a 180 degree plane, and allows the door to swing in a complete 180 degree arc outwards; the PET182 Glass-to-Glass Hinge allows the door to swing in a complete 180 degree arc inwards. Petite Hinges have mitered edges with curved corners to provide an aesthetically pleasing look. Petite Hinges have 25% thicker plates than competitive Hinges, thereby reducing deflection and providing greater holding power.


Using two hinges with 1/4" or 5/16" glass (6 or 8 mm) the hinge will hold up to 55 lbs. (25 kg) with a maximum door width of 31" (787 mm).

Using three hinges with 1/4" or 5/16" glass (6 or 8 mm) the hinge will hold up to 82 lbs. (37 kg) with a maximum door width of 34" (864 mm).

SPECIFICATIONS:
Glass Thickness: 1/4" (6 mm) to 5/16" (8 mm) Tempered Safety Glass
Special Features: Hinge plates are 25% thicker than competitive hinges, thereby reducing deflection and providing greater holding power.
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out (Except PET045, PET054, PET135, PET181, and PET182)
Closing Type: Precise Closing to 0 degree
Cut-Out Required (Except PET181 and PET182, which require holes only).
Includes: Gaskets, Screws, and Glass Fabrication Dimensions

Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
