C.R. Laurence PH10CA Satin Anodized Bottom Door Patch with 1NT301 Insert offers an efficient and stylish solution for securing glass doors. Designed for use with 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass, this patch fitting is essential for those seeking durability and aesthetic appeal in their architectural projects. With a pivot setback of 2-3/4" (70 mm), it fits seamlessly into the lower corner of the glass panel, providing reliable support for bottom door pivots or floor closers. For installation, a glass fabrication process is required, including a 3/4" (19 mm) diameter hole and a corner notch, ensuring a precise fit. Each package includes a template and detailed instructions to facilitate a straightforward installation process. The satin anodized finish not only enhances the visual appeal but also offers resistance to wear and corrosion, making it suitable for high-traffic areas. However, it is important to note that these fittings are not compatible with laminated glass. The PH10CA can accommodate doors with a maximum height of 102" (2591 mm), weight of 194 lbs (88 kg), and width of 42" (1092 mm), ensuring robust performance in various applications.

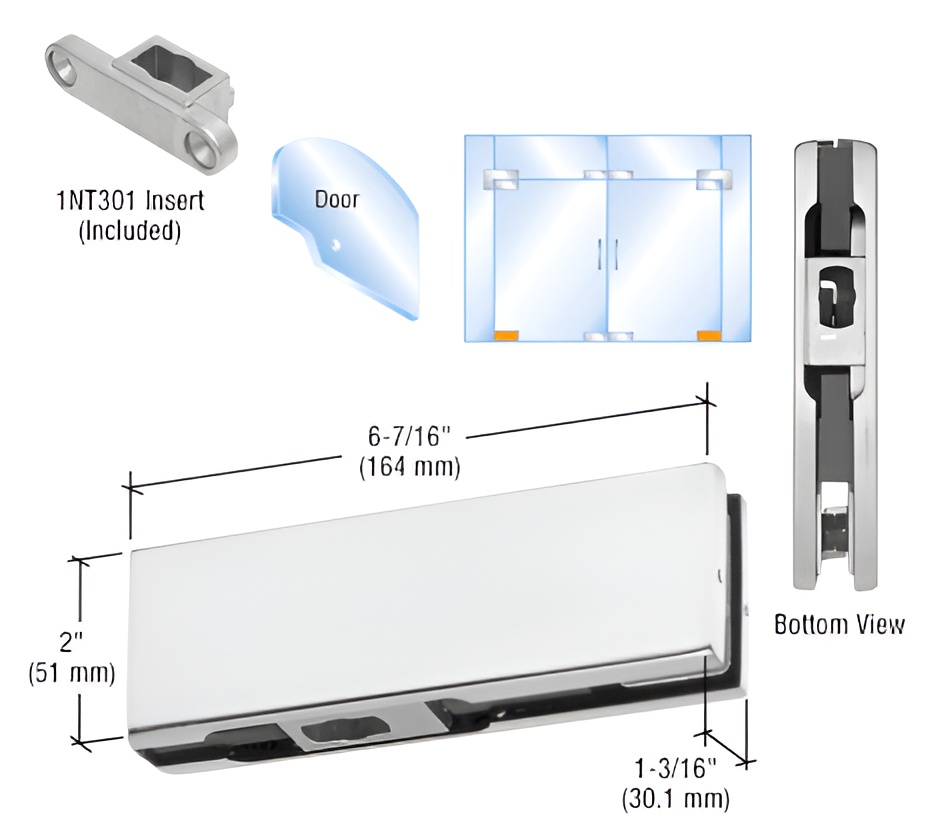

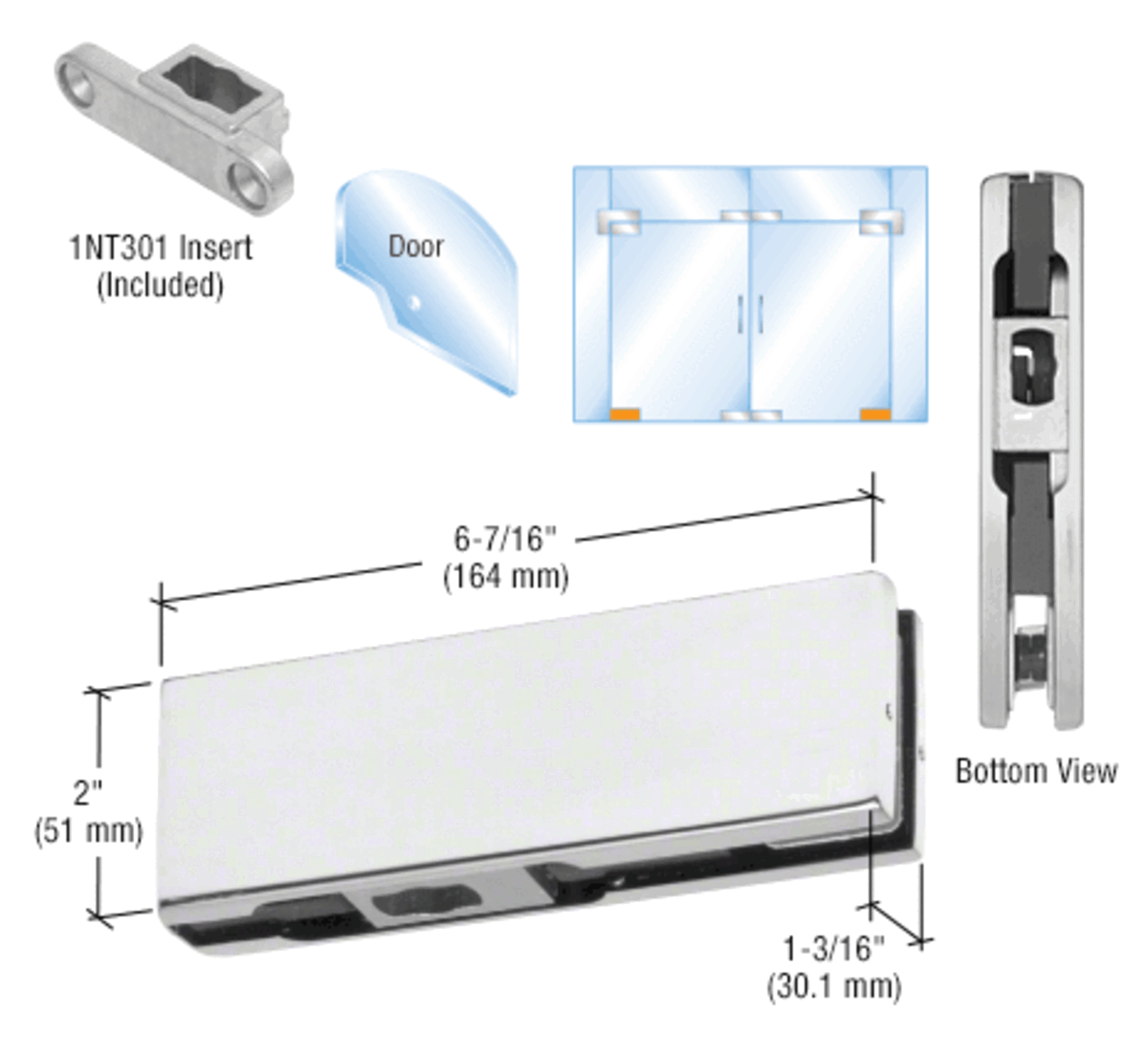

Satin Anodized Bottom Door Patch with 1NT301 Insert
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Satin Anodized
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Insert Type: 1NT301
Pivot Setback: 2-3/4
Shipping Limitations: None
Type: Bottom
With Insert: Yes
