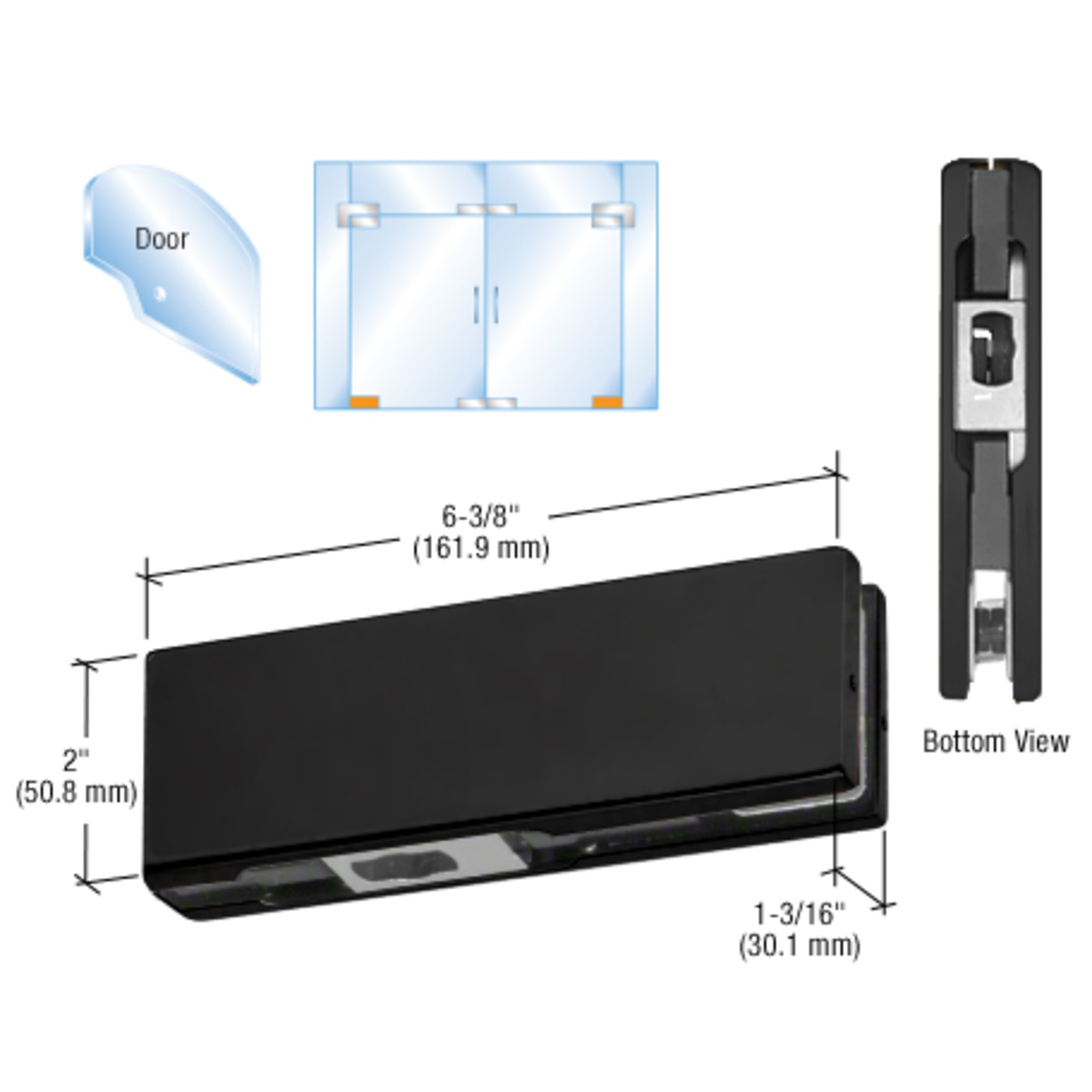

C.R. Laurence PH10CMBL Matte Black Bottom Door Patch with 1NT301 Insert is an essential component for any glass door installation, providing both functionality and sleek aesthetics. Designed for use with 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass, this bottom gate patch fitting is ideal for enhancing the durability and performance of your glass doors. With a pivot setback of 2-3/4" (70 mm), this fitting accommodates various door designs while ensuring smooth operation. The installation process is straightforward, as it includes detailed instructions and a glass cut-out template, allowing for precise fabrication. Please note that a 3/4" (19 mm) diameter hole and corner notch are required for installation. This matte black finish not only offers a modern touch but also complements a range of architectural styles. However, it is important to remember that this fitting is not suitable for laminated glass. When utilizing this hardware for a 1/2" glass door, adhere to the specified maximum height of 102" (2.59 m), weight limit of 176 lbs. (80 kg), and width of 42" (1.09 m) to ensure optimal performance. Upgrade your glass door systems with the reliability and elegance of C.R. Laurence’s PH10CMBL Bottom Door Patch.
Matte Black Bottom Door Patch with 1NT301 Insert
CRL Bottom Gate Patch Fittings are used with our bottom door pivots or floor closers. It fits in the lower corner of the gate's glass panel, and requires a hole and cut-out in the glass. Available in brushed stainless steel finish, it comes complete with instructions and a glass cut-out template.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Matte Black
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Insert Type: 1NT301
Pivot Setback: 2-3/4
Shipping Limitations: None
Type: Bottom
With Insert: Yes
