C.R. Laurence PH10CPS Polished Stainless Bottom Door Patch with 1NT301 Insert is an essential component for enhancing the functionality and aesthetics of glass doors. Designed for use with 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass, this bottom gate patch fitting is perfect for those seeking a sleek and modern look. With a pivot setback of 2-3/4" (70 mm), it offers precise alignment and stability, making it suitable for various commercial and residential applications. Installation is straightforward, as the package includes a glass cut-out template and clear instructions, ensuring professional results. The polished stainless steel finish not only adds a touch of elegance but also provides durability against wear and tear, although periodic maintenance is recommended to preserve its factory appearance. It's important to note that the fittings are not compatible with laminated glass, and specific guidelines should be followed when creating a 1/2" glass door. This includes adhering to maximum height and weight restrictions of 102" (2.59 m) and 176 lbs. (80 kg), as well as a maximum width of 42" (1.09 m). C.R. Laurence's commitment to quality ensures that this bottom door patch will meet and exceed your glazing needs.

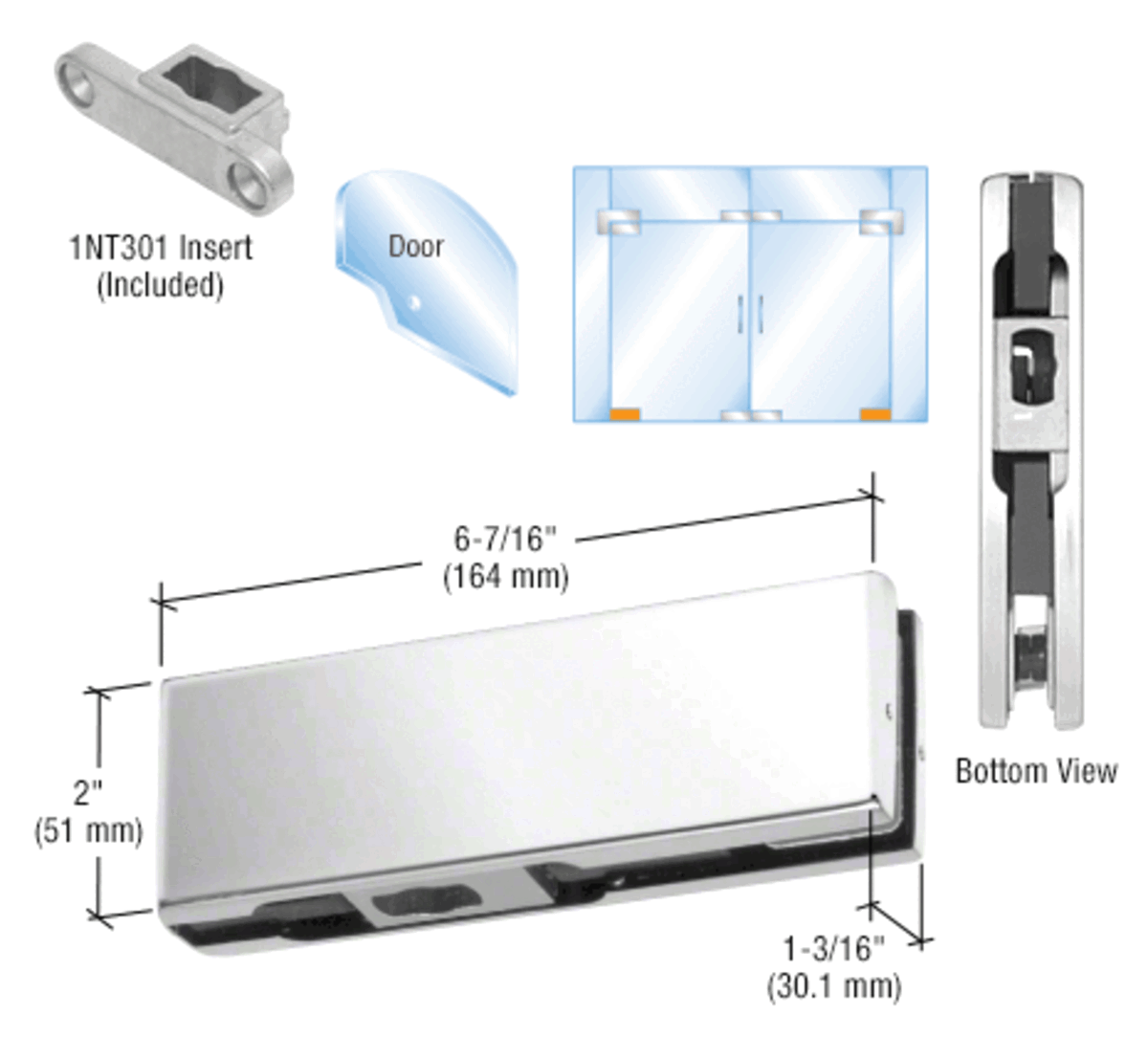

Polished Stainless Bottom Door Patch with 1NT301 Insert
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Polished Stainless Steel
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Insert Type: 1NT301
Pivot Setback: 2-3/4
Shipping Limitations: None
Type: Bottom
With Insert: Yes
