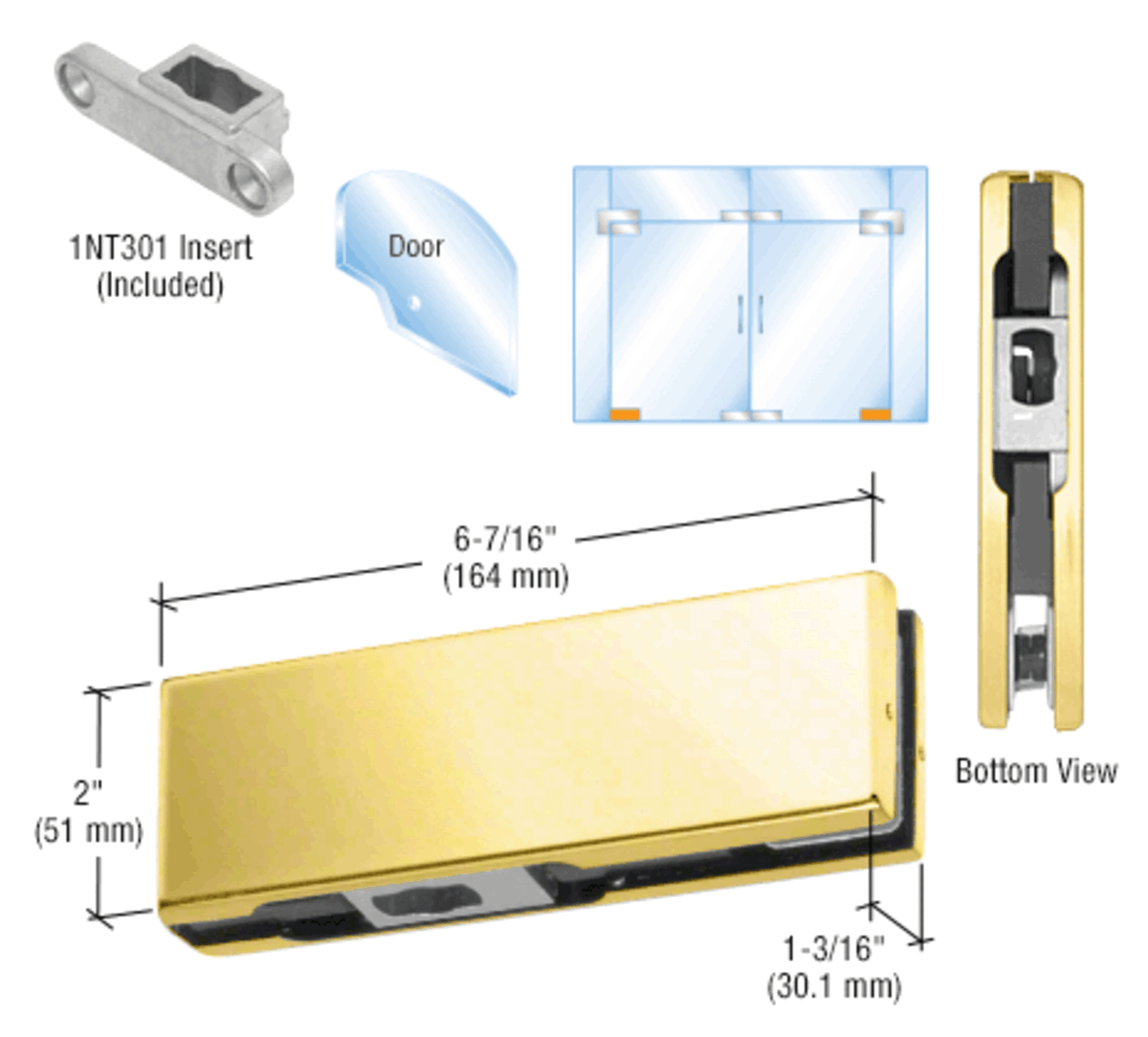

C.R. Laurence PH10CSB Satin Brass Bottom Door Patch with 1NT301 Insert is a premium solution for securing glass doors with style and functionality. Designed specifically for use with 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass, this bottom gate patch fitting enhances the performance of your bottom door pivots or floor closers. With a 2-3/4" (70 mm) pivot setback, this patch fits snugly into the lower corner of the glass panel, requiring a 3/4" (19 mm) diameter hole and corner notch for installation. Each unit includes a detailed template and comprehensive instructions, ensuring a straightforward installation process. This product is crafted in a sleek satin brass finish, adding a touch of elegance to any architectural design. While durable, it is important to note that brass can be prone to oxidation, which may lead to a tarnished appearance over time. The PH10CSB is not suitable for laminated glass and has specific height and weight limitations for optimal use-maximum door height of 102" (2.59 m) and maximum weight of 176 lbs. (80 kg). For building professionals and discerning homeowners, the C.R. Laurence PH10CSB is a reliable choice that combines practical engineering with aesthetic appeal.
Satin Brass Bottom Door Patch with 1NT301 Insert
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Satin Brass
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Insert Type: 1NT301
Pivot Setback: 2-3/4
Shipping Limitations: None
Type: Bottom
With Insert: Yes
