CRL PH10DBS Brushed Stainless Bottom Door Patch with 1NT302 Insert

Your Price: $56.79

Retail Price:$67.98

Your Savings:$11.19(16%)

The CRL PH10DBS Brushed Stainless Bottom Door Patch offers durability and versatility for 3/8" or 1/2" glass doors.

Part Number : CRL_PH10DBS

Availability: 48 In Stock

Quantity

Description

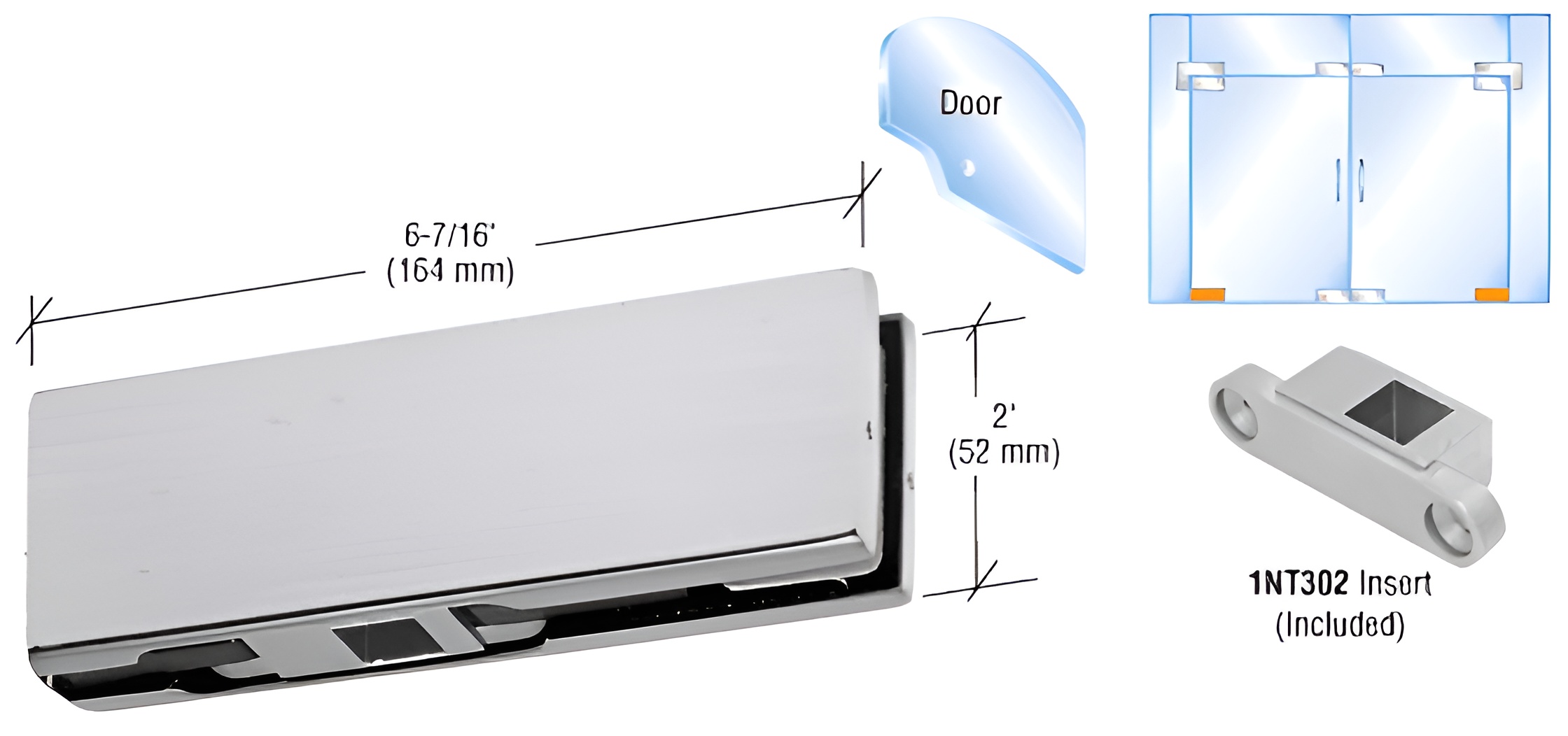

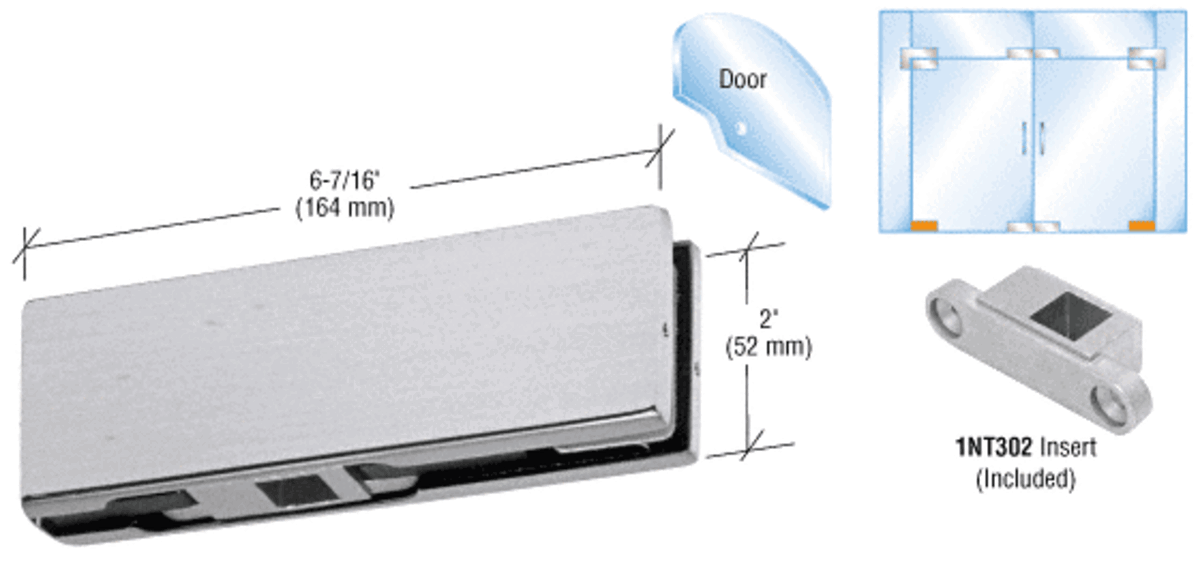

CRL PH10DBS Brushed Stainless Bottom Door Patch with 1NT302 Insert

C.R. Laurence PH10DBS Brushed Stainless Bottom Door Patch With 1NT302 Insert is a robust and versatile solution for your glass door installations. Designed with a 2-3/4" pivot setback, this patch fitting is crafted from high-density cast body material, ensuring durability and stability. It accommodates both 3/8" and 1/2" (10 mm and 12 mm) glass, making it suitable for various applications. Included with the PH10DBS is the No. 1NT302 insert, specifically designed for use with tapered square style spindle Casma Floor Closers or the 1NT404 Free Swing Pivots, providing seamless integration into your door hardware system. The fitting also comes with gaskets, simplifying the installation process for different glass thicknesses. For glass fabrication, a 3/4" (19 mm) diameter hole and corner notch are required. This product supports glass doors with a maximum height of 102" (2.59 m), a weight limit of 194 lbs. (80 kg), and a maximum width of 42" (1.09 m). Note that laminated glass is not compatible with this fitting. Finished in brushed stainless steel, the PH10DBS not only offers a sleek aesthetic but also requires periodic maintenance to uphold its appearance. Template and instructions are included for easy installation.

Brushed Stainless Bottom Door Patch With 1NT302 Insert

2-3/4" (70 mm) Pivot Setback
High Density Cast Body
For 3/8" or 1/2" (10 or 12 mm) Glass

The CRL Bottom Door Patch Fitting includes the No. 1NT302 Insert for use with tapered square style spindle Casma Floor Closers or 1NT404 Free Swing Pivots. Finished covers are available in five standard finishes. Gaskets are supplied that allow this Patch Fitting to be used with either 3/8" or 1/2" (10 or 12 mm) Glass.

GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch

COMES WITH:
Template and Instructions

Product Warning:

These fittings are not for use with Laminated Glass.

The following guidelines are to be used when making a 1/2" glass door using this hardware:

Maximum Height: 102" (2.59 m)
Maximum Weight: 194 Lbs. (80 kg)
Maximum Width: 42" (1.09 m)

If the door exceeds any of these limitations, full door rails should be used.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory:

Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.

Attributes

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Finish/ Color:: Brushed Stainless Steel

Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)

Height: 2 in. (51 mm)

Insert Type: 1NT302

Length: 6-7/16 in. (164 mm)

Pivot Setback: 2-3/4

Shipping Limitations: None

Type: Bottom

With Insert: Yes
