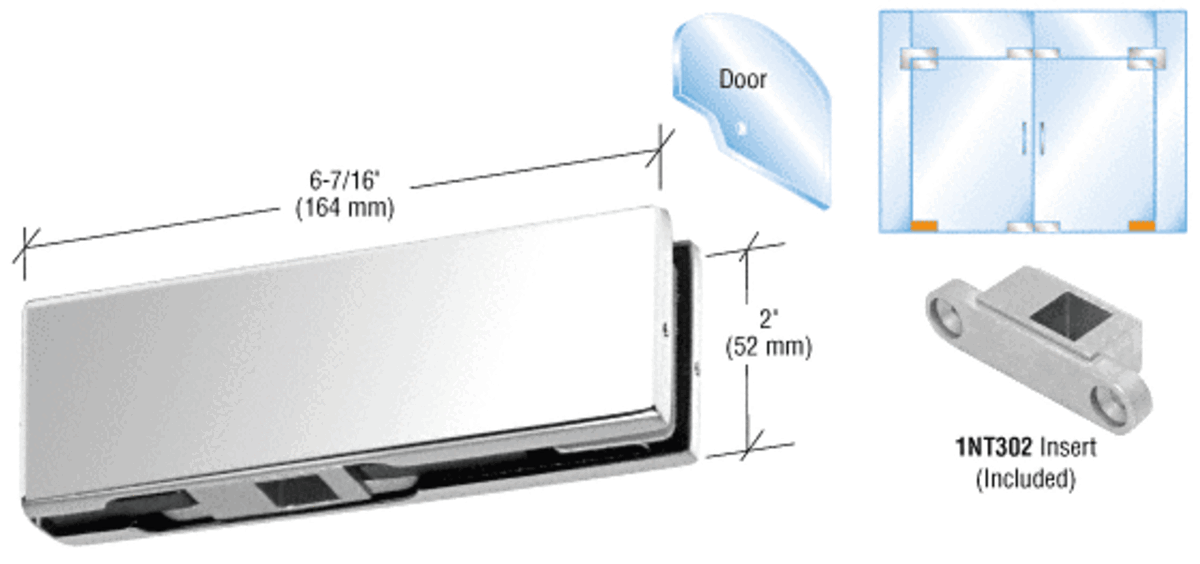

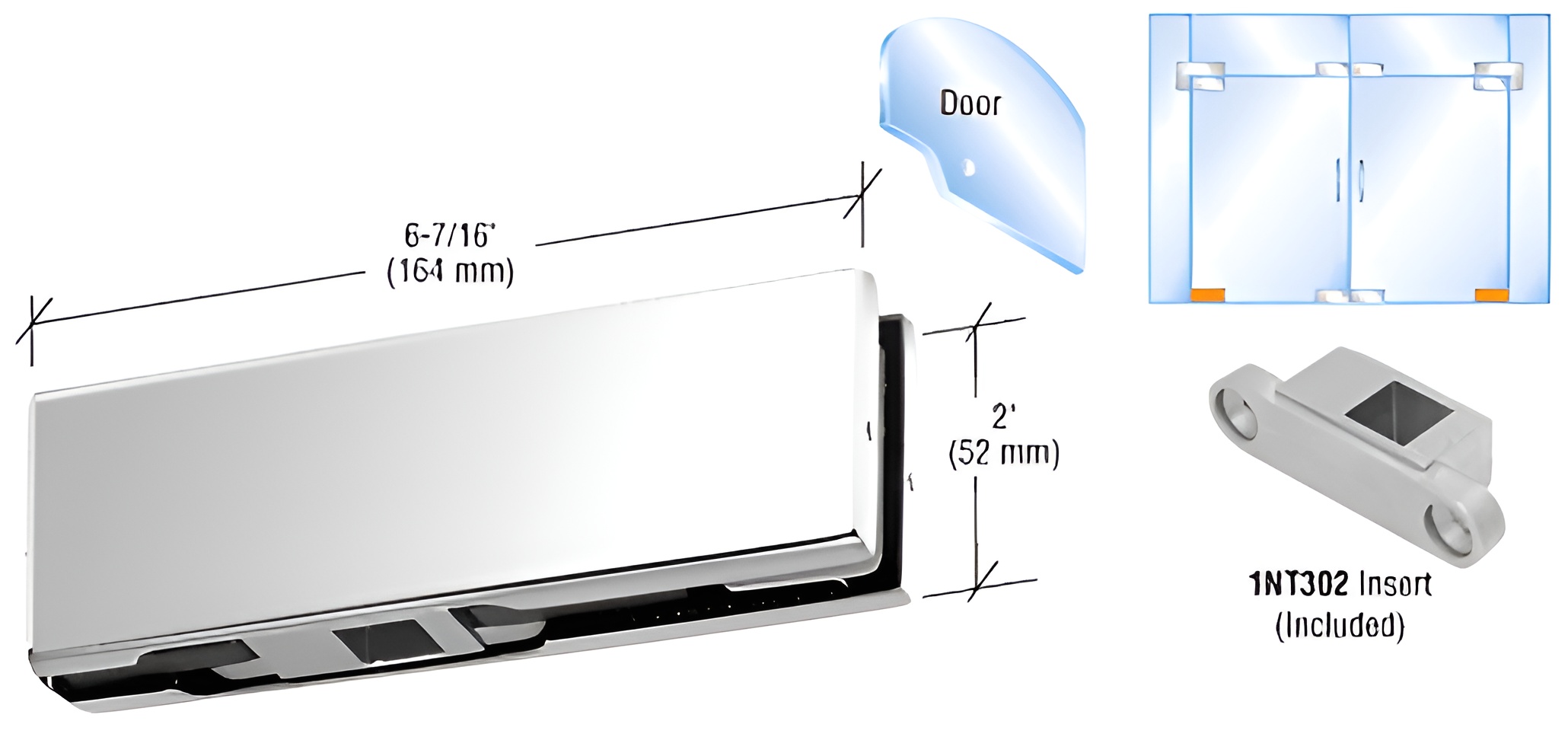

CRL PH10DPS Polished Stainless Steel Bottom Door Patch with 1NT302 Insert

Your Price: $58.21

Retail Price:$69.68

Your Savings:$11.47(16%)

The CRL PH10DPS Polished Stainless Bottom Door Patch offers durability and versatility for 3/8" or 1/2" glass doors.

Part Number : CRL_PH10DPS

Availability: 152 In Stock

Quantity

Description

CRL PH10DPS Polished Stainless Steel Bottom Door Patch with 1NT302 Insert

C.R. Laurence PH10DPS Polished Stainless Bottom Door Patch With 1NT302 Insert is designed for seamless integration in contemporary glass door systems. Featuring a 2-3/4" pivot setback, this bottom door patch is engineered for durability with its high-density cast body, making it suitable for 3/8" or 1/2" (10 or 12 mm) glass applications. The inclusion of the No. 1NT302 insert allows compatibility with tapered square style spindle Casma Floor Closers and 1NT404 Free Swing Pivots, ensuring versatile installation options. This fitting comes with essential gaskets that accommodate both glass thicknesses, providing a secure and reliable fit. Easy to install, the PH10DPS includes a template and instructions for straightforward setup. For optimal performance, it is important to adhere to the specified limits: a maximum height of 102" (2.59 m), weight of 194 lbs. (80 kg), and width of 42" (1.09 m). Exceeding these parameters requires the use of full door rails. Crafted in polished stainless steel, the PH10DPS not only ensures a sleek aesthetic but also requires periodic maintenance to preserve its finish. Please note that this fitting is not suitable for laminated glass, making it ideal for standard glass systems.

Polished Stainless Bottom Door Patch With 1NT302 Insert

2-3/4" (70 mm) Pivot Setback
High Density Cast Body
For 3/8" or 1/2" (10 or 12 mm) Glass

The CRL Bottom Door Patch Fitting includes the No. 1NT302 Insert for use with tapered square style spindle Casma Floor Closers or 1NT404 Free Swing Pivots. Finished covers are available in five standard finishes. Gaskets are supplied that allow this Patch Fitting to be used with either 3/8" or 1/2" (10 or 12 mm) Glass.

GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch

COMES WITH:
Template and Instructions

Product Warning:

These fittings are not for use with Laminated Glass.

The following guidelines are to be used when making a 1/2" glass door using this hardware:

Maximum Height: 102" (2.59 m)
Maximum Weight: 194 Lbs. (80 kg)
Maximum Width: 42" (1.09 m)

If the door exceeds any of these limitations, full door rails should be used.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory:

Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.

Attributes

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Finish/ Color:: Polished Stainless Steel

Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)

Height: 2 in. (51 mm)

Insert Type: 1NT302

Length: 6-7/16 in. (164 mm)

Pivot Setback: 2-3/4

Shipping Limitations: None

Type: Bottom

With Insert: Yes
