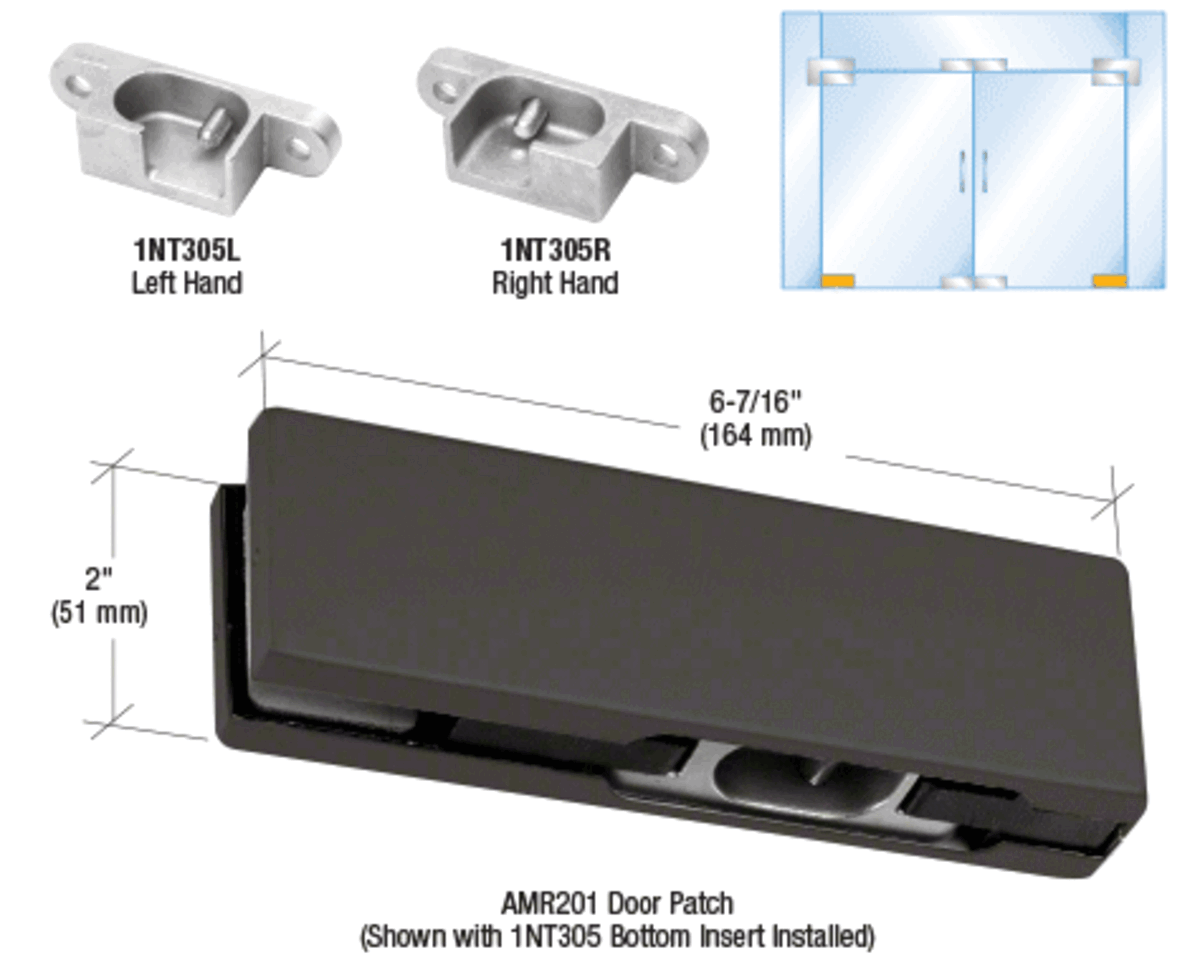

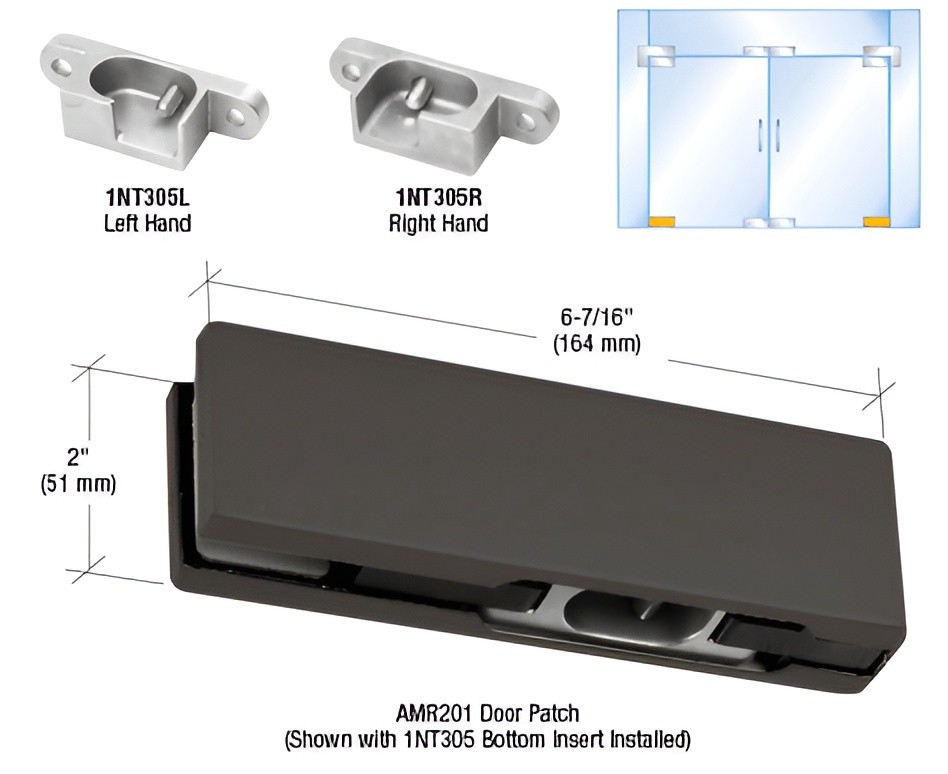

C.R. Laurence PH10ELDU Black Bronze Anodized LH North American Bottom Door Patch Fitting is expertly designed for use with 3/8" or 1/2" (10 or 12 mm) tempered glass, making it an ideal choice for Herculite™+ style doors. This bottom door patch fitting features a 2-3/4" (70 mm) pivot setback, facilitating smooth and efficient operation while ensuring a secure fit. Included with the fitting are essential components such as the AMR201 Door Patch, both left (1NT305L) and right (1NT305R) bottom door patches, and insert gaskets tailored for 3/8" or 1/2" glass. Note that glass fabrication requires a 3/4" (19 mm) diameter hole and a corner notch, with templates available at crlaurence.com to ease the installation process. Crafted with a sleek black bronze anodized finish, this product not only enhances the aesthetic appeal of your glass installations but also provides durability and longevity. Adhering to GANA guidelines, the PH10ELDU fitting is designed with safety and compliance in mind, making it a reliable choice for professionals and discerning homeowners alike. Elevate your architectural projects with this high-quality door patch fitting from C.R. Laurence.
Black Bronze Anodized LH North American Bottom Door Patch Fitting
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Black Bronze Anodized
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Handing: Left Hand
Insert Type: 1NT305L
Pivot Setback: 2-3/4
Series: North American
Shipping Limitations: None
Type: Bottom
With Insert: Yes
