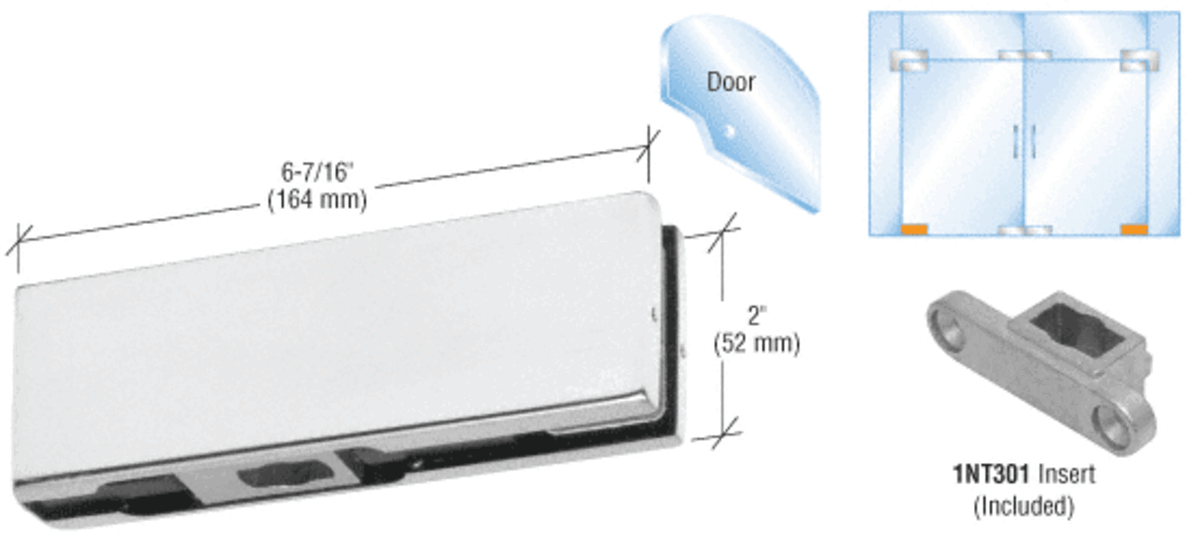

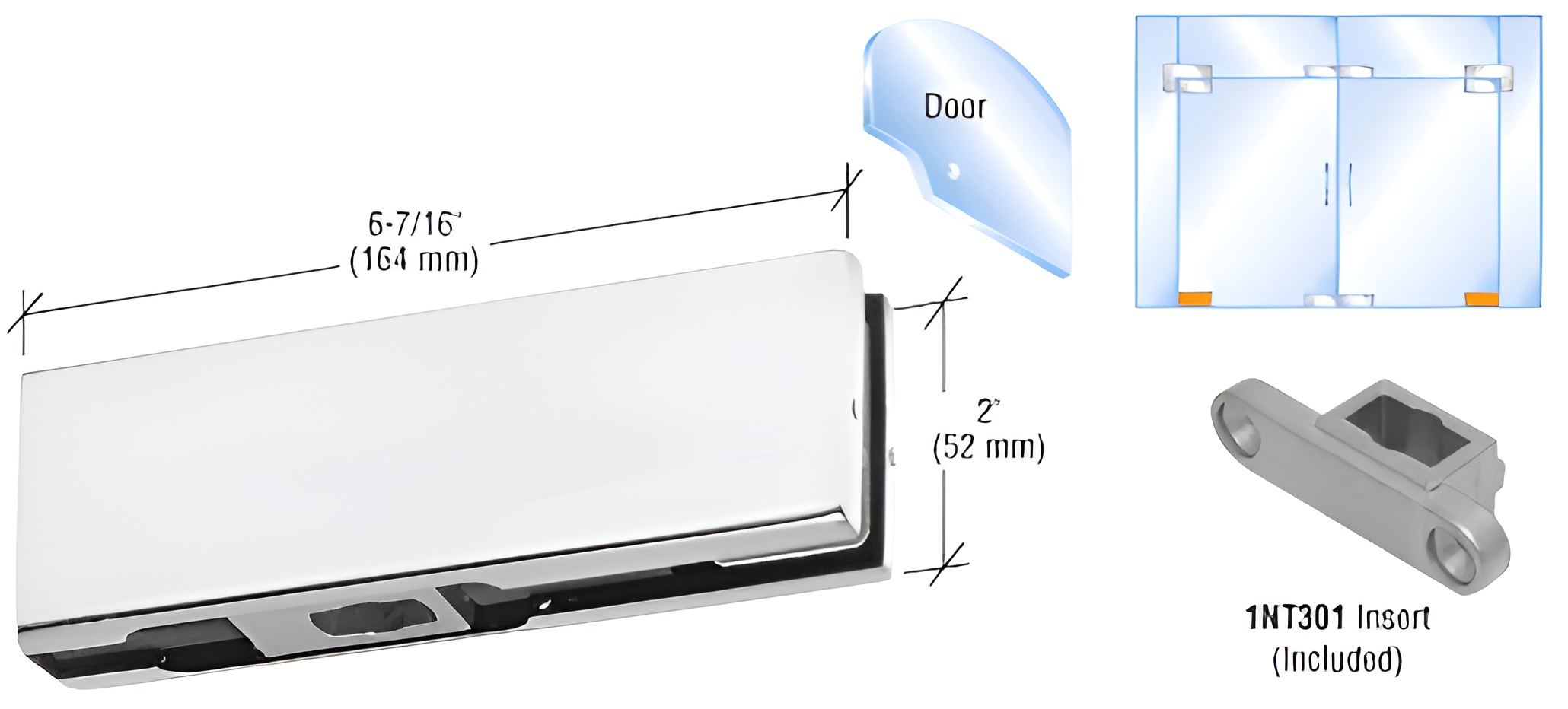

C.R. Laurence PH11CA Satin Anodized Bottom Door Patch with 1NT301 Insert offers a perfect blend of functionality and elegance for your door hardware needs. Designed to accommodate both 3/8" and 1/2" (10 or 12 mm) glass, this durable patch fitting ensures stability and seamless operation for your door systems. With a pivot setback of 2-9/16" (65 mm), it is ideal for use with tapered style spindle floor closers or free swing pivots. The satin anodized finish not only enhances aesthetics but also adds a layer of corrosion resistance, making it perfect for various environments. This fitting supports a maximum door height of 102" (2.51 m) and a weight capacity of 194 lbs. (88 kg), ensuring robust performance for a range of applications. The maximum width is limited to 42" (1.09 m). For optimal installation, a 3/4" (19 mm) diameter hole and a corner notch are required in the glass. The product comes complete with a template and instructions for ease of installation. Please note that these fittings are not suitable for laminated glass. Enhance your architectural projects with the reliability and sophistication of the C.R. Laurence PH11CA Bottom Door Patch.
Satin Anodized Bottom Door Patch with 1NT301 Insert
The CRL Bottom Door Patch Fitting includes the Catalog Number 1NT301 Insert for use with tapered style spindle Floor Closers or Free Swing Pivots. Covers are available in four standard finishes. Gaskets are supplied that allow this Patch Fitting to be used with either 3/8" or 1/2" (10 or 12 mm) Glass.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Satin Anodized
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Insert Type: 1NT301
Pivot Setback: 2-9/16
Shipping Limitations: None
Type: Bottom
With Insert: Yes
