CRL PH11CBR Brass Bottom Door Patch with 1NT301 InsertC.R. Laurence PH11CBR Brass Bottom Door Patch with 1NT301 Insert is a versatile and durable solution for modern glass door applications. Designed for use with tapered style spindle floor closers or free swing pivots, this bottom door patch fitting accommodates both 3/8" and 1/2" (10 or 12 mm) glass, making it a flexible choice for various projects. With a pivot setback of 2-9/16" (65 mm), it ensures seamless integration into your door system. This product supports maximum door dimensions of 102" (2.59 m) in height and 42" (1.09 m) in width, while handling weights up to 194 lbs. (88 kg). If these limits are exceeded, full door rails should be utilized for enhanced stability. The PH11CBR comes complete with a template and instructions for straightforward installation. Available in polished brass, this patch fitting adds a touch of elegance to any architectural design. However, it is important to note that brass finishes may be prone to oxidation, leading to a tarnished appearance over time. Be sure to review the Brass Finish Disclaimer for maintenance tips. For optimal results, proper glazing fabrication is required, including a 3/4" (19 mm) diameter hole and corner notch.

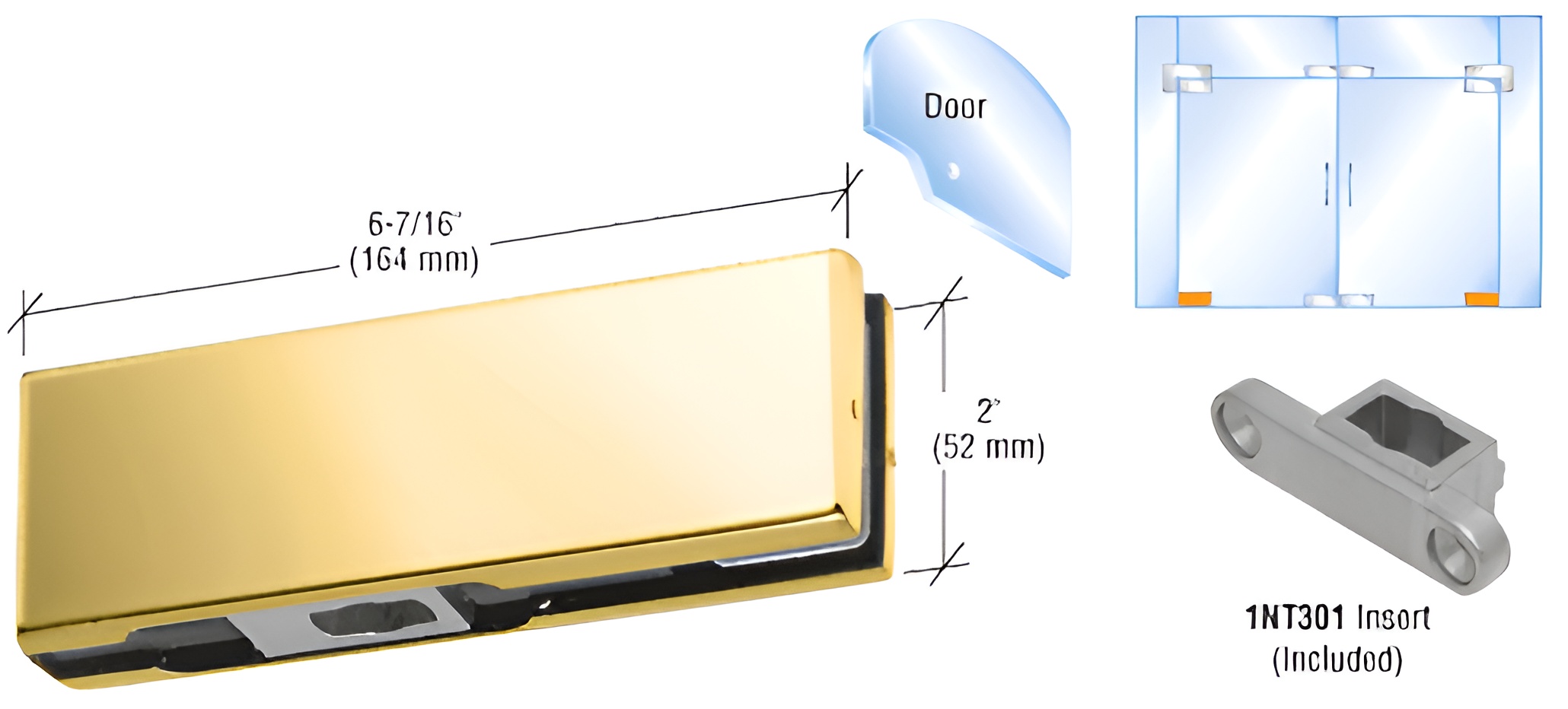

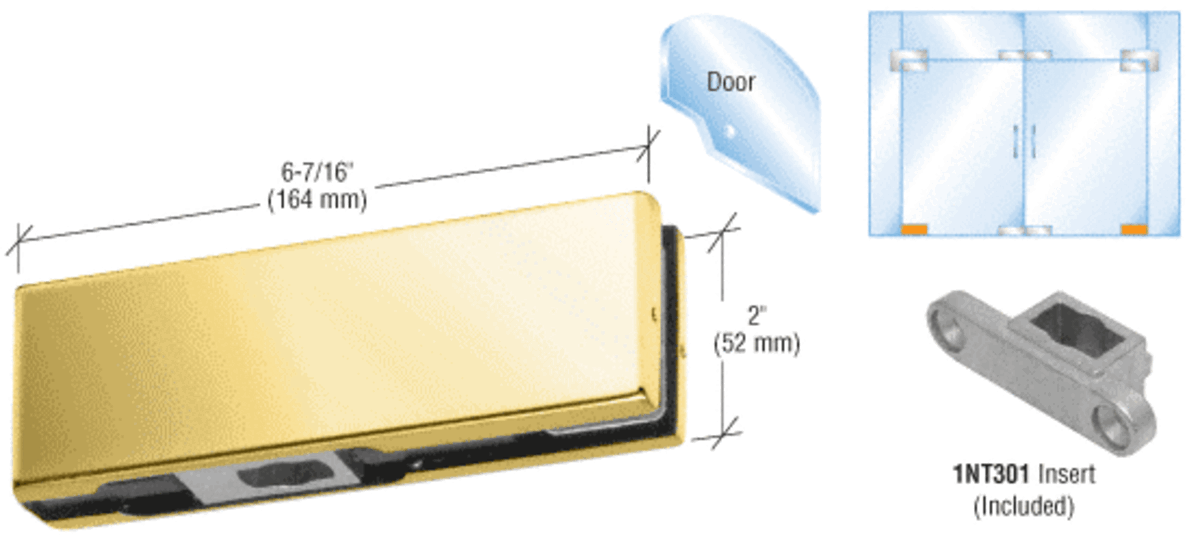

Brass Bottom Door Patch with 1NT301 Insert
- 2-9/16" (65 mm) Pivot Setback
- For 3/8" or 1/2" (10 or 12 mm) Glass
The
CRL Bottom Door Patch Fitting includes the Catalog Number
1NT301 Insert for use with tapered style spindle Floor Closers or Free Swing Pivots. Covers are available in four standard finishes. Gaskets are supplied that allow this Patch Fitting to be used with either 3/8" or 1/2" (10 or 12 mm) Glass.
The following guidelines are to be used when making a door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Weight: 194 Lbs. (88 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limitations, full door rails should be used.
GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch
COMES WITH:
Template and Instructions
Product Warning:
These fittings are not for use with Laminated Glass.
The following guidelines are to be used when making a 1/2" glass door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Height: 176 Lbs. (80 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limitations, full door rails should be used.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Polished Brass
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Insert Type: 1NT301
Pivot Setback: 2-9/16
Shipping Limitations: None
Type: Bottom
With Insert: Yes
