CRL PH11CBS Brushed Stainless Bottom Door Patch with 1NT301 InsertC.R. Laurence PH11CBS Brushed Stainless Bottom Door Patch with 1NT301 Insert offers a robust solution for glass door installations, accommodating both 3/8" and 1/2" (10 mm or 12 mm) glass. With a pivot setback of 2-9/16" (65 mm), this fitting is designed for use with tapered style spindle Floor Closers or Free Swing Pivots, ensuring seamless operation and enhanced durability. Ideal for doors up to 102" (2.59 m) in height and 42" (1.09 m) in width, the PH11CBS supports a maximum weight of 194 lbs. (88 kg). For heavier installations, full door rails are recommended. This fitting includes a template and instructions, simplifying the installation process for building professionals and knowledgeable homeowners alike. Please note that proper glass fabrication is required, including a 3/4" (19 mm) diameter hole and corner notch. The PH11CBS is available in four standard finishes, allowing for aesthetic versatility in various architectural settings. C.R. Laurence emphasizes the importance of maintenance, as stainless steel is resistant to corrosion but not completely stain-proof. Regular upkeep will help maintain its factory finish and appearance. For optimal performance, it's essential to avoid using these fittings with laminated glass.

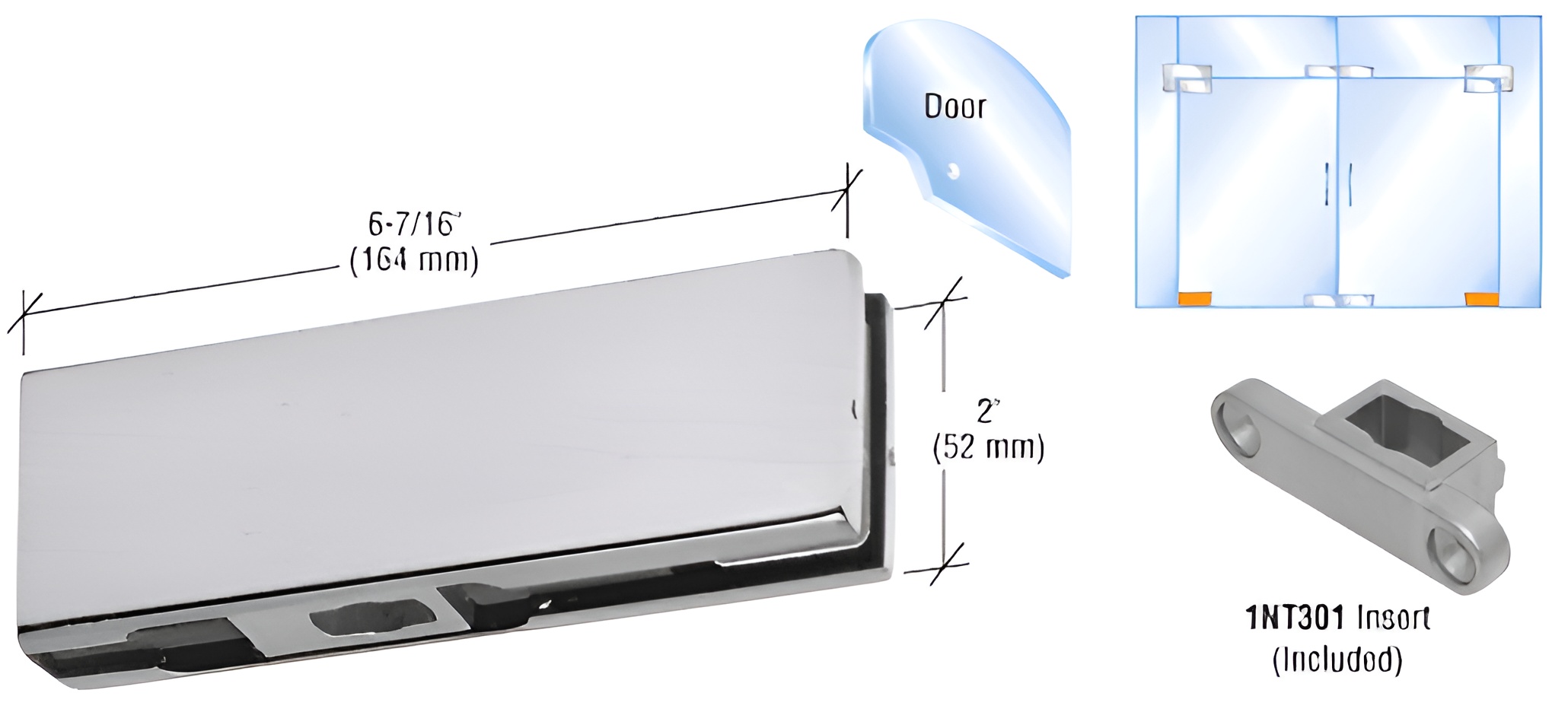

Brushed Stainless Bottom Door Patch with 1NT301 Insert
- 2-9/16" (65 mm) Pivot Setback
- For 3/8" or 1/2" (10 or 12 mm) Glass
The
CRL Bottom Door Patch Fitting includes the Catalog Number
1NT301 Insert for use with tapered style spindle Floor Closers or Free Swing Pivots. Covers are available in four standard finishes. Gaskets are supplied that allow this >Patch Fitting to be used with either 3/8" or 1/2" (10 or 12 mm) Glass.
The following guidelines are to be used when making a door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Weight: 194 Lbs. (88 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limitations, full door rails should be used.
GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch
COMES WITH:
Template and Instructions
Product Warning:
These fittings are not for use with Laminated Glass.
The following guidelines are to be used when making a 1/2" glass door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Height: 176 Lbs. (80 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limitations, full door rails should be used.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Insert Type: 1NT301
Pivot Setback: 2-9/16
Shipping Limitations: None
Type: Bottom
With Insert: Yes
