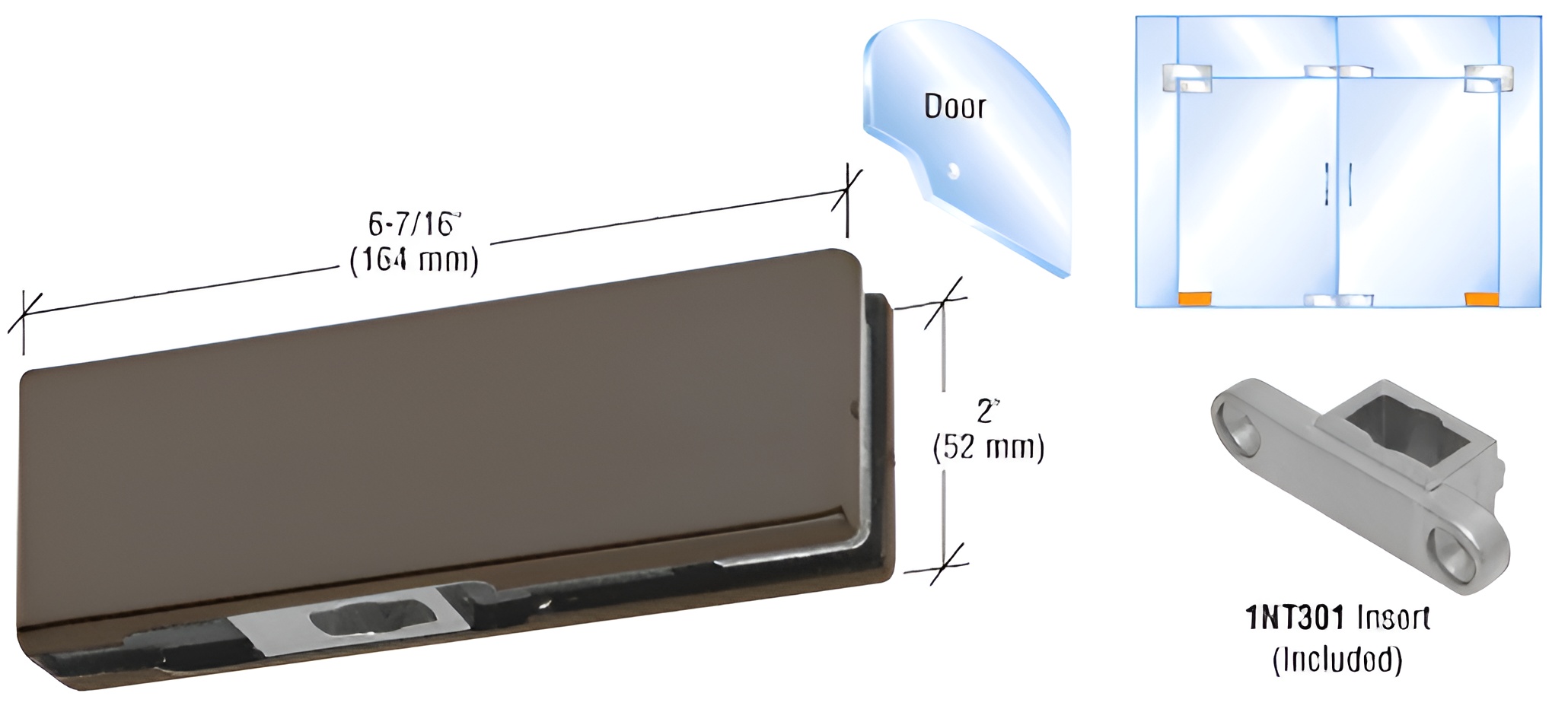

CRL PH11CDU Black Bronze Bottom Door Patch with 1NT301 Insert
Images may not represent actual product and finish

CRL PH11CDU Black Bronze Bottom Door Patch with 1NT301 Insert

Your Price: $62.47
Retail Price:$74.78
Your Savings:$12.31(16%)
The CRL PH11CDU Black Bronze Bottom Door Patch accommodates 3/8" or 1/2" glass, featuring a 2-9/16" pivot setback.
Part Number : CRL_PH11CDU
Availability: 4 In Stock

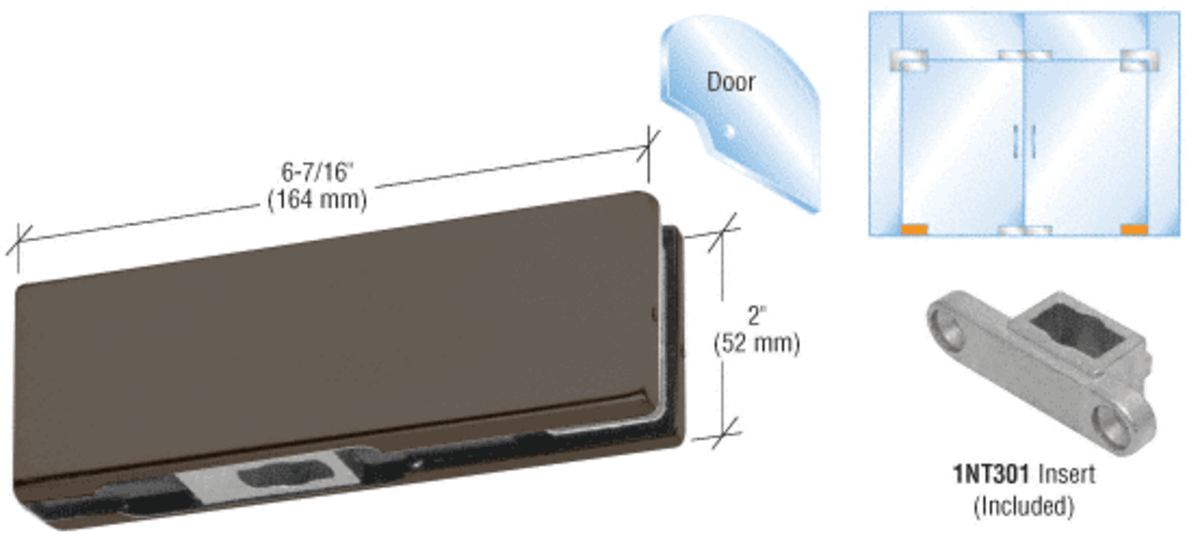

CRL PH11CDU Black Bronze Bottom Door Patch with 1NT301 Insert

C.R. Laurence PH11CDU Black Bronze Bottom Door Patch with 1NT301 Insert offers a reliable solution for securing glass doors while maintaining a sleek aesthetic. Designed to accommodate 3/8" or 1/2" (10 or 12 mm) glass, this patch fitting features a pivot setback of 2-9/16" (65 mm), ensuring a precise fit for your installations. The included 1NT301 insert is compatible with tapered style spindle floor closers or free-swing pivots, providing versatility in various applications. Gaskets are provided to facilitate the use of this fitting with both glass thicknesses, ensuring optimal performance and functionality. For maximum durability, the PH11CDU supports a door height of up to 102" (2.59 m) and a weight of up to 194 lbs (88 kg), accommodating widths of up to 42" (1.09 m). Should your design exceed these limitations, full door rails are recommended for added support. This product comes with a template and instructions, simplifying the installation process. Please note, these fittings are not suitable for laminated glass. With its black bronze anodized finish, the PH11CDU adds a stylish touch to any entryway while delivering the strength and reliability expected from C.R. Laurence products.

Black Bronze Bottom Door Patch with 1NT301 Insert

  • 2-9/16" (65 mm) Pivot Setback
  • For 3/8" or 1/2" (10 or 12 mm) Glass

The CRL Bottom Door Patch Fitting includes the Catalog Number 1NT301 Insert for use with tapered style spindle Floor Closers or Free Swing Pivots. Covers are available in four standard finishes. Gaskets are supplied that allow this Patch Fitting to be used with either 3/8" or 1/2" (10 or 12 mm) Glass.



The following guidelines are to be used when making a door using this hardware:

Maximum Height: 102" (2.59 m)
Maximum Weight: 194 Lbs. (88 kg)
Maximum Width: 42" (1.09 m)

If the door exceeds any of these limitations, full door rails should be used.

GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch

COMES WITH:
Template and Instructions


Product Warning:

These fittings are not for use with Laminated Glass.

The following guidelines are to be used when making a 1/2" glass door using this hardware:

Maximum Height: 102" (2.59 m)
Maximum Height: 176 Lbs. (80 kg)
Maximum Width: 42" (1.09 m)

If the door exceeds any of these limitations, full door rails should be used.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.


Attributes

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Finish/ Color:: Black Bronze Anodized

Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)

Insert Type: 1NT301

Pivot Setback: 2-9/16

Shipping Limitations: None

Type: Bottom

With Insert: Yes
