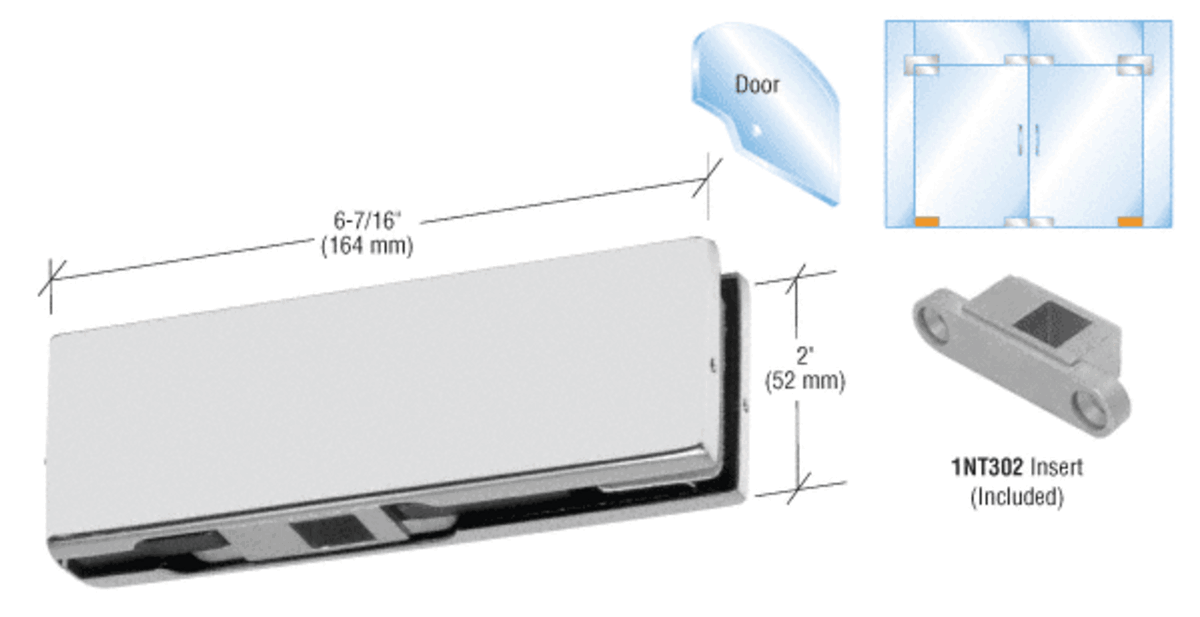

C.R. Laurence PH11DA Satin Anodized Bottom Door Patch With 1NT302 Insert offers a robust and stylish solution for your glass door installations. Designed to accommodate 3/8" or 1/2" (10 mm or 12 mm) monolithic tempered glass, this bottom door patch fitting ensures durability and elegance in any setting. With a pivot setback of 2-9/16" (65 mm), it provides an optimal balance between functionality and aesthetics. This fitting is specifically engineered for use with tapered square style spindle Casma Floor Closers or the 1NT404 Free Swing Pivots, making it a versatile choice for various applications. It comes complete with gaskets, a template, and instructions for straightforward installation. The maximum height for doors using this hardware is 102" (2.59 m), with a weight limit of 194 lbs. (88 kg) and a width of 42" (1.07 m), ensuring reliable performance under standard conditions. Please note that glass fabrication is required, including a 3/4" (19 mm) diameter hole and corner notch. Importantly, this fitting is not suitable for laminated glass. Available in a sleek satin anodized finish, the PH11DA combines safety, strength, and style for any architectural project.
Satin Anodized Bottom Door Patch With 1NT302 Insert
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Satin Anodized
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Insert Type: 1NT302
Pivot Setback: 2-9/16
Shipping Limitations: None
Type: Bottom
With Insert: Yes
