CRL PH11DBR Brass Bottom Door Patch with 1NT302 InsertC.R. Laurence PH11DBR Brass Bottom Door Patch With 1NT302 Insert is a robust solution designed for seamless glass door installations. This premium patch fitting is compatible with 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass, ensuring durability and aesthetic appeal. Featuring a pivot setback of 2-9/16" (65 mm), it accommodates various door configurations while maintaining smooth operation. The PH11DBR includes the No. 1NT302 insert, making it suitable for use with tapered square style spindle Casma Floor Closers or 1NT404 Free Swing Pivots. This versatility allows for easy integration into existing systems. The fitting is equipped with gaskets to ensure a secure fit and is available in four standard finishes, allowing you to choose the perfect match for your project. When utilizing this hardware, it’s essential to note the specifications: a maximum height of 102" (2.59 m), a maximum weight of 194 lbs. (88 kg), and a maximum width of 42" (1.07 m). For doors exceeding these limits, full door rails should be considered. Glass fabrication requires a 3/4" (19 mm) diameter hole and corner notch. Please remember, this product is not compatible with laminated glass.

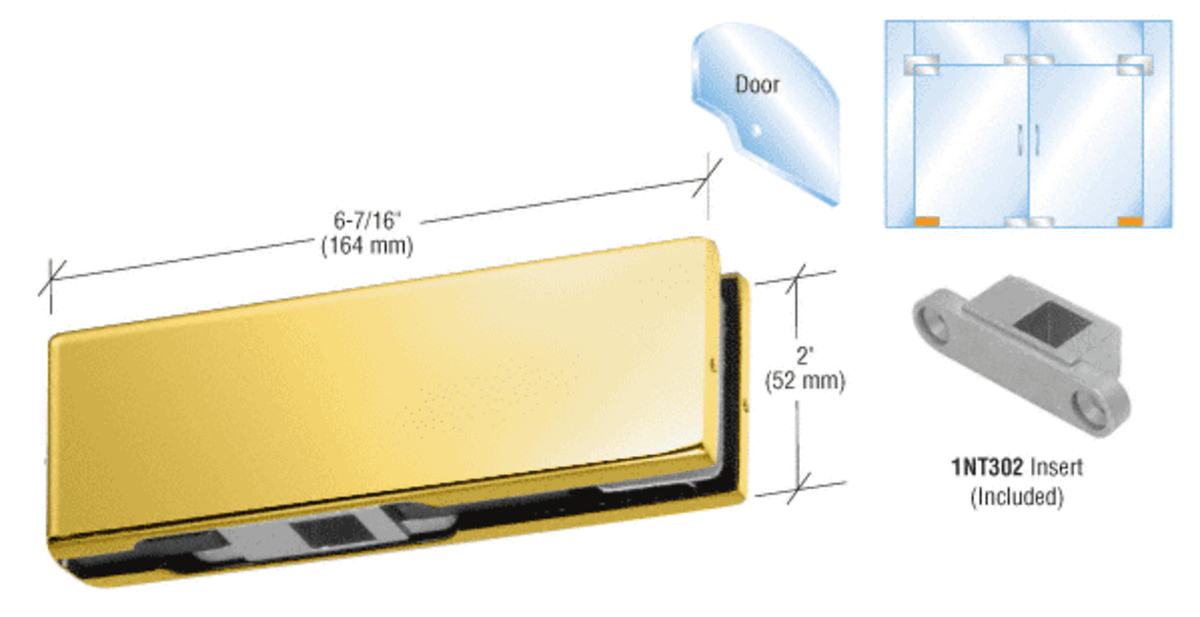

Brass Bottom Door Patch With 1NT302 Insert
- 2-9/16" (65 mm) Pivot Setback
- For 3/8" or 1/2" (10 or 12 mm) Glass
- Use Monolithic Tempered Glass
The
CRL Bottom Door Patch Fitting includes the No.
1NT302 Insert for use with tapered square style spindle Casma Floor Closers or
1NT404 Free Swing Pivots. Finished covers are available in four standard finishes. Gaskets are supplied that allow this Patch Fitting to be used with either 3/8" or 1/2" (10 or 12 mm) Glass.
The following guidelines are to be used when making a door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Weight: 194 Lbs. (88 kg)
Maximum Width: 42" (1.07 m)
If the door exceeds any of these limitations, full door rails should be used.
GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch
COMES WITH:
Template and Instructions
Product Warning:
These fittings are not for use with Laminated Glass.
The following guidelines are to be used when making a 1/2" glass door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Height: 176 Lbs. (80 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limitations, full door rails should be used.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Polished Brass
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Insert Type: 1NT302
Pivot Setback: 2-9/16
Shipping Limitations: None
Type: Bottom
With Insert: Yes
