CRL PH11DBS Brushed Stainless Bottom Door Patch with 1NT302 InsertC.R. Laurence PH11DBS Brushed Stainless Bottom Door Patch With 1NT302 Insert offers a robust and stylish solution for your glass door installations. Designed to accommodate both 3/8" and 1/2" (10 or 12 mm) monolithic tempered glass, this bottom door patch fitting ensures a secure and reliable connection. With a pivot setback of 2-9/16" (65 mm), it is optimized for use with tapered square style spindle Casma Floor Closers and Free Swing Pivots. This versatile patch fitting comes with essential gaskets and includes the No. 1NT302 insert, providing exceptional performance while maintaining a sleek aesthetic. Finished in brushed stainless steel, it not only enhances the visual appeal of your space but also offers durability and resistance to corrosion. For optimal performance, adhere to the following guidelines: the maximum height for installation is 102" (2.59 m), with a weight limit of 194 lbs. (88 kg) and a maximum width of 42" (1.07 m). Should your door exceed these specifications, full door rails should be employed. Please note that glass fabrication requires a 3/4" (19 mm) diameter hole and corner notch, and these fittings are not compatible with laminated glass. Complete your project with confidence, knowing that the PH11DBS is backed by C.R. Laurence’s commitment to quality and innovation.

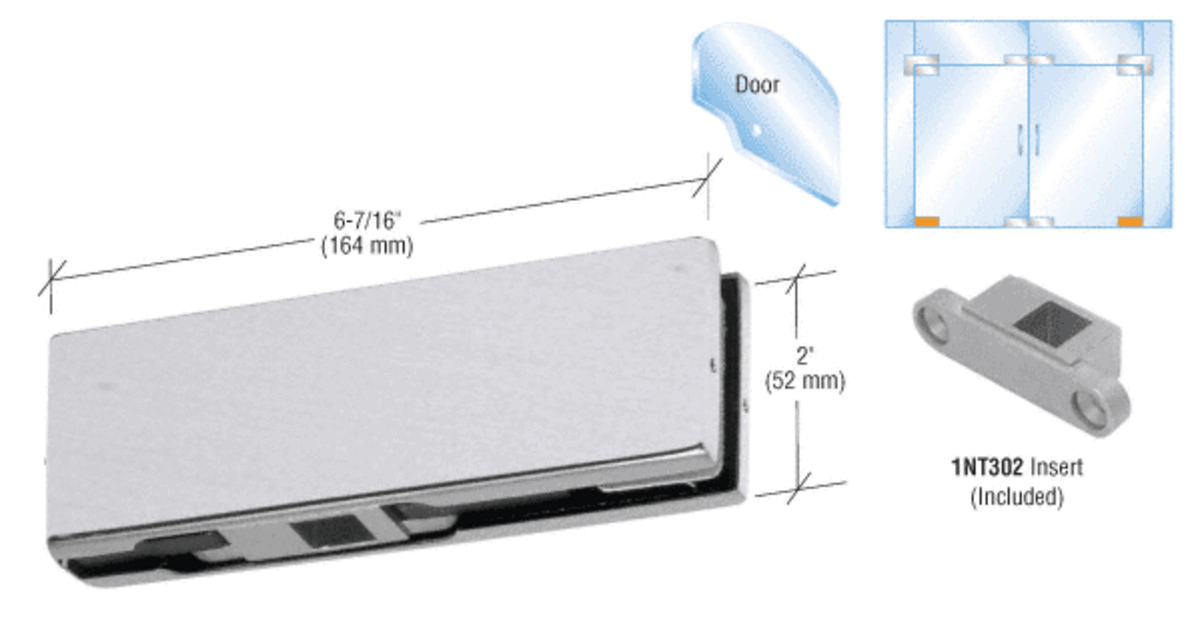

Brushed Stainless Bottom Door Patch With 1NT302 Insert
- 2-9/16" (65 mm) Pivot Setback
- For 3/8" or 1/2" (10 or 12 mm) Glass
- Use Monolithic Tempered Glass
The
CRL Bottom Door Patch Fitting includes the No.
1NT302 Insert for use with tapered square style spindle Casma Floor Closers or
1NT404 Free Swing Pivots. Finished covers are available in four standard finishes. Gaskets are supplied that allow this Patch Fitting to be used with either 3/8" or 1/2" (10 or 12 mm) Glass.
The following guidelines are to be used when making a door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Weight: 194 Lbs. (88 kg)
Maximum Width: 42" (1.07 m)
If the door exceeds any of these limitations, full door rails should be used.
GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch
COMES WITH:
Template and Instructions
Product Warning:
These fittings are not for use with Laminated Glass.
The following guidelines are to be used when making a 1/2" glass door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Height: 176 Lbs. (80 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limitations, full door rails should be used.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Insert Type: 1NT302
Pivot Setback: 2-9/16
Shipping Limitations: None
Type: Bottom
With Insert: Yes
