CRL PH11DMBL Matte Black Bottom Door Patch with 1NT302 InsertC.R. Laurence PH11DMBL Matte Black Bottom Door Patch With 1NT302 Insert is expertly designed for durability and style in glass door applications. This bottom door patch fitting features a 2-9/16" (65 mm) pivot setback, accommodating both 3/8" and 1/2" (10 or 12 mm) monolithic tempered glass. The inclusion of the No. 1NT302 insert makes it compatible with tapered square style spindle Casma Floor Closers or the 1NT404 Free Swing Pivots, providing flexibility for various installations. With a maximum height of 102" (2.59 m) and a maximum weight capacity of 194 lbs. (88 kg), this patch fitting offers robust support for large doors, ensuring reliable performance. The unit also comes with necessary gaskets, allowing for straightforward installation with the specified glass thicknesses. For optimal results, ensure one 3/4" (19 mm) diameter hole and corner notch are fabricated in the glass. The PH11DMBL is available in a sophisticated matte black finish, enhancing the aesthetic of any modern space. Each unit comes complete with a template and instructions for easy installation. Please note, this fitting is not suitable for laminated glass, ensuring your projects maintain the highest safety standards.
Matte Black Bottom Door Patch With 1NT302 Insert

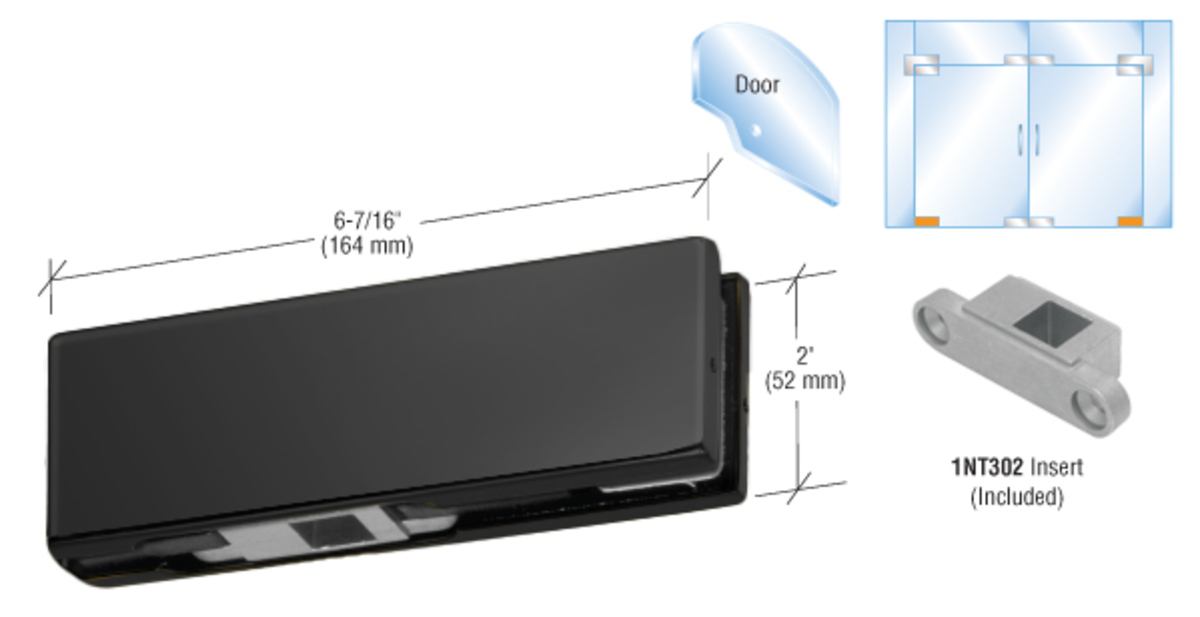

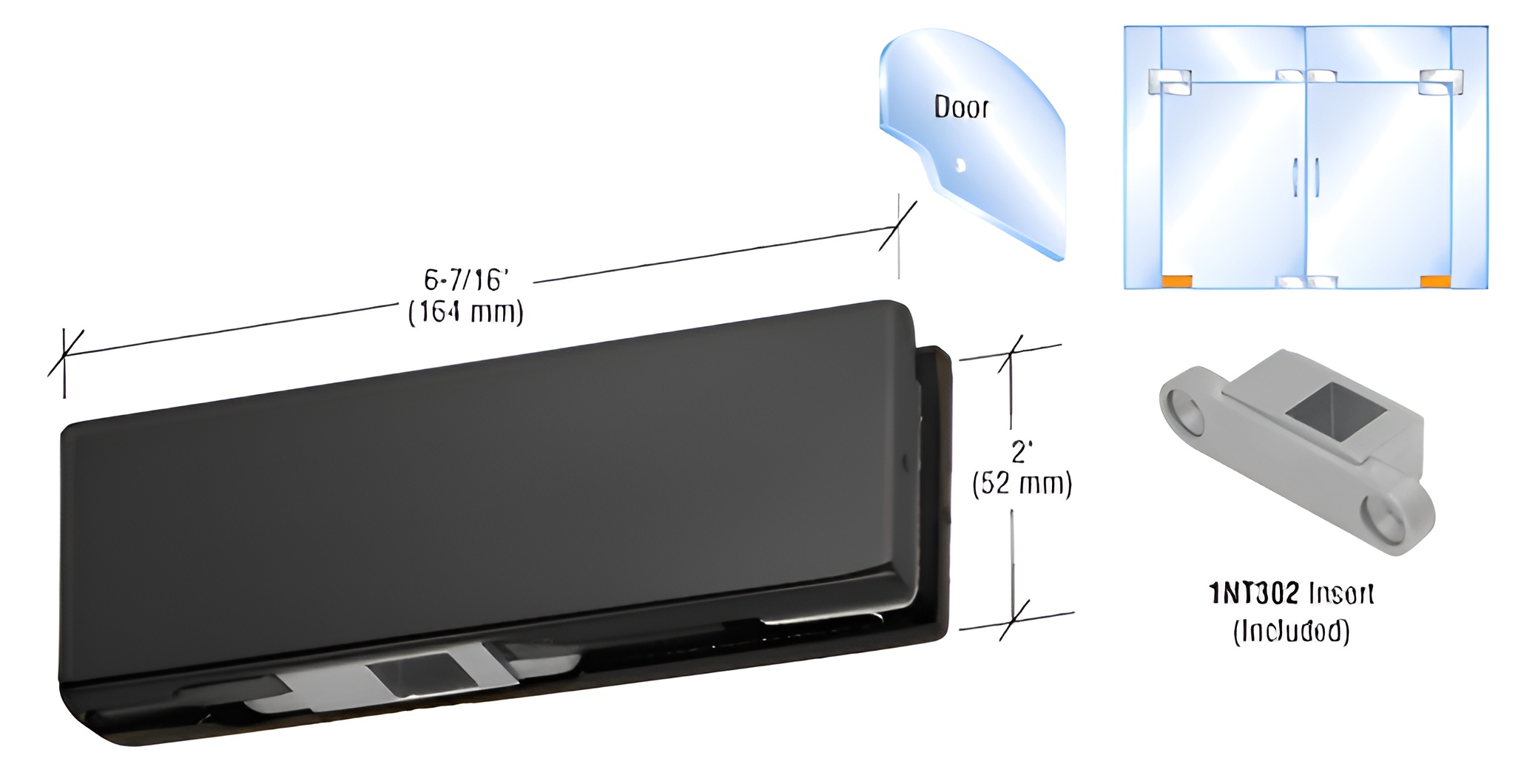

- 2-9/16" (65 mm) Pivot Setback
- For 3/8" or 1/2" (10 or 12 mm) Glass
- Use Monolithic Tempered Glass
The CRL Bottom Door Patch Fitting includes the No. 1NT302 Insert for use with tapered square style spindle Casma Floor Closers or 1NT404 Free Swing Pivots. Finished covers are available in four standard finishes. Gaskets are supplied that allow this Patch Fitting to be used with either 3/8" or 1/2" (10 or 12 mm) Glass.
" target="_blank">https://www.crlaurence.com/p/1NT302">1NT302 Insert for use with tapered square style spindle Casma Floor Closers or
1NT404 Free Swing Pivots. Finished covers are available in four standard finishes. Gaskets are supplied that allow this Patch Fitting to be used with either 3/8" or 1/2" (10 or 12 mm) Glass.
The following guidelines are to be used when making a door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Weight: 194 Lbs. (88 kg)
Maximum Width: 42" (1.07 m)
If the door exceeds any of these limitations, full door rails should be used.
GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch
COMES WITH:
Template and Instructions
Product Warning:
These fittings are not for use with Laminated Glass.
The following guidelines are to be used when making a 1/2" glass door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Height: 176 Lbs. (80 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limitations, full door rails should be used.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Matte Black
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Insert Type: 1NT302
Pivot Setback: 2-9/16
Shipping Limitations: None
Type: Bottom
With Insert: Yes
