CRL PH11DPS Polished Stainless Steel Bottom Door Patch with 1NT302 InsertC.R. Laurence PH11DPS Polished Stainless Bottom Door Patch with 1NT302 Insert offers a robust solution for securing glass doors while enhancing the aesthetic appeal of any space. Designed to accommodate 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass, this fitting features a pivot setback of 2-9/16" (65 mm) for a precise installation. The PH11DPS is compatible with tapered square style spindle Casma Floor Closers and Free Swing Pivots, providing versatility in your hardware selection. Finished in polished stainless steel, it not only boasts durability but also complements modern design elements beautifully. Gaskets included with the patch fitting ensure a secure fit for both glass thickness options. For optimal performance, adhere to the following guidelines: the door should not exceed 102" (2.59 m) in height, 194 lbs. (88 kg) in weight, or 42" (1.07 m) in width. If dimensions surpass these limits, full door rails are recommended. Glass fabrication requires a 3/4" (19 mm) diameter hole and corner notch, and installation is further simplified with the included template and instructions. Please note, this fitting is not suitable for laminated glass. Regular maintenance will help preserve the polished finish, ensuring your installation remains visually appealing for years to come.

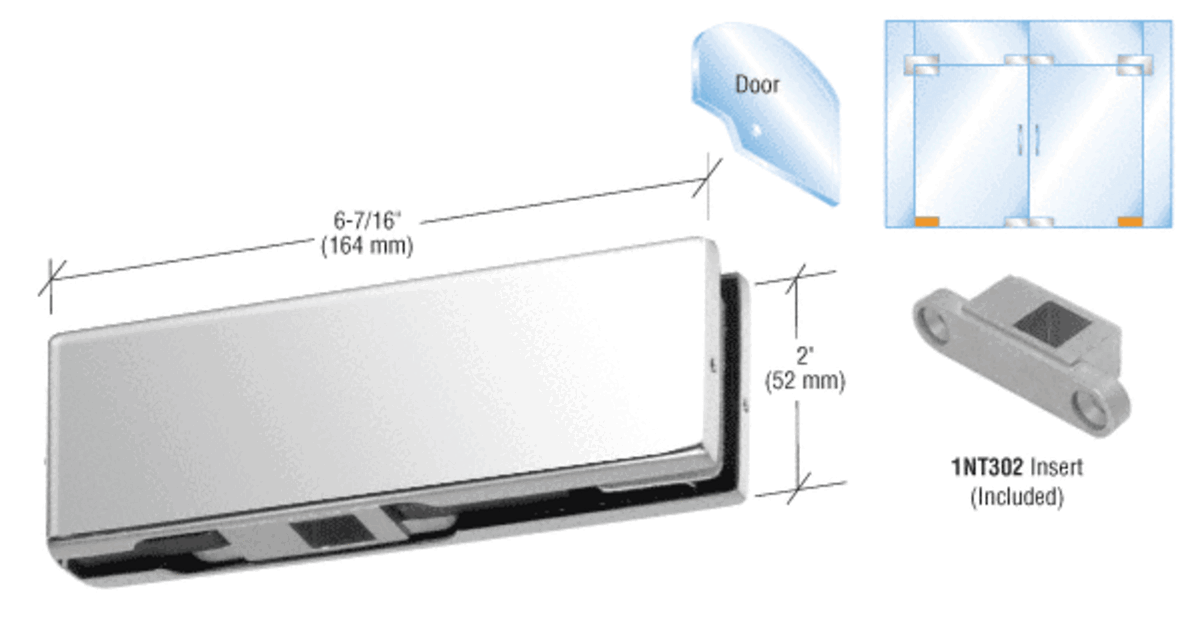

Polished Stainless Bottom Door Patch with 1NT302 Insert
- 2-9/16" (65 mm) Pivot Setback
- For 3/8" or 1/2" (10 or 12 mm) Glass
- Use Monolithic Tempered Glass
The
CRL Bottom Door Patch Fitting includes the No.
1NT302 Insert for use with tapered square style spindle Casma Floor Closers or
1NT404 Free Swing Pivots. Finished covers are available in four standard finishes. Gaskets are supplied that allow this Patch Fitting to be used with either 3/8" or 1/2" (10 or 12 mm) Glass.
The following guidelines are to be used when making a door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Weight: 194 Lbs. (88 kg)
Maximum Width: 42" (1.07 m)
If the door exceeds any of these limitations, full door rails should be used.
GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch
COMES WITH:
Template and Instructions
Product Warning:
These fittings are not for use with Laminated Glass.
The following guidelines are to be used when making a 1/2" glass door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Height: 176 Lbs. (80 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limitations, full door rails should be used.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Polished Stainless Steel
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Insert Type: 1NT302
Pivot Setback: 2-9/16
Shipping Limitations: None
Type: Bottom
With Insert: Yes
