CRL PH20AA Satin Anodized Top Door Patch Fitting with 1NT303 Insert

Your Price: $44.01

Retail Price:$52.68

Your Savings:$8.67(16%)

CRL PH20AA Satin Anodized Top Door Patch Fitting for 3/8" or 1/2" glass, supports up to 194 lbs. Ideal for tempered glass doors.

Part Number : CRL_PH20AA

Availability: 1949 In Stock

Quantity

Description

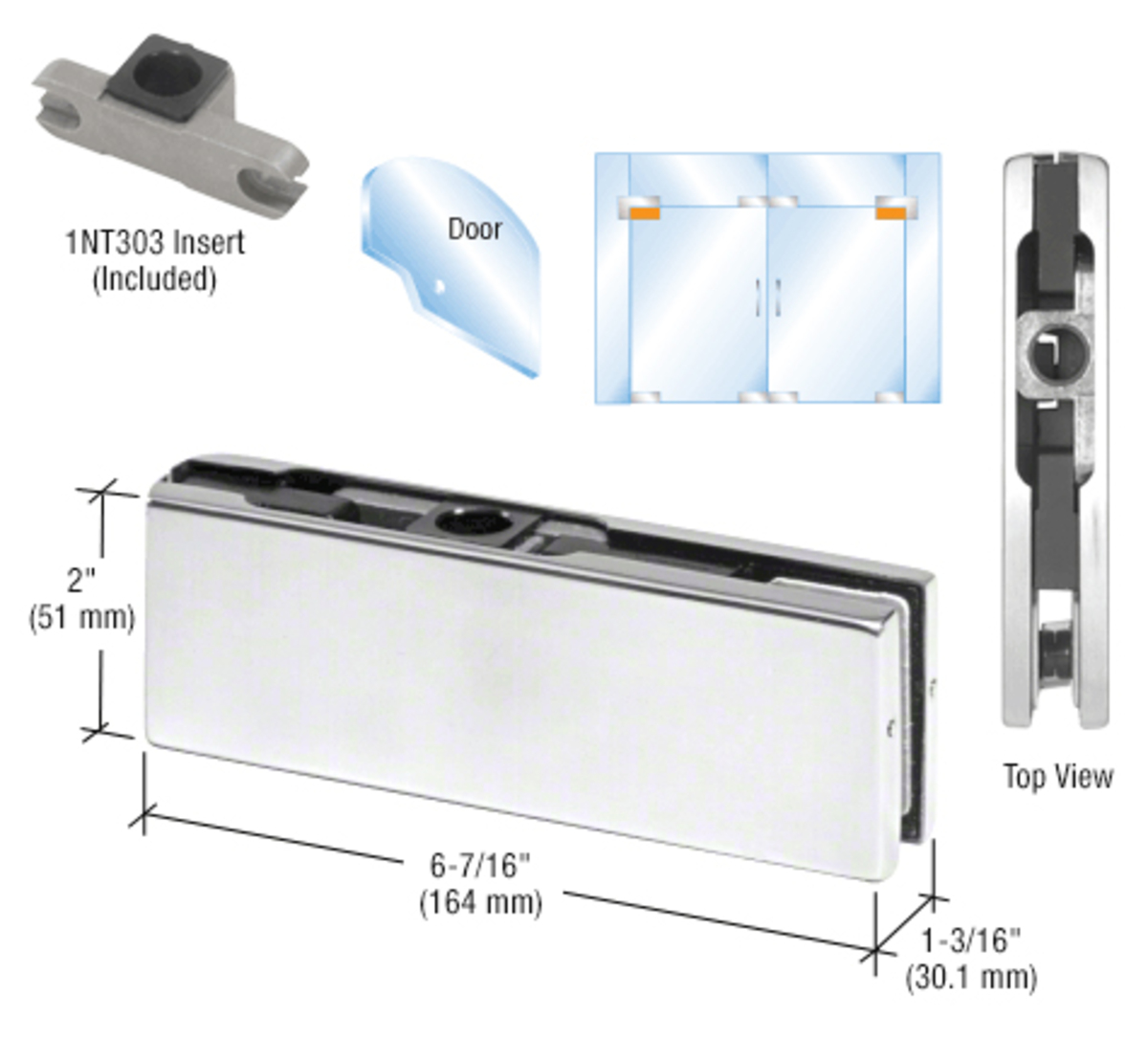

CRL PH20AA Satin Anodized Top Door Patch Fitting with 1NT303 Insert

C.R. Laurence PH20AA Satin Anodized Top Door Patch Fitting With 1NT303 Insert offers a robust solution for securing glass doors, specifically designed for 3/8" or 1/2" (10 mm or 12 mm) monolithic tempered glass. This fitting is engineered to accommodate doors with a maximum height of 102" (2.59 m), a weight of 194 lbs. (88 kg), and a width of up to 42" (1.07 m), ensuring reliable performance for standard applications. With a pivot setback of 2-3/4" (70 mm), this fitting is versatile enough to be used with all three CRL gate and door pivots. It comes with a comprehensive template and instructions to facilitate precise glass fabrication, requiring a 3/4" (19 mm) diameter hole and corner notch. The satin anodized finish not only enhances aesthetic appeal but also contributes to durability. Please note, this fitting is not compatible with laminated glass and should not be used with PH42L, PH42R, PH43L, or PH43R transom patch fittings, which require the European Door Patch Fitting PH21A. For added convenience, the product is shipped via common carrier only, ensuring safe delivery.

Satin Anodized Top Door Patch Fitting With 1NT303 Insert

For 3/8" or 1/2" (10 or 12 mm) Glass
With or Without Locks
2-3/4" (70 mm) Pivot Setback
Use Monolithic Tempered Glass

CRL Top Gate Patch Fittings are used with all three of our gate and door pivots. It fits in the upper corner of the gate's glass panel, and requires a hole and cut-out in the glass. Available in brushed stainless steel finish, it comes complete with instructions and a glass cut-out template.

The following guidelines are to be used when making a door using this hardware:

Maximum Height: 102" (2.59 m)
Maximum Weight: 194 lbs. (88 kg)
Maximum Width: 42" (1.07 m)

If the door exceeds any of these limitations, full door rails should be used.

GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch

COMES WITH:

Template and Instructions

Do Not Use With:
PH42L, PH42R, PH43L or PH43R Transom Patch Fittings. They Require European Door Patch Fitting PH21A.

Product Warning:

These fittings are not for use with Laminated Glass.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Attributes

Ship via: No UPS - Common Carrier Only

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Finish/ Color:: Satin Anodized

Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)

Height: 2 in. (51 mm)

Insert Type: 1NT303

Length: 6-7/16 in. (164 mm)

Maximum Door Height: 102 in. (2591 mm)

Maximum Panel Weight: 194 lbs. (88 kg)

Maximum Width: 42 in. (1067 mm)

Pivot Setback: 2-3/4

Shipping Limitations: None

Type: Top

With Insert: Yes
