CRL PH20ABR Brass Top Door Patch Fitting with 1NT303 Insert
Images may not represent actual product and finish

CRL PH20ABR Brass Top Door Patch Fitting with 1NT303 Insert

Your Price: $59.63
Retail Price:$71.38
Your Savings:$11.75(16%)
The CRL PH20ABR Brass Top Door Patch Fitting supports 3/8" or 1/2" glass, ideal for durable, stylish installations.
Part Number : CRL_PH20ABR
Availability: 420 In Stock

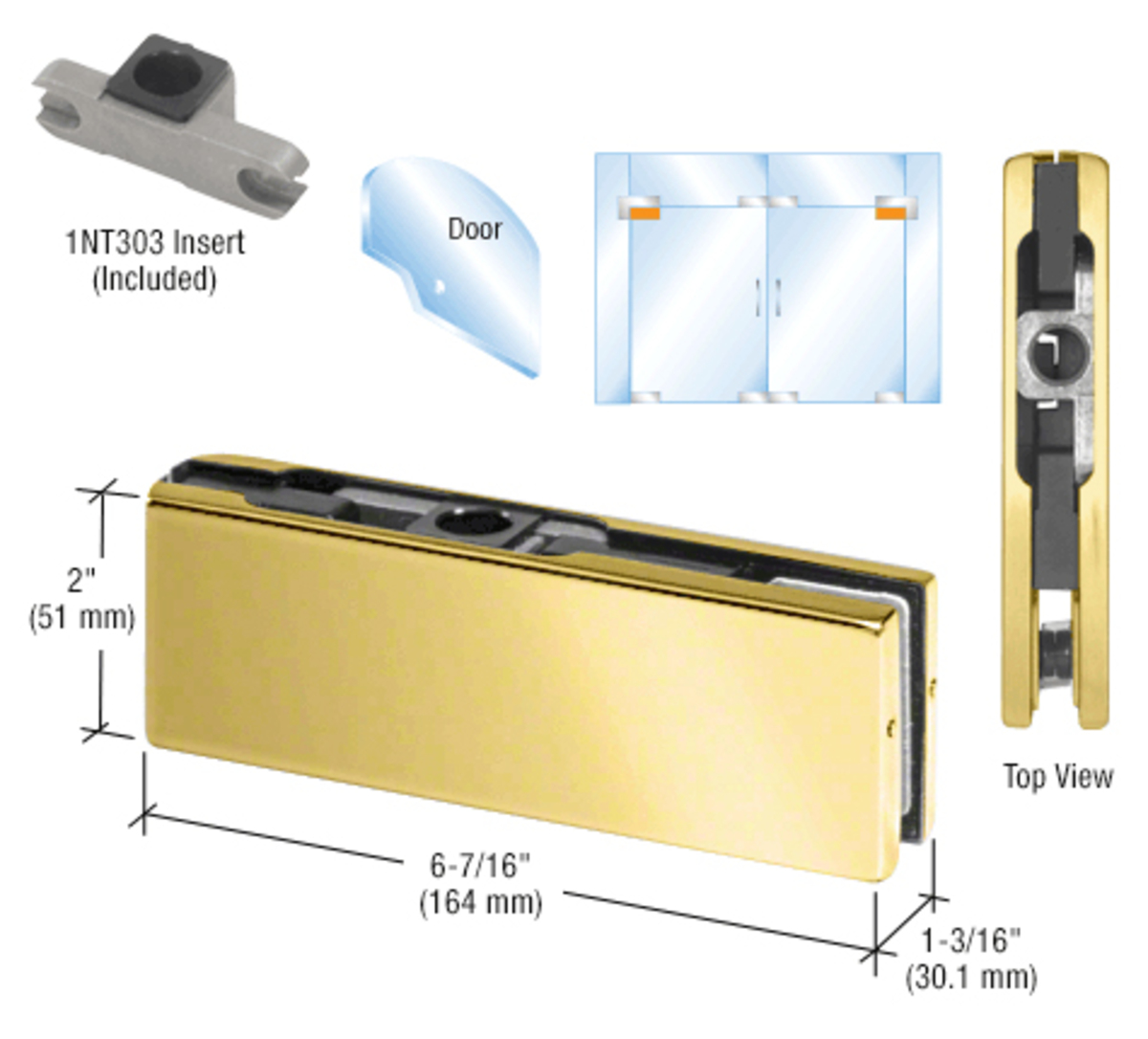

CRL PH20ABR Brass Top Door Patch Fitting with 1NT303 Insert

C.R. Laurence PH20ABR Brass Top Door Patch Fitting with 1NT303 Insert is designed for seamless integration in glass applications, allowing for the use of 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass. The fitting, available in a polished brass finish, can be configured with or without locks, offering versatility to meet various security needs. Its 2-3/4" (70 mm) pivot setback ensures a smooth operation while maintaining a clean aesthetic. This fitting supports a maximum door height of 102" (2.59 m), a maximum weight of 194 lbs. (88 kg), and a maximum width of 42" (1.07 m). For optimal performance, it requires a 3/4" (19 mm) diameter hole and corner notch in the glass, with complete installation instructions and a glass cut-out template included for ease of use. Please note that this product should not be used with laminated glass, and it is incompatible with specific transom patch fittings (PH42L, PH42R, PH43L, or PH43R), which require the European Door Patch Fitting PH21A. The C.R. Laurence PH20ABR is an essential component for professionals seeking a reliable and stylish solution for glass door installations.

Brass Top Door Patch Fitting with 1NT303 Insert

  • For 3/8" or 1/2" (10 or 12 mm) Glass
  • With or Without Locks
  • 2-3/4" (70 mm) Pivot Setback
  • Use Monolithic Tempered Glass

CRL Top Gate Patch Fittings are used with all three of our gate and door pivots. It fits in the upper corner of the gate's glass panel, and requires a hole and cut-out in the glass. Available in brushed stainless steel finish, it comes complete with instructions and a glass cut-out template.


The following guidelines are to be used when making a door using this hardware:

Maximum Height: 102" (2.59 m)
Maximum Weight: 194 lbs. (88 kg)
Maximum Width: 42" (1.07 m)

If the door exceeds any of these limitations, full door rails should be used.

GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch

COMES WITH:

Template and Instructions

Do Not Use With:
PH42L, PH42R, PH43L or PH43R Transom Patch Fittings. They Require European Door Patch Fitting PH21A.


Product Warning:

These fittings are not for use with Laminated Glass.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.


Attributes

Ship via: No UPS - Common Carrier Only

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Finish/ Color:: Polished Brass

Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)

Height: 2 in. (51 mm)

Insert Type: 1NT303

Length: 6-7/16 in. (164 mm)

Maximum Door Height: 102 in. (2591 mm)

Maximum Panel Weight: 194 lbs. (88 kg)

Maximum Width: 42 in. (1067 mm)

Pivot Setback: 2-3/4

Shipping Limitations: None

Type: Top

With Insert: Yes
