CRL PH20ABS Brushed Stainless Steel Door Patch Fitting with 1NT303 InsertC.R. Laurence PH20ABS Brushed Stainless Top Door Patch Fitting With 1NT303 Insert is an essential component for creating elegant glass doors and gates. Designed to accommodate 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass, this fitting combines durability and aesthetic appeal. Available with or without locks, it features a 2-3/4" (70 mm) pivot setback, making it an adaptable choice for various installations. This top gate patch fitting is specifically engineered for use with all three gate and door pivots, fitting seamlessly into the upper corner of the glass panel. Installation is straightforward, as it includes a glass cut-out template and comprehensive instructions to guide you through the process. The maximum door height stands at 102" (2.59 m), with a weight capacity of 194 lbs. (88 kg) and a width limit of 42" (1.07 m). Note that glass fabrication requires a 3/4" (19 mm) diameter hole and corner notch. It’s important to remember that these fittings are not compatible with laminated glass and should not be used with specific transom patch fittings. With its brushed stainless steel finish, the PH20ABS not only delivers performance but also enhances the overall elegance of your architectural designs.
Brushed Stainless Top Door Patch Fitting With 1NT303 Insert
- For 3/8" or 1/2" (10 or 12 mm) Glass
- With or Without Locks
- 2-3/4" (70 mm) Pivot Setback
- Use Monolithic Tempered Glass

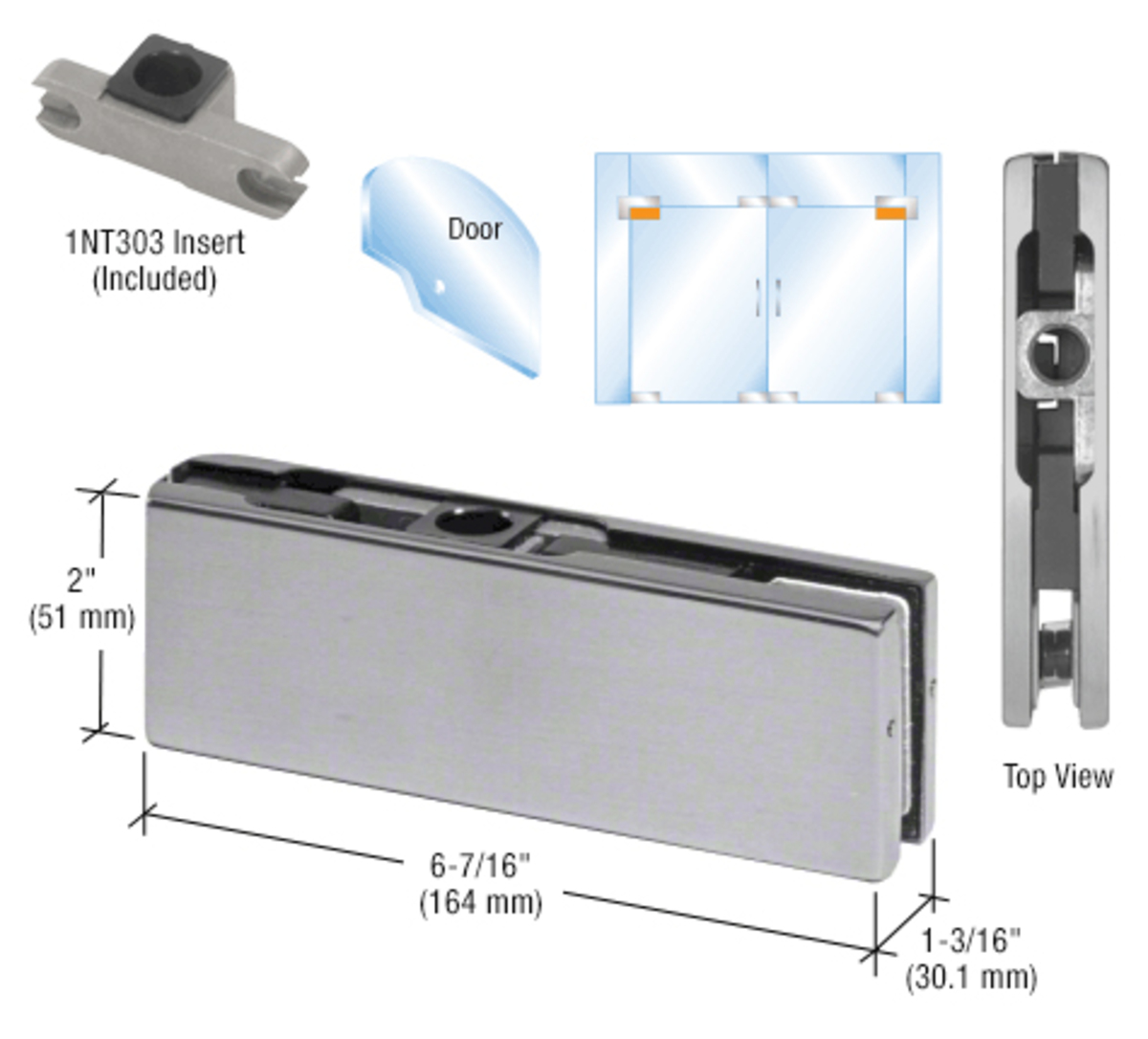

CRL Top Gate Patch Fittings are used with all three of our gate and door pivots. It fits in the upper corner of the gate's glass panel, and requires a hole and cut-out in the glass. Available in brushed stainless steel finish, it comes complete with instructions and a glass cut-out template.
The following guidelines are to be used when making a door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Weight: 194 lbs. (88 kg)
Maximum Width: 42" (1.07 m)
If the door exceeds any of these limitations, full door rails should be used.
GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch
COMES WITH:
Template and Instructions
Do Not Use With:
PH42L, PH42R, PH43L or PH43R Transom Patch Fittings. They Require European Door Patch Fitting PH21A.
Product Warning:
These fittings are not for use with Laminated Glass.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Ship via: No UPS - Common Carrier Only
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Height: 2 in. (51 mm)
Insert Type: 1NT303
Length: 6-7/16 in. (164 mm)
Maximum Door Height: 102 in. (2591 mm)
Maximum Panel Weight: 194 lbs. (88 kg)
Maximum Width: 42 in. (1067 mm)
Pivot Setback: 2-3/4
Shipping Limitations: None
Type: Top
With Insert: Yes
