C.R. Laurence PH20ADU Dark Bronze Top Door Patch Fitting with 1NT303 Insert is designed for use with 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass, providing a robust solution for your door and gate installations. This versatile fitting can be used with or without locks, offering flexibility based on your project requirements. With a pivot setback of 2-3/4" (70 mm), it ensures a secure and stable operation for doors up to a maximum height of 102" (2.59 m), a weight limit of 194 lbs. (88 kg), and a width of 42" (1.07 m). Installation is straightforward, thanks to the included template and instructions, which guide you through the necessary glass fabrication, including a 3/4" (19 mm) diameter hole and corner notch. The dark bronze anodized finish adds a contemporary touch, making it an attractive choice for modern architectural designs. Please note, this fitting is not compatible with laminated glass and should not be used with specific transom patch fittings. For a reliable, high-quality solution in your architectural projects, the C.R. Laurence PH20ADU is an excellent choice that combines functionality with aesthetic appeal.

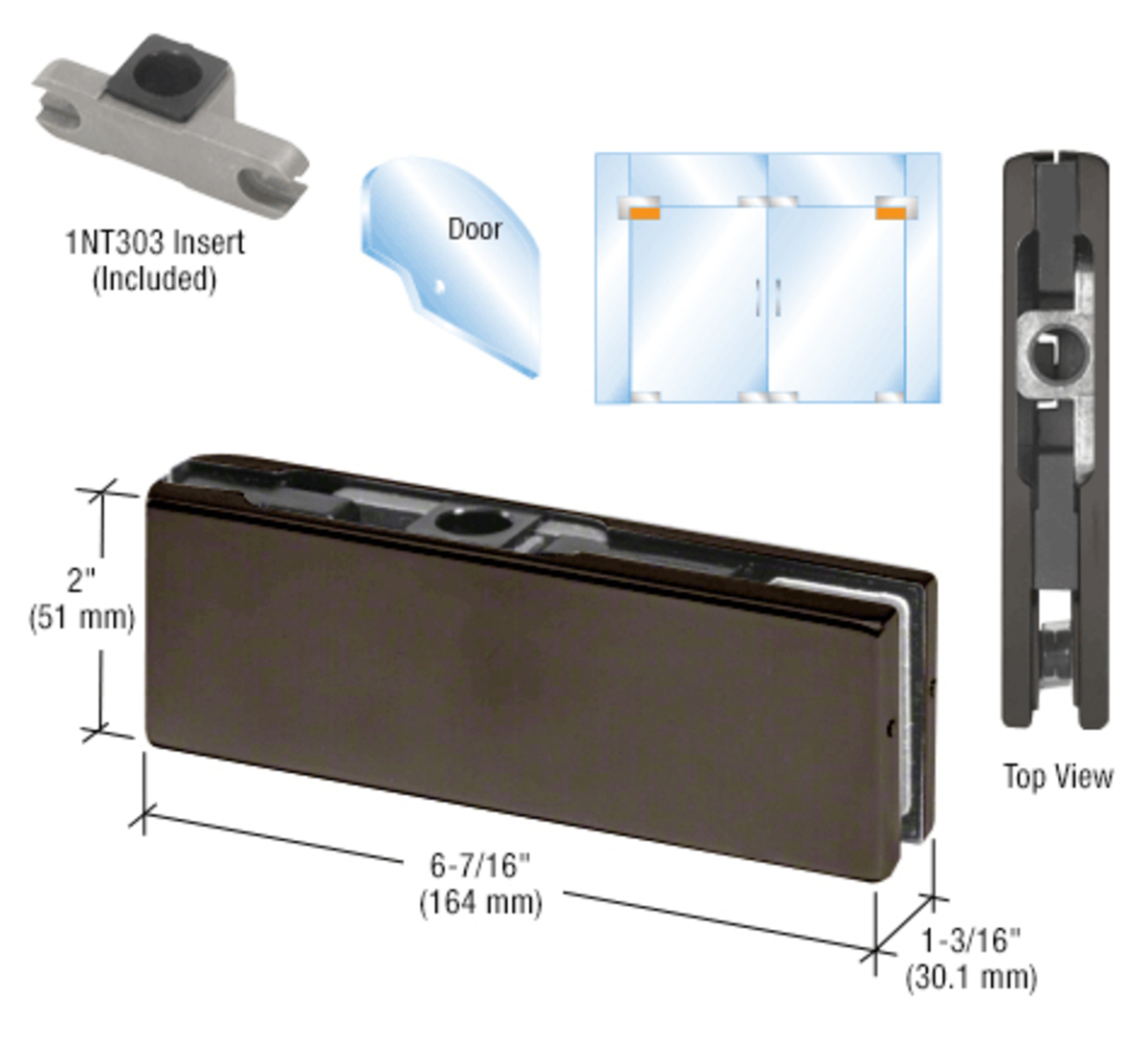

Dark Bronze Top Door Patch Fitting with 1NT303 Insert
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Ship via: No UPS - Common Carrier Only
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Black Bronze Anodized
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Height: 2 in. (51 mm)
Insert Type: 1NT303
Length: 6-7/16 in. (164 mm)
Maximum Door Height: 102 in. (2591 mm)
Maximum Panel Weight: 194 lbs. (88 kg)
Maximum Width: 42 in. (1067 mm)
Pivot Setback: 2-3/4
Shipping Limitations: None
Type: Top
With Insert: Yes
