CRL PH20APS Polished Stainless Steel Door Patch Fitting with 1NT303 Insert

Your Price: $49.69

Retail Price:$59.48

Your Savings:$9.79(16%)

The CRL PH20APS Polished Stainless Top Door Patch Fitting supports 3/8" or 1/2" glass, ideal for durable, stylish installations.

Part Number : CRL_PH20APS

Availability: 738 In Stock

Quantity

Description

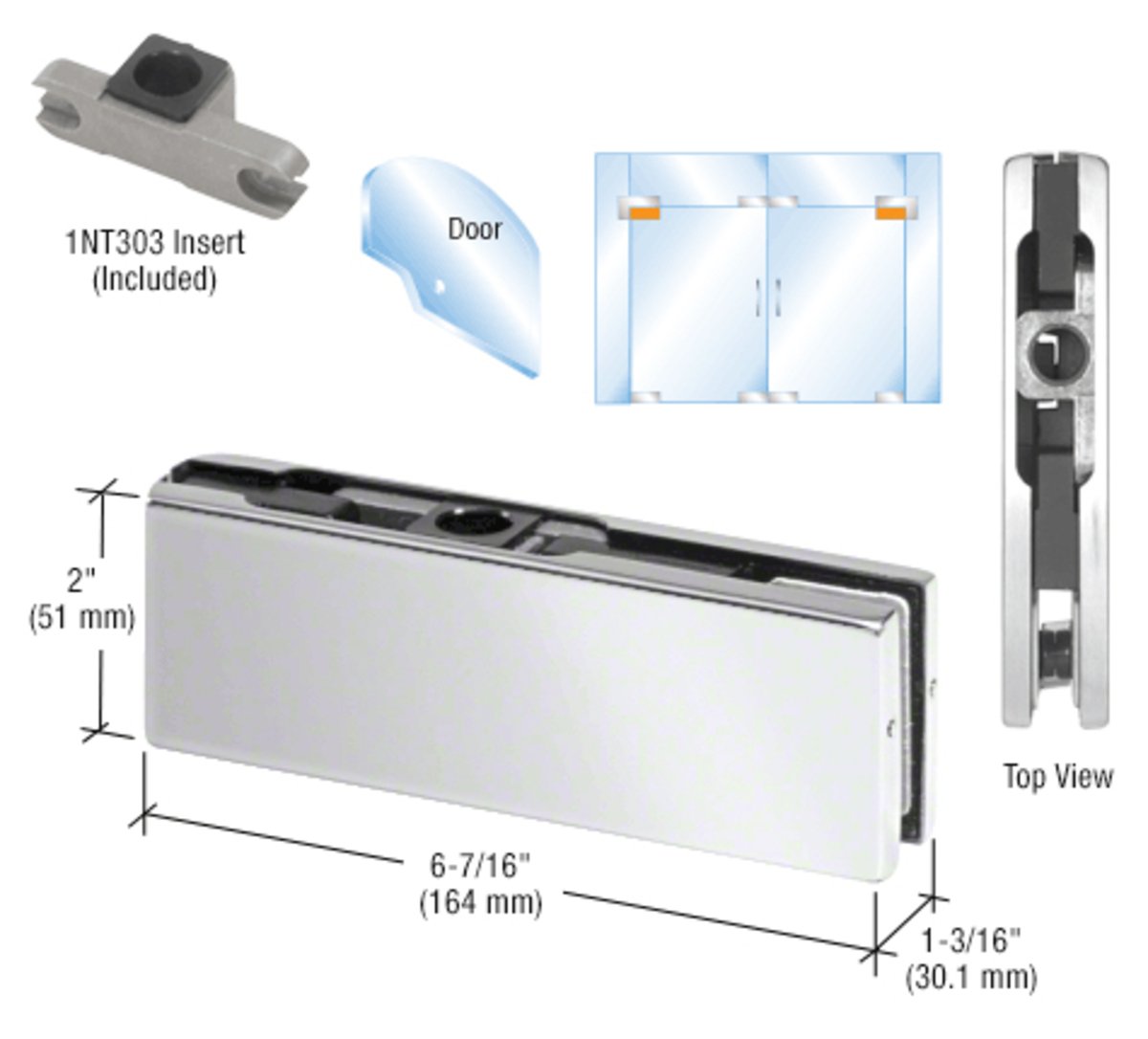

CRL PH20APS Polished Stainless Steel Door Patch Fitting with 1NT303 Insert

C.R. Laurence PH20APS Polished Stainless Top Door Patch Fitting with 1NT303 Insert offers a robust solution for glass doors, ensuring a blend of durability and sleek design. Engineered for use with 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass, this patch fitting is versatile enough to accommodate doors with or without locks, providing flexibility for various applications. The fitting features a 2-3/4" (70 mm) pivot setback, making it suitable for installation in the upper corner of your glass panel. To facilitate seamless integration, it comes complete with a glass cut-out template and installation instructions, simplifying the fabrication process. This fitting supports a maximum door height of 102" (2.59 m), a panel weight of up to 194 lbs. (88 kg), and a width of 42" (1.07 m), making it ideal for larger glass doors. Please note that glass fabrication is required, with a 3/4" (19 mm) diameter hole and corner notch necessary for proper installation. Additionally, the PH20APS is not compatible with laminated glass and should not be used with specific transom patch fittings. Elevate your architectural design with this reliable and stylish patch fitting from C.R. Laurence.

Polished Stainless Top Door Patch Fitting with 1NT303 Insert

For 3/8" or 1/2" (10 or 12 mm) Glass
With or Without Locks
2-3/4" (70 mm) Pivot Setback
Use Monolithic Tempered Glass

CRL Top Gate Patch Fittings are used with all three of our gate and door pivots. It fits in the upper corner of the gate's glass panel, and requires a hole and cut-out in the glass. Available in brushed stainless steel finish, it comes complete with instructions and a glass cut-out template.

The following guidelines are to be used when making a door using this hardware:

Maximum Height: 102" (2.59 m)
Maximum Weight: 194 lbs. (88 kg)
Maximum Width: 42" (1.07 m)

If the door exceeds any of these limitations, full door rails should be used.

GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch

COMES WITH:

Template and Instructions

Do Not Use With:
PH42L, PH42R, PH43L or PH43R Transom Patch Fittings. They Require European Door Patch Fitting PH21A.

Product Warning:

These fittings are not for use with Laminated Glass.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Attributes

Ship via: No UPS - Common Carrier Only

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Finish/ Color:: Polished Stainless Steel

Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)

Height: 2 in. (51 mm)

Insert Type: 1NT303

Length: 6-7/16 in. (164 mm)

Maximum Door Height: 102 in. (2591 mm)

Maximum Panel Weight: 194 lbs. (88 kg)

Maximum Width: 42 in. (1067 mm)

Pivot Setback: 2-3/4

Shipping Limitations: None

Type: Top

With Insert: Yes
