CRL PH20ASB Satin Brass Top Door Patch Fitting with 1NT303 InsertC.R. Laurence PH20ASB Satin Brass Top Door Patch Fitting with 1NT303 Insert is engineered for durability and style in glass door applications. Suitable for 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass, this fitting ensures a secure and elegant solution for your door systems. With the option to include locks, it adapts seamlessly to various security needs. Featuring a 2-3/4" (70 mm) pivot setback, the PH20ASB is designed to accommodate doors with a maximum height of 102" (2.59 m), a weight capacity of 194 lbs. (88 kg), and a width of up to 42" (1.07 m). For those larger projects, full door rails are recommended. This top gate patch fitting requires precise glass fabrication, specifically a 3/4" (19 mm) diameter hole and corner notch, making installation straightforward with the included template and instructions. It is important to note that this fitting is not compatible with laminated glass and should not be used with specific transom patch fittings. The satin brass finish adds a touch of sophistication to any setting, though users should be aware of the potential for oxidation over time. Trust C.R. Laurence for quality and performance in your architectural glass applications.

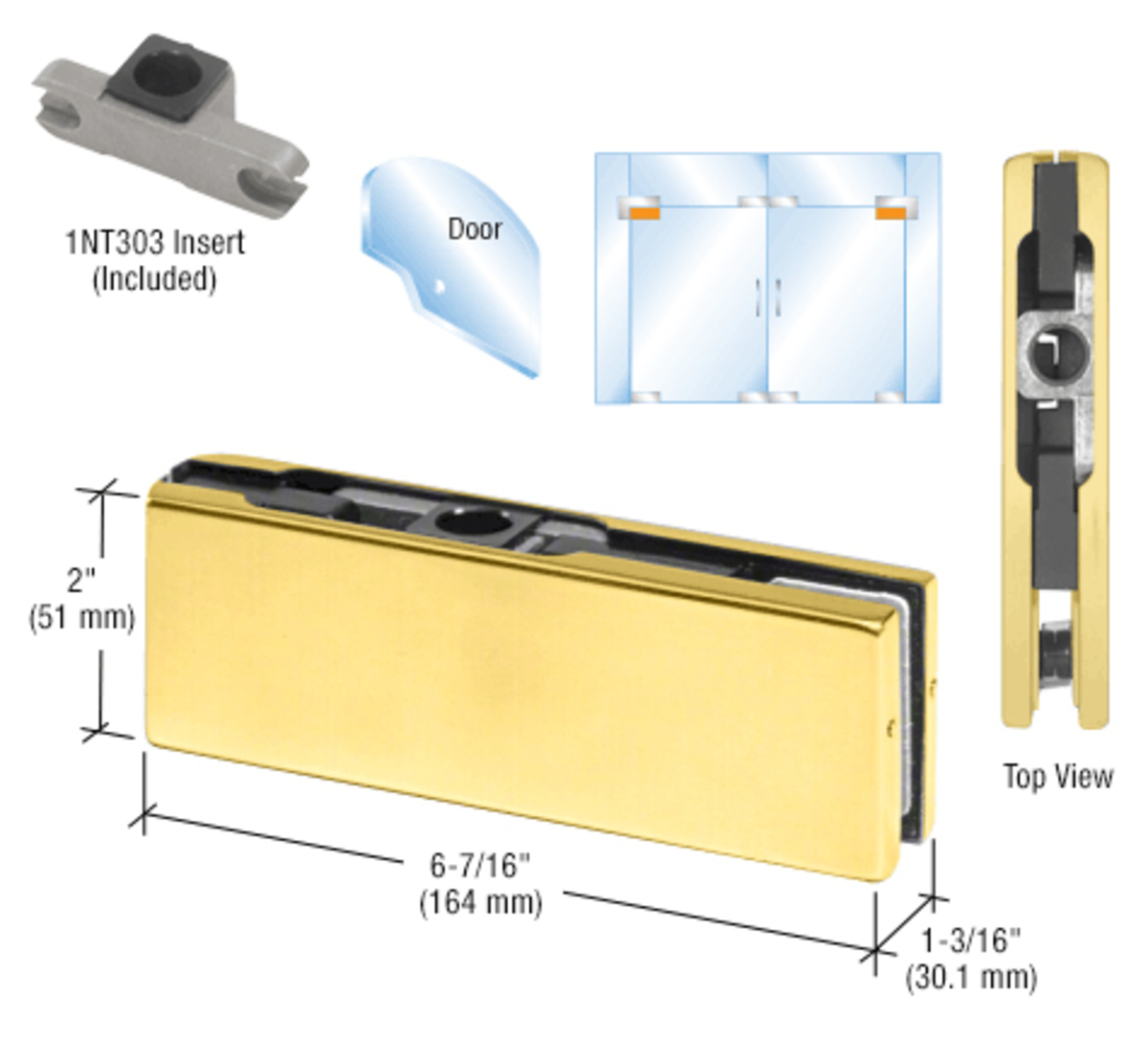

Satin Brass Top Door Patch Fitting with 1NT303 Insert
- For 3/8" or 1/2" (10 or 12 mm) Glass
- With or Without Locks
- 2-3/4" (70 mm) Pivot Setback
- Use Monolithic Tempered Glass
CRL Top Gate Patch Fittings are used with all three of our gate and door pivots. It fits in the upper corner of the gate's glass panel, and requires a hole and cut-out in the glass. Available in brushed stainless steel finish, it comes complete with instructions and a glass cut-out template.
The following guidelines are to be used when making a door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Weight: 194 lbs. (88 kg)
Maximum Width: 42" (1.07 m)
If the door exceeds any of these limitations, full door rails should be used.
GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch
COMES WITH:
Template and Instructions
Do Not Use With:
PH42L, PH42R, PH43L or PH43R Transom Patch Fittings. They Require European Door Patch Fitting PH21A.
Product Warning:
These fittings are not for use with Laminated Glass.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
Attributes
Ship via: No UPS - Common Carrier Only
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Satin Brass
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Height: 2 in. (51 mm)
Insert Type: 1NT303
Length: 6-7/16 in. (164 mm)
Maximum Door Height: 102 in. (2591 mm)
Maximum Panel Weight: 194 lbs. (88 kg)
Maximum Width: 42 in. (1067 mm)
Pivot Setback: 2-3/4
Shipping Limitations: None
Type: Top
With Insert: Yes
