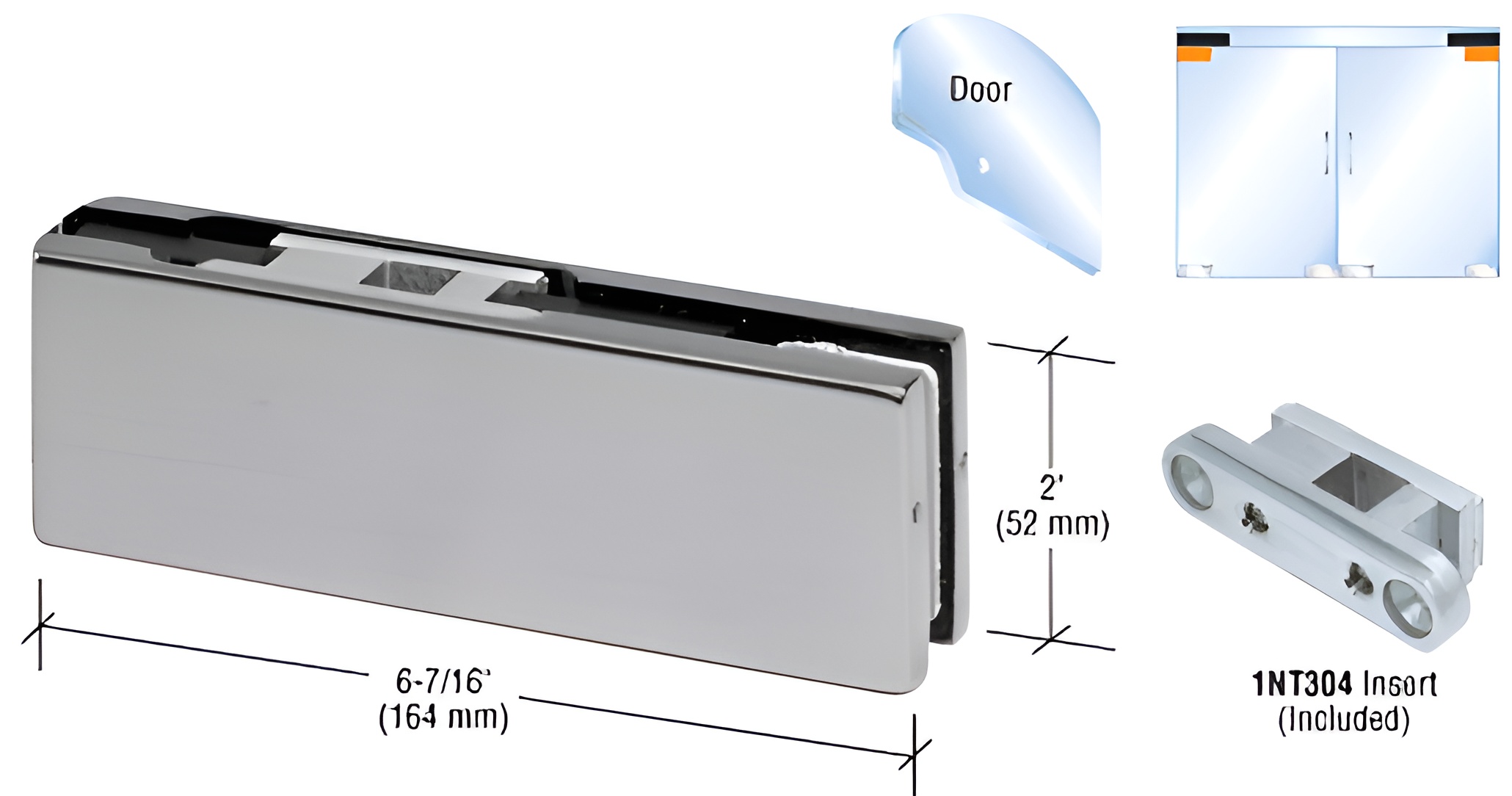

C.R. Laurence PH20BBS Brushed Stainless Top Door Patch Fitting with 1NT304 Insert is engineered for durability and versatility, accommodating both 3/8" and 1/2" (10 mm or 12 mm) tempered glass. With a pivot setback of 2-3/4" (70 mm), this fitting is specifically designed for use with overhead concealed door closers, ensuring a seamless integration into your entrance system. The PH20BBS features an insert type of 1NT304, compatible with overhead closers that have a 9/16" (14 mm) square and 3/4" (19 mm) long spindle. This product includes gaskets that facilitate its use with varying glass thicknesses, making it a flexible choice for different installations. For optimal performance, it requires a 3/4" (19 mm) diameter hole and corner notch in the glass fabrication. When using this hardware for a 1/2" glass door, adhere to the guidelines: a maximum height of 102" (2.59 m), maximum weight of 194 lbs. (80 kg), and a maximum width of 42" (1.09 m). Exceeding these specifications necessitates the use of full door rails. Crafted from brushed stainless steel, this fitting not only offers a sleek finish but also requires periodic maintenance to preserve its appearance.
Brushed Stainless Top Door Patch Fitting With 1NT304 Insert
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Height: 2 in. (51 mm)
Insert Type: 1NT304
Length: 6-7/16 in. (164 mm)
Pivot Setback: 2-3/4
Shipping Limitations: None
Type: Top
With Insert: Yes
