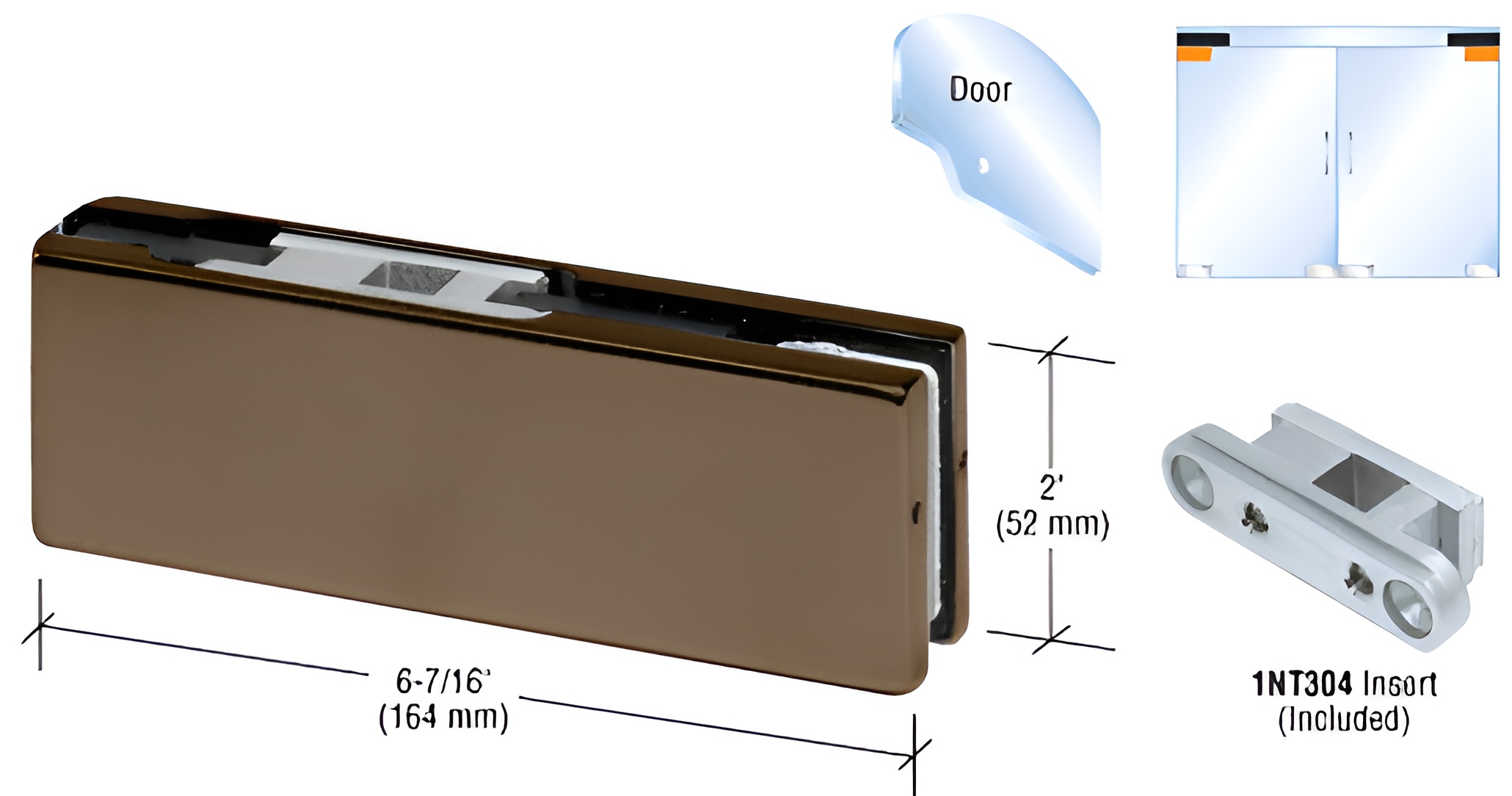

C.R. Laurence PH20BDU Dark Bronze Top Door Patch Fitting with 1NT304 Insert is expertly designed for modern architectural applications, providing a sleek and functional solution for glass doors. This patch fitting accommodates both 3/8" and 1/2" (10 or 12 mm) monolithic tempered glass, ensuring versatility in installation. Featuring a 2-3/4" (70 mm) pivot setback, it is specifically intended for use with overhead concealed door closers that have a 9/16" (14 mm) square and 3/4" (19 mm) long spindle. The PH20BDU includes the 1NT304 insert, streamlining the installation process and enhancing the overall aesthetic of your glass door systems. It is important to note that proper glass fabrication requires a 3/4" (19 mm) diameter hole and corner notch for optimal performance. This fitting is crafted in a striking black bronze anodized finish, making it suitable for various design preferences. For optimal safety and performance, it is crucial to adhere to the specified guidelines: a maximum door height of 102" (2.59 m), maximum weight of 194 lbs. (80 kg), and a maximum width of 42" (1.09 m). Choose the C.R. Laurence PH20BDU for a reliable and stylish door solution that meets rigorous architectural standards.
Dark Bronze Top Door Patch Fitting with 1NT304 Insert
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Black Bronze Anodized
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Height: 2 in. (51 mm)
Insert Type: 1NT304
Length: 6-7/16 in. (164 mm)
Pivot Setback: 2-3/4
Shipping Limitations: None
Type: Top
With Insert: Yes
