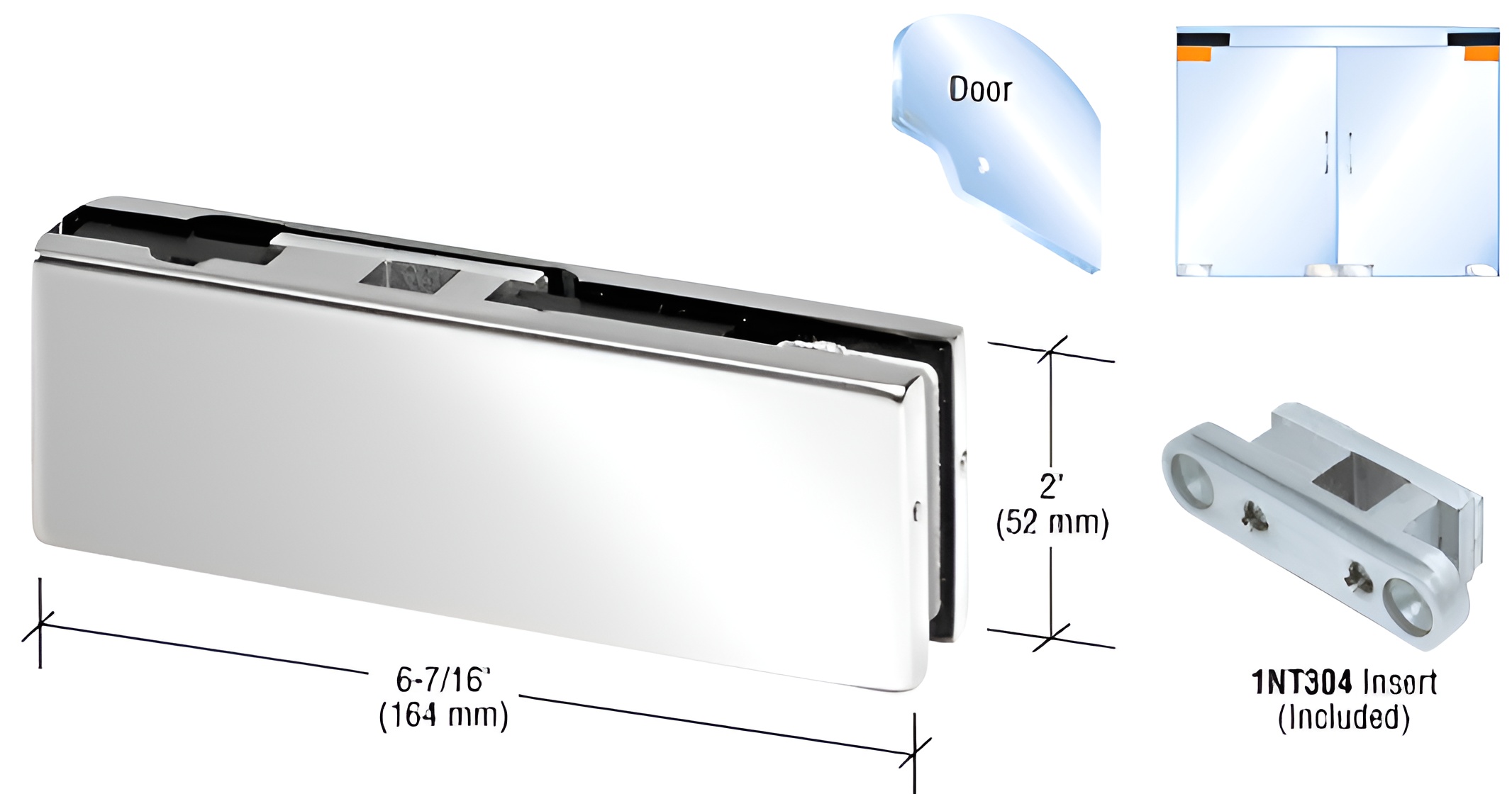

C.R. Laurence PH20BPS Polished Stainless Top Door Patch Fitting with 1NT304 Insert is an essential component for your glass door system, designed for both functionality and aesthetic appeal. This fitting accommodates 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass, providing a secure and stylish solution for overhead concealed door closers. With a pivot setback of 2-3/4" (70 mm), it ensures smooth operation while maintaining the sleek design of your entrance. The PH20BPS comes equipped with the 1NT304 insert, compatible with door closers featuring a 9/16" (14 mm) square and 3/4" (19 mm) long spindle. Finished in polished stainless steel, this fitting not only resists corrosion but also adds a modern touch to any commercial or residential space. For optimal performance, glass fabrication requires a 3/4" (19 mm) diameter hole and a corner notch. It is important to note that laminated glass is not suitable for use with this fitting. Adhering to the provided guidelines, this fitting supports maximum door heights of 102" (2.59 m), weights of 194 lbs. (80 kg), and widths of 42" (1.09 m). Ensure your installation meets these specifications for safety and functionality.
Polished Stainless Top Door Patch Fitting with 1NT304 Insert
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Polished Stainless Steel
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Height: 2 in. (51 mm)
Insert Type: 1NT304
Length: 6-7/16 in. (164 mm)
Pivot Setback: 2-3/4
Shipping Limitations: None
Type: Top
With Insert: Yes
