CRL PH20BSB Satin Brass Top Door Patch Fitting with 1NT304 Insert

Your Price: $316.65

Retail Price:$379.08

Your Savings:$62.43(16%)

The CRL Satin Brass Top Door Patch Fitting accommodates 3/8" or 1/2" glass, ideal for overhead concealed door closers.

Part Number : CRL_PH20BSB

Availability: 7 In Stock

Quantity

Description

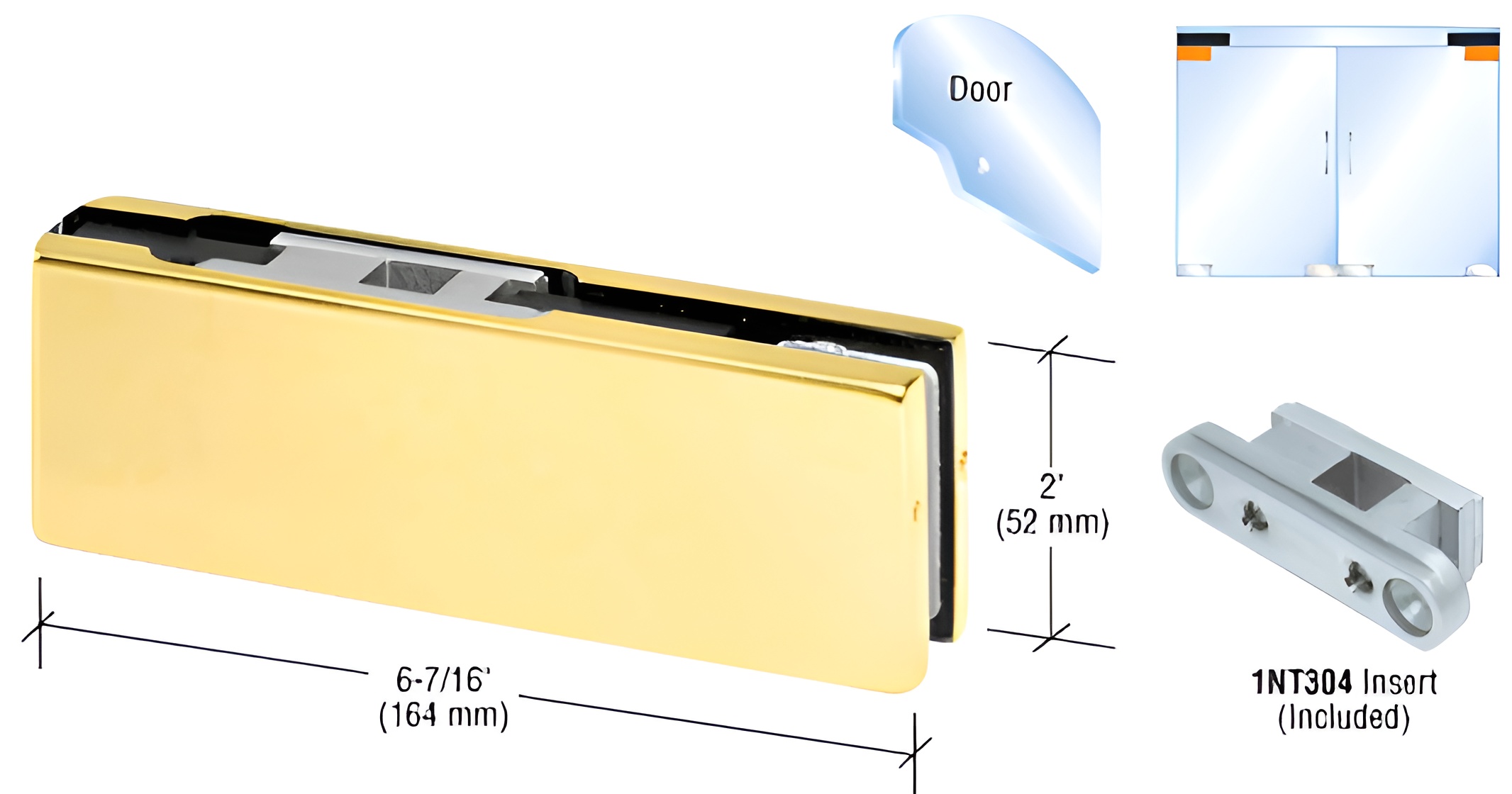

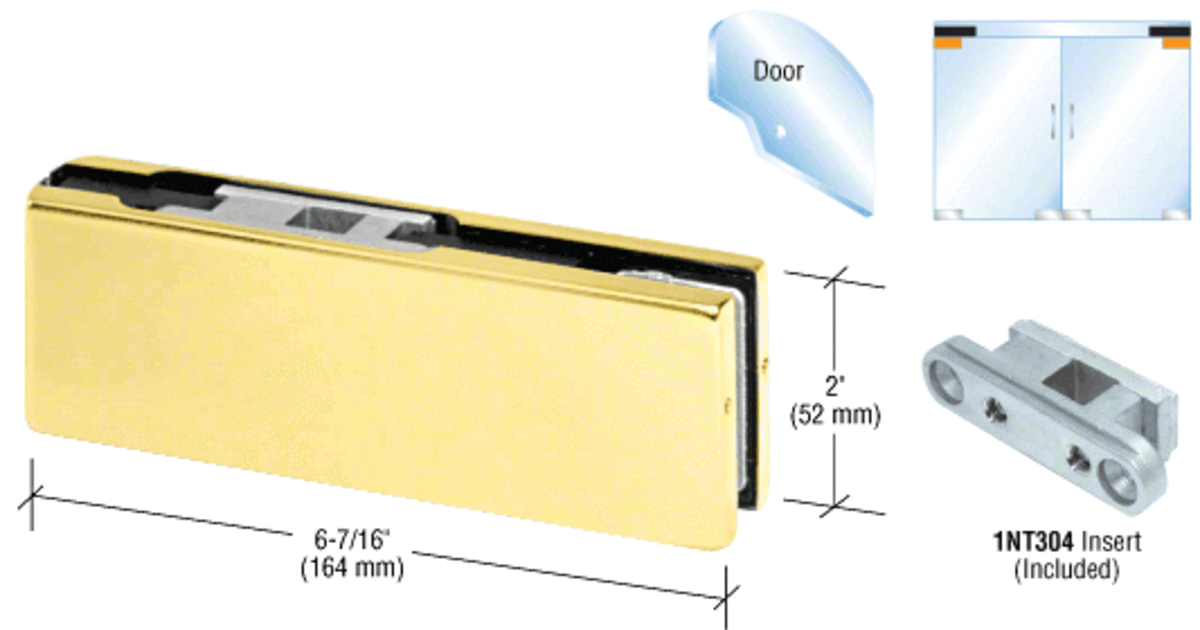

CRL PH20BSB Satin Brass Top Door Patch Fitting with 1NT304 Insert

C.R. Laurence PH20BSB Satin Brass Top Door Patch Fitting with 1NT304 Insert is designed for seamless integration with overhead concealed door closers, showcasing a sophisticated satin brass finish that complements modern architectural aesthetics. Suitable for both 3/8" and 1/2" (10 or 12 mm) monolithic tempered glass, this fitting ensures durability and reliability in high-traffic environments. With a pivot setback of 2-3/4" (70 mm), the PH20BSB provides excellent support while allowing for smooth door operation. It includes the 1NT304 insert specifically tailored for closers with a 9/16" (14 mm) square and 3/4" (19 mm) long spindle. When fabricating doors, a 3/4" (19 mm) diameter hole and corner notch are required. This patch fitting supports doors up to 102" (2.59 m) in height, weighing a maximum of 194 lbs. (80 kg) and measuring up to 42" (1.09 m) wide, making it an ideal choice for both residential and commercial applications. Please note that these fittings are not suitable for laminated glass and are designed for optimal performance with appropriate glass specifications. Additionally, while the brass finish is durable, it may develop a tarnished appearance over time due to oxidation, so regular maintenance is recommended.

Satin Brass Top Door Patch Fitting with 1NT304 Insert

For 3/8" or 1/2" (10 or 12 mm) Glass
2-3/4" (70 mm) Pivot Setback
For Use with Overhead Concealed Door Closers
Use Monolithic Tempered Glass

The CRL Top Door Patch Fitting includes the 1NT304 Insert for use with our Overhead Concealed Door Closers that have a 9/16" (14 mm) square and 3/4" (19 mm) long spindle. Finished covers are available in five standard finishes. Gaskets are supplied that allow this Patch Fitting to be used with either 3/8" or 1/2" (10 or 12 mm) Glass.

Glass Fabrication Required: One 3/4" (19 mm) diameter hole and corner notch.

Product Warning:

These fittings are not for use with Laminated Glass.

The following guidelines are to be used when making a 1/2" glass door using this hardware:

Maximum Height: 102" (2.59 m)
Maximum Weight: 194 Lbs. (80 kg)
Maximum Width: 42" (1.09 m)

If the door exceeds any of these limitations, full door rails should be used.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Brass Finish Advisory:

Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.

Attributes

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Finish/ Color:: Satin Brass

Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)

Height: 2 in. (51 mm)

Insert Type: 1NT304

Length: 6-7/16 in. (164 mm)

Pivot Setback: 2-3/4

Shipping Limitations: None

Type: Top

With Insert: Yes
