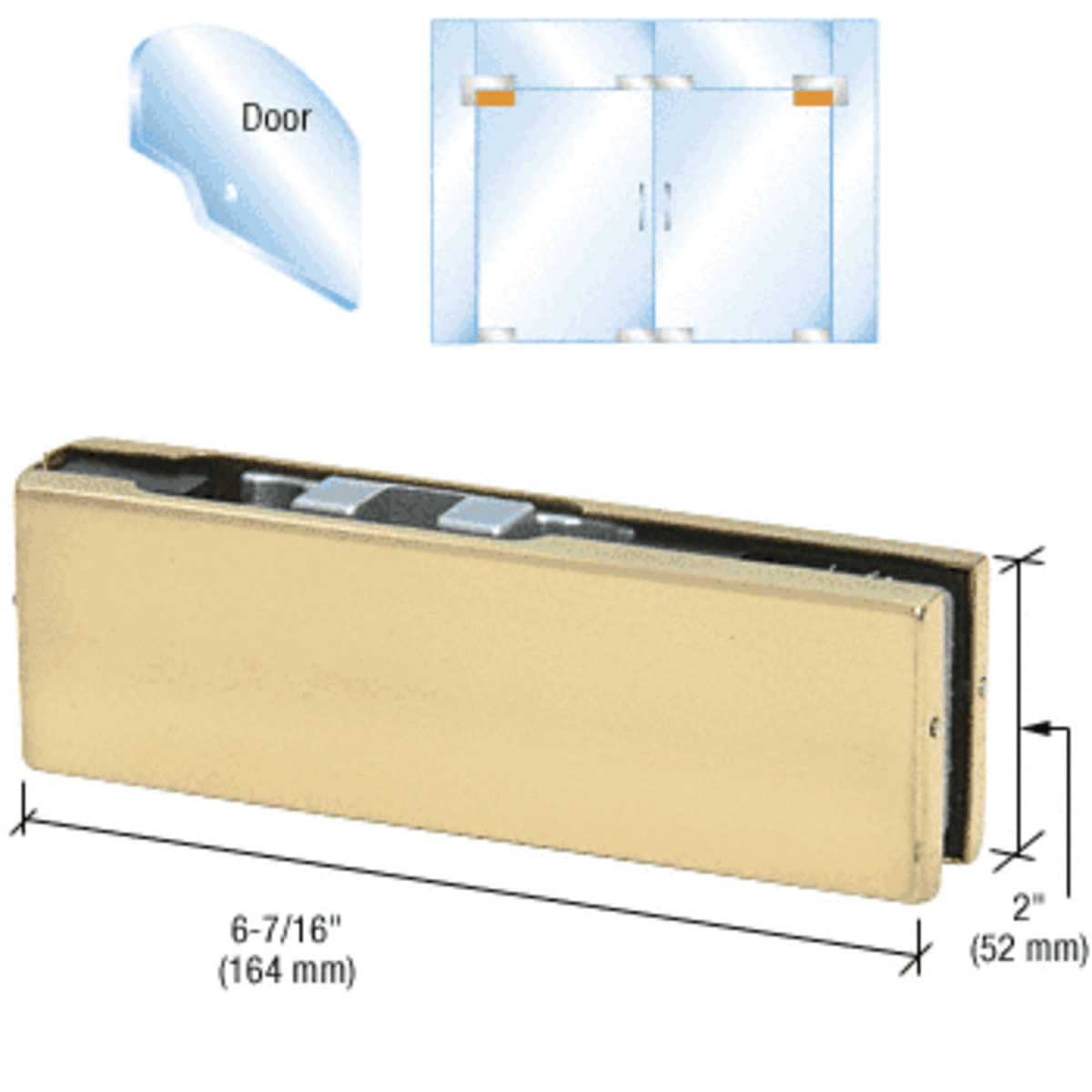

C.R. Laurence PH20CBR Brass Adjustable North American Top Door Patch Fitting is designed for precision and adaptability in modern door applications. Featuring an adjustable pivot insert, this fitting allows for three degrees of movement, ensuring perfect door alignment with the jamb when closed. It is compatible with monolithic tempered glass, accommodating both 3/8" and 1/2" thicknesses (10 or 12 mm), making it versatile for various installations. The fitting has a pivot setback of 2-3/4" (70 mm) and supports impressive dimensions, allowing for a maximum door height of 102" (2.59 m), a weight limit of 194 lbs. (88 kg), and a maximum width of 42" (1.07 m). For doors exceeding these specifications, full door rails should be considered. Included with the fitting are a template and instructions for easy installation, while finished covers are available in five standard finishes, adding a touch of elegance to any design. Note that the PH20CBR should not be used with European 2-9/16" (65 mm) pivot setback overhead concealed door closers, which require the PH21C model. Embrace the durability and aesthetic appeal of polished brass, keeping in mind that brass finishes are prone to oxidation over time.
Brass Adjustable North American Top Door Patch Fitting
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Polished Brass
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback: 2-3/4
Series: North American
Shipping Limitations: None
Type: Top
With Insert: Yes
