C.R. Laurence PH20CMBL Matte Black Adjustable North American Top Door Patch Fitting offers a sleek and functional solution for your glass door installations. This innovative fitting features an adjustable pivot insert that allows for three degrees of movement, ensuring precise door alignment with the jamb when closed. Designed for use with monolithic tempered glass, the PH20CMBL accommodates both 3/8" and 1/2" (10 or 12 mm) glass thicknesses, making it versatile for various applications. The fitting includes a 2-3/4" (70 mm) pivot setback, suitable for doors up to 102" (2.59 m) in height and 42" (1.07 m) in width, with a maximum weight capacity of 194 lbs. (88 kg). To ensure optimal performance, glass fabrication requires a single 3/4" (19 mm) diameter hole and a corner notch. Each unit is supplied with a template and comprehensive instructions for easy installation. Finished covers are available in five standard finishes, allowing you to match the fitting to your design aesthetic. Please note that this fitting is not compatible with laminated glass and should not be used with European 2-9/16" (65 mm) pivot setback overhead concealed door closers. Choose the C.R. Laurence PH20CMBL for a reliable and stylish door solution.

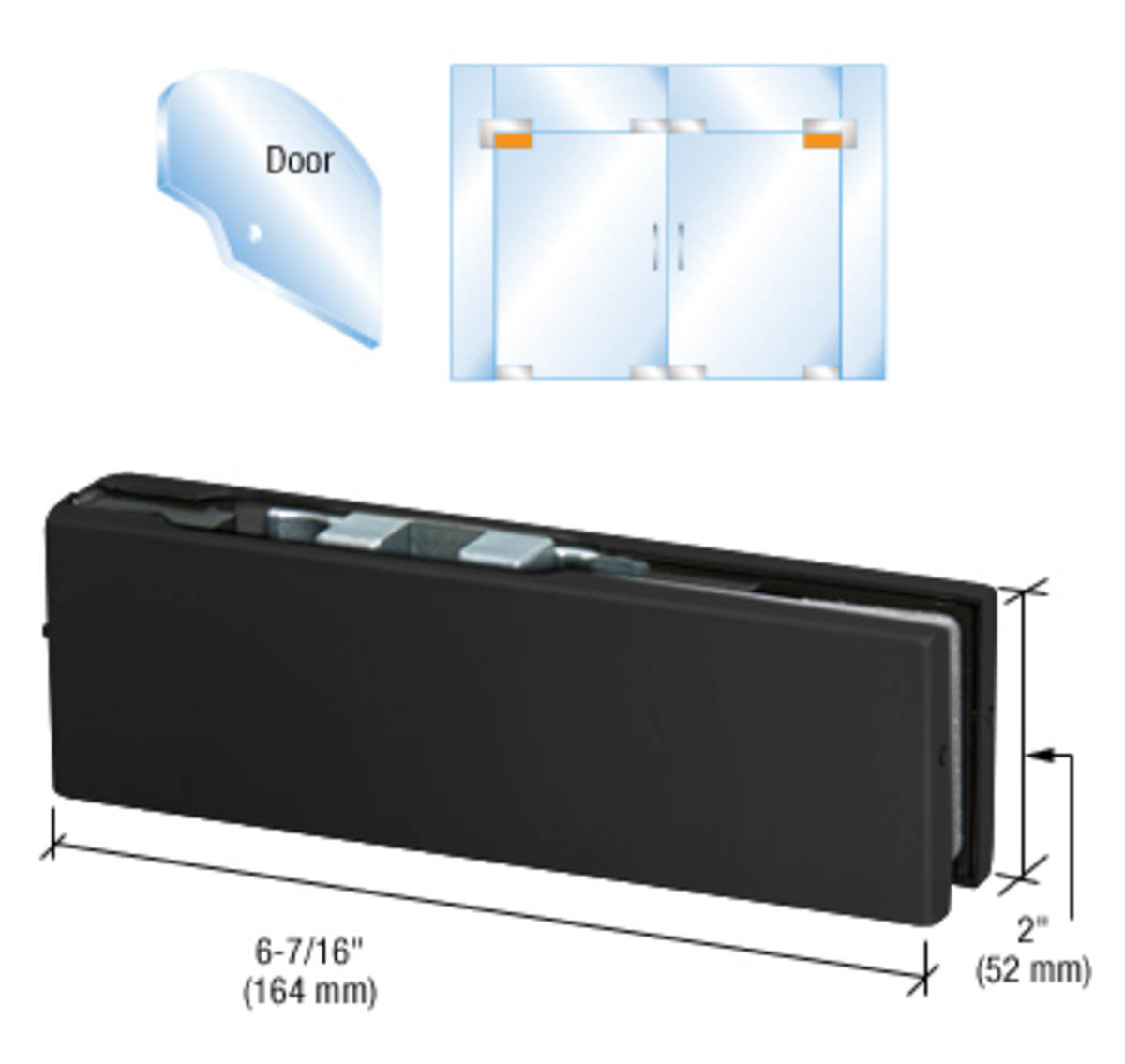

Matte Black Adjustable North American Top Door Patch Fitting
The CRL Adjustable Top Door Patch Fitting includes an adjustable pivot insert that allows for 3 degrees of movement for proper alignment of the door to the jamb when in the closed position. For use with our CRL9970 Overhead Concealed Door Closer. Finished covers are available in five standard finishes. Gaskets are supplied that allow this Patch Fitting to be used with either 3/8" or 1/2" (10 or 12 mm) Glass.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Matte Black
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback: 2-3/4
Series: North American
Shipping Limitations: None
Type: Top
With Insert: Yes
