CRL PH20CSB Satin Brass Adjustable North American Door Patch FittingC.R. Laurence PH20CSB Satin Brass Adjustable North American Top Door Patch Fitting offers a blend of functionality and style, making it an ideal choice for modern glass door installations. This fitting features an adjustable pivot insert that allows for three degrees of movement, ensuring precise door alignment with the jamb in the closed position. Designed for use with monolithic tempered glass, it accommodates both 3/8" and 1/2" (10 or 12 mm) glass thicknesses, providing versatility for a range of applications. With a pivot setback of 2-3/4" (70 mm), the PH20CSB supports maximum door dimensions of 102" (2.59 m) in height, 42" (1.07 m) in width, and a weight capacity of 194 lbs. (88 kg). If your door exceeds these specifications, consider using full door rails for added support. Included with the fitting are templates and instructions to facilitate installation. Additionally, the satin brass finish brings an elegant touch, though it's important to note that brass may tarnish over time. This product is not suitable for laminated glass and should be paired with the CRL9970 Overhead Concealed Door Closer for optimal performance. Choose the PH20CSB for a reliable, stylish solution in your architectural projects.

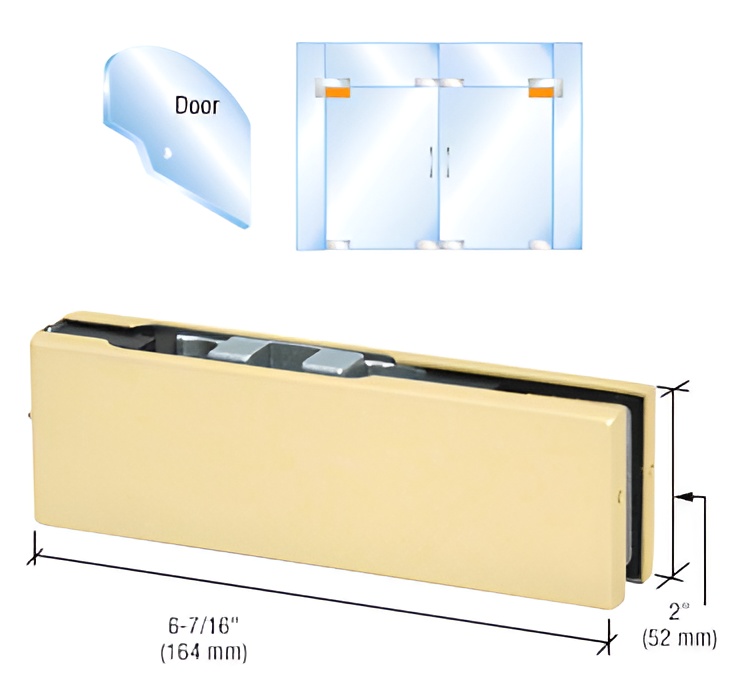

Satin Brass Adjustable North American Top Door Patch Fitting
- Adjustable Pivot Insert Allows Three Degrees Movement for Proper Door Alignment
- 2-3/4" (70 mm) Pivot Setback
- For 3/8" or 1/2" (10 or 12 mm) Glass
- Use Monolithic Tempered Glass
The
CRL Adjustable Top Door Patch Fitting includes an adjustable pivot insert that allows for 3 degrees of movement for proper alignment of the door to the jamb when in the closed position. For use with our
CRL9970 Overhead Concealed Door Closer. Finished covers are available in five standard finishes. Gaskets are supplied that allow this Patch Fitting to be used with either 3/8" or 1/2" (10 or 12 mm) Glass.
The following guidelines are to be used when making a door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Weight: 194 Lbs. (88 kg)
Maximum Width: 42" (1.07 m)
If the door exceeds any of these limitations, full door rails should be used.
GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch
COMES WITH: Template and Instructions
DO NOT USE WITH:
European 2-9/16" (65 mm) Pivot Setback Overhead Concealed Door Closers. They Require European Door Patch Fitting PH21C.
Product Warning:
These fittings are not for use with Laminated Glass.
The following guidelines are to be used when making a 1/2" glass door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Height: 176 Lbs. (80 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limitations, full door rails should be used.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Satin Brass
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback: 2-3/4
Series: North American
Shipping Limitations: None
Type: Top
With Insert: Yes
