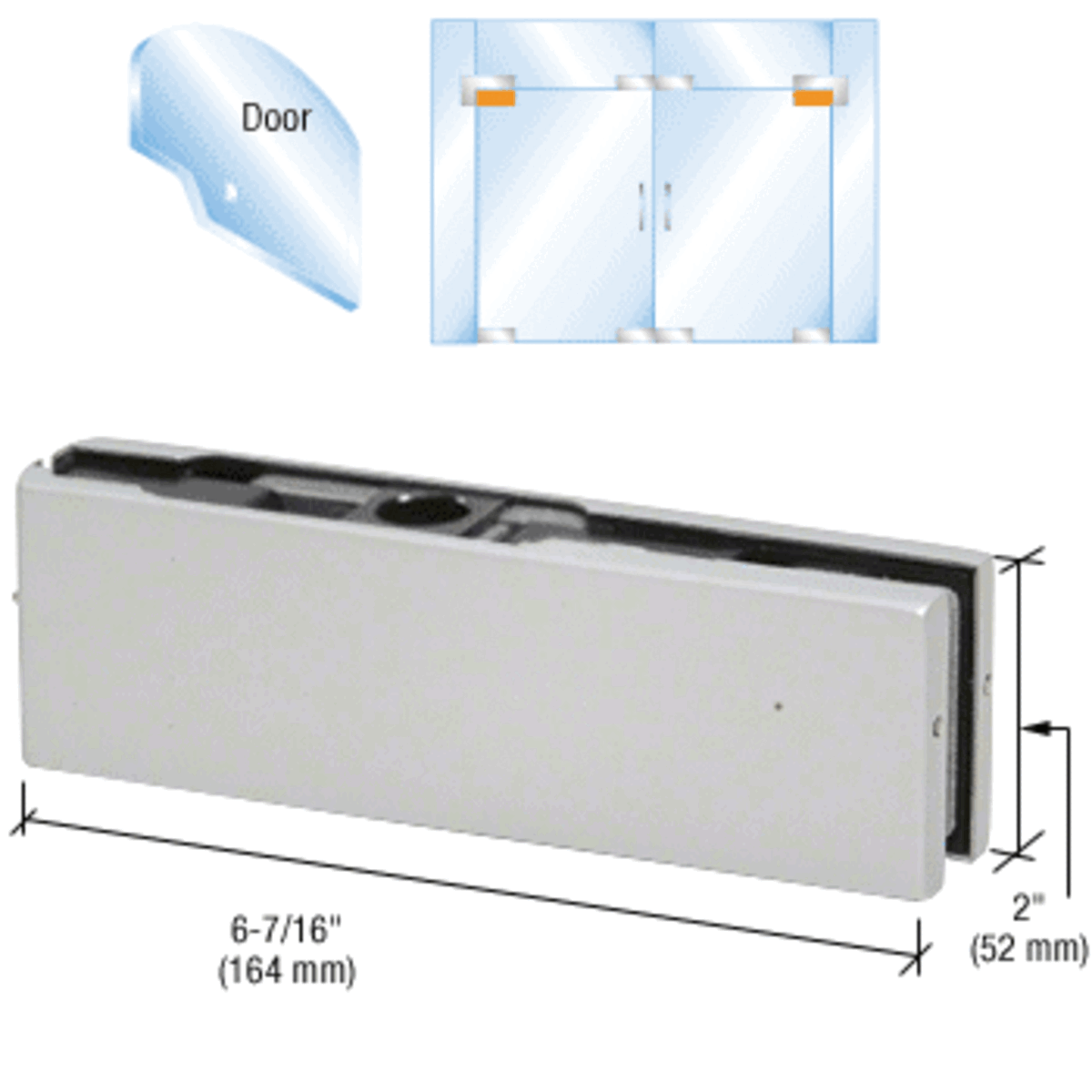

CRL PH21AA Satin Anodized European Top Door Patch Fitting w/ 1NT303 Insert

Your Price: $52.53

Retail Price:$62.88

Your Savings:$10.35(16%)

The CRL PH21AA Satin Anodized Top Door Patch Fitting offers durability and versatility for 3/8" or 1/2" glass applications.

Part Number : CRL_PH21AA

Availability: 390 In Stock

Quantity

Description

CRL PH21AA Satin Anodized European Top Door Patch Fitting w/ 1NT303 Insert

C.R. Laurence PH21AA Satin Anodized European Top Door Patch Fitting with 1NT303 Insert delivers exceptional performance and durability for modern glass door applications. Designed for 3/8" or 1/2" (10 or 12 mm) glass, this fitting features a robust high-density cast body that ensures stability and longevity. With a pivot setback of 2-9/16" (65 mm), it is perfectly suited for a variety of door configurations. This patch fitting comes equipped with the 1NT303 insert, compatible with several pivot systems including the CRL860 Top Walking Beam Pivot and the 1NT401 Surface Mount Top Pivot. The design allows for a maximum weight capacity of 176 lbs. (80 kg) and a maximum width of 43" (1.11 m), making it an excellent choice for heavy-duty applications. For optimal performance, a 3/4" (19 mm) diameter hole and corner notch are required during glass fabrication. The PH21AA is available in a sleek satin anodized finish and includes templates and instructions for straightforward installation. However, it is important to note that these fittings are not suitable for laminated glass. Enjoy a refined look and reliable functionality in your glass door systems with this top-quality patch fitting from C.R. Laurence.

Satin Anodized European Top Door Patch Fitting with 1NT303 Insert

2-9/16" (65 mm) Pivot Setback
High Density Cast Body
For 3/8" or 1/2" (10 or 12 mm) Glass

The CRL Top Door Patch Fitting includes the 1NT303 Insert for use with our CRL860 Top Walking Beam Pivot, 1NT401 Surface Mount Top Pivot, 1NT405 Threaded Top Pivot, or other 19/32" (15 mm) Diameter type pivots. Finished covers are available in four standard finishes. Gaskets are supplied that allow this Patch Fitting to be used with either 3/8" or 1/2" (10 or 12 mm) Glass.

The following guidelines are to be used when making a door using this hardware:
Maximum Weight: 176 Lbs. (80 kg)
Maximum Width: 43" (1.11 m)
If the door exceeds any of these limitations, full door rails should be used.

GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch

COMES WITH:
Template and Instructions

Product Warning:

These fittings are not for use with Laminated Glass.

The following guidelines are to be used when making a 1/2" glass door using this hardware:

Maximum Height: 102" (2.59 m)
Maximum Weight: 194 Lbs. (80 kg)
Maximum Width: 42" (1.09 m)

If the door exceeds any of these limitations, full door rails should be used.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Attributes

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Finish/ Color:: Satin Anodized

Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)

Height: 2 in. (51 mm)

Insert Type: 1NT303

Length: 6-7/16 in. (164 mm)

Pivot Setback: 2-9/16

Series: European

Shipping Limitations: None

Type: Top

With Insert: Yes
